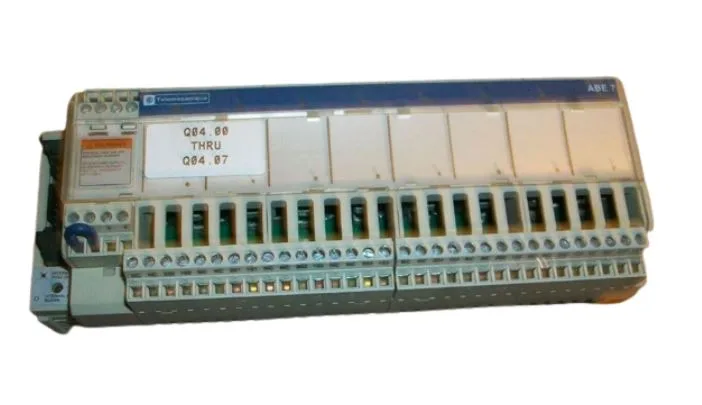

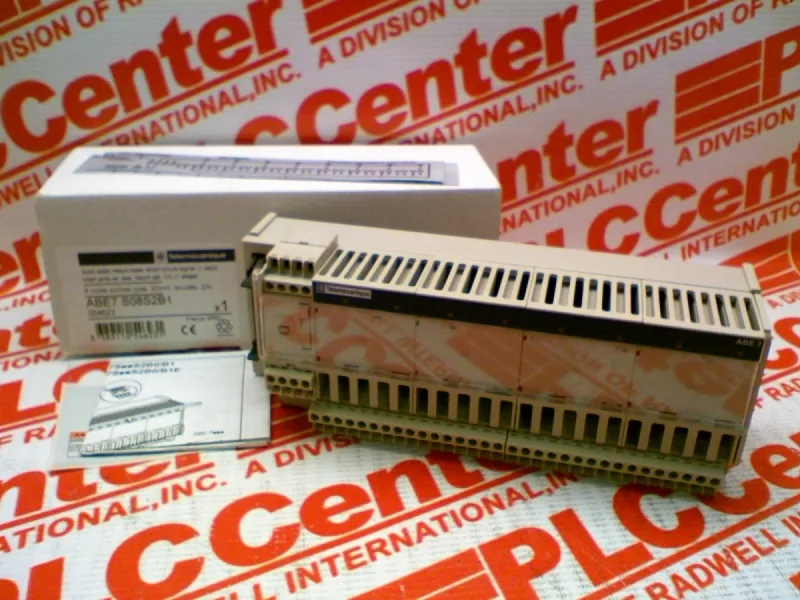

Schneider Electric Advantys Telefast ABE7-S08S2B1 sub-base, soldered solid state output relay, 8 outputs, 2 A per channel, 24 V supply, IP2X, DIN-rail or screw mount, discontinued.
| Parameter | Value |
|---|---|
| Range of product | Advantys Telefast ABE7 |
| Coil dropout voltage | 0.5 V (preactuator end) |
| Current min | 1 mA |
| Current_max | 10 A |
| Installation category | II conforming to IEC 60664-1 |
| Terminal_block_type | Removable |
| Number of terminal per channel | 2 |
| Shock | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Width | 206 |
| IP rating | IP2X conforming to IEC 60529 |
| Torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Parameter | Value |
|---|---|
| Fault_type | Short-circuit Overload |
| Type | Soldered solid state relay |
| Fixing_mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Frequency | < 0.5/LI² Hz |
| Package_type | PCE |
| Channels | 8 |
| Resistance | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Voltage | 3.4 |
| Fault indication | Yes |
| Response time | <= 0.1 ms from state 0 to 1 |
| Supply voltage | 24 |
| Switching current | 0.0004 |
| Storage temperature | -40...80 °C conforming to IEC 61131-2 |
| Protective treatment | TC |
| Isolation PLC (Operative part) | No |
| Main_product_or_component_type | Solid state output relay sub-base |
| Switchable inductive energy l (R) | <= 1700 (U.I) ms |
| Operating temperature | -5 |
| Maximum circuit breaker threshold max | 2.6 A |
The ABE7-S08S2B1 is a Schneider Advantys Telefast sub-base carrying eight soldered solid state relay outputs rated 2 A per channel, with a maximum continuous current of 10 A across the module.
Compared to the ABE7R16S111, which offers 16 relay outputs with 8 per common and 1 terminal per channel, the ABE7-S08S2B1 provides 8 solid state outputs with 2 terminals per channel — a lower channel count but with solid state switching and per-channel terminal access.
