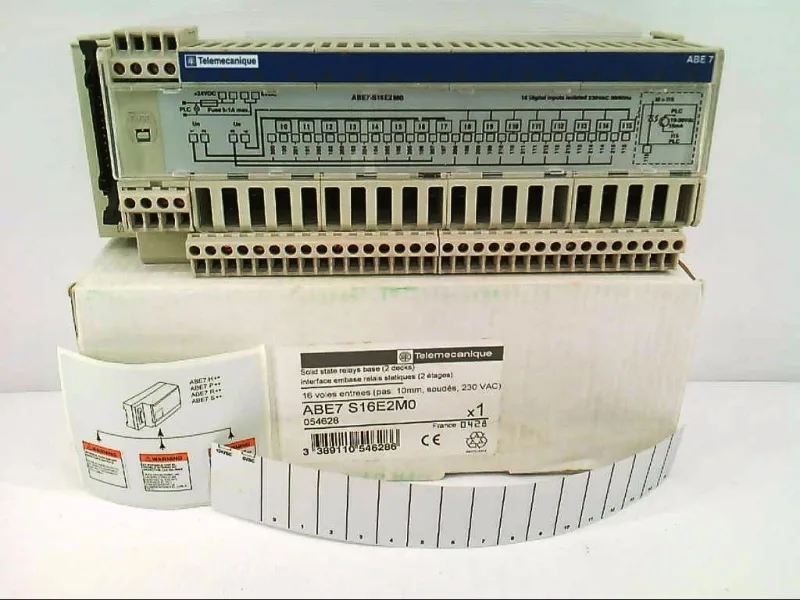

Schneider Electric ABE7-S16E2M0
MPNABE7-S16E2M0
ABE7-S16E2M0 - SOLDERED by TELEMECANIQUE
$159.22Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon ABE7 |
| Voltage withstand | 2.5 kV IEC 60947-1 |
| Voltage insulation | 2000 V |
| Current min | 1 mA for PLC end |
| Current_max | 15 mA PLC end) |
| Installation category | II IEC 60664-1 |
| Terminal_block_type | Removable |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.0001...0.002 in² (0.09...1.5 mm²) AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002...0.004 in² (0.14...2.5 mm²) AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002...0.004 in² (0.14...2.5 mm²) AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.0001...0.001 in² (0.09...0.75 mm²) AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14) solid |
| Number of terminal per channel | 2 |
| Shock | 15 gn 11 ms IEC 60068-2-27 |
| Pollution degree | 2 IEC 60664-1 |
| Standards | IEC 61131-2 Type 1 |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP2X conforming to IEC 60529 |
| Torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Dielectric | 2000 V 50/60 Hz IEC 60947-1 |
| Fixing_mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Frequency | 25 |
| Package_type | PCE |
| Channels | 16 |
| Resistance | 1382 °F (750 °C) IEC 60695-2-11 |
| Protection_type | Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse fast blow sensor end |
| Voltage | 164 |
| Response time | <= 20 ms from state 1 to 0 |
| Supply voltage | 240 |
| Switching current | 0.008 |
| Storage temperature | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Isolation PLC (Operative part) | Yes |
| Main_product_or_component_type | Solid state input relay sub-base |
| Operating temperature | 23 |
| Ordering and shipping details (Category) | US10CP222375 |
MPN
ABE7-S16E2M0
