Schneider ABE7E16EPN20 Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Connector type | HE-10 |
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Discrete output voltage type | DC |
| Supply voltage limits | 19...30 V DC (controller side) conforming to IEC 61131-2 20.4...26.4 V DC (sensor/controller side) conforming to IEC 61131-2 |
| Discrete output voltage | 24 V |
| Supply voltage | 24 V DC for controller side 24 V DC for sensor/controller side |
| Voltage | 2000 V terminals/mounting rails |
| Voltage drop on power supply fuse | 0.3 V |
| Switched current | 15 mA for input circuit |
| Maximum supply current | 2 A |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (controller side) |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 |
| Connector destination | Twido programmable controller |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 28...AWG 16) solid |
| Number of terminal per channel | 2 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Product weight | 0.43 kg |
| Standards | IEC 61131-2 Type 1 |
| Pin number | 20 pins |
| Status LED | 1 LED for power ON |
| Fixing mode | By clips, mounting on 35 mm symmetrical DIN rail conforming to IEC 60715 By screws |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Channels | 16 |
| Discrete input logic | Sink |
| Overvoltage category | II conforming to IEC 60664-1 |
| Discrete input number | 16 |
| Polarity distribution | 1 common/16 channels for input |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to radiated fields | 10 V/m (80000000...2000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...80 °C conforming to IEC 61131-2 |
| Ambient air temperature for operation | -5...60 °C conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 8 kV (air) level 3 conforming to IEC 61000-4-2 |

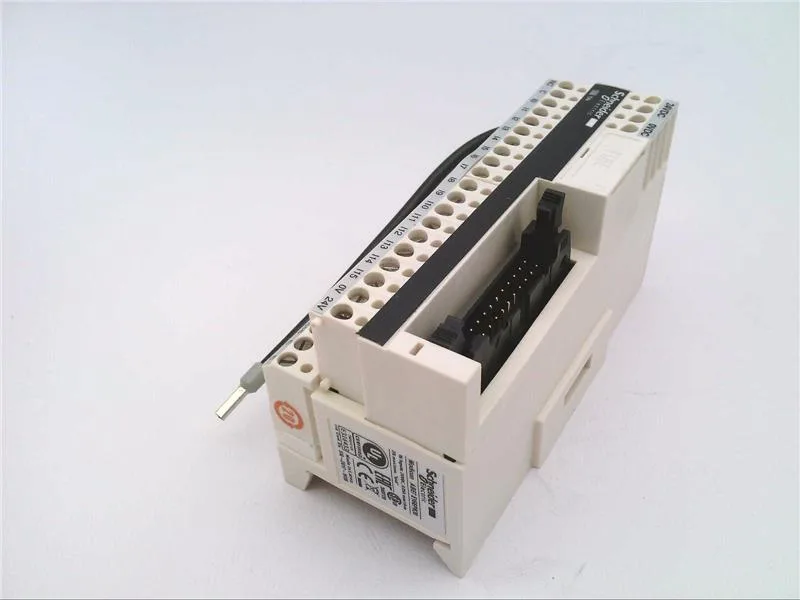

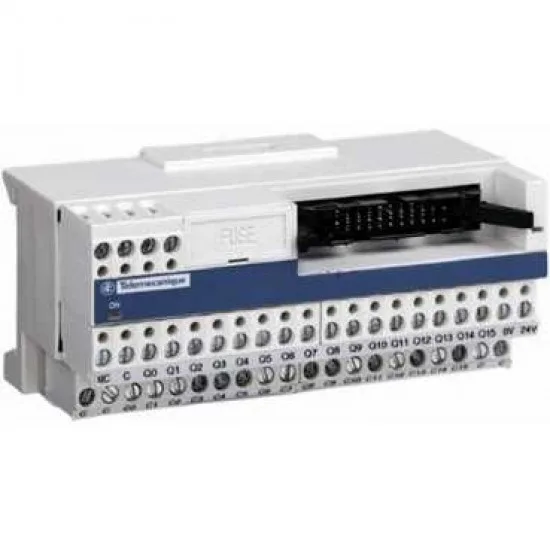

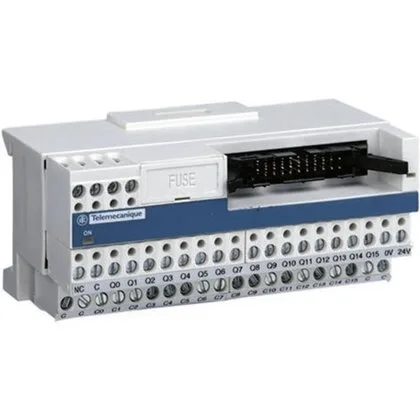

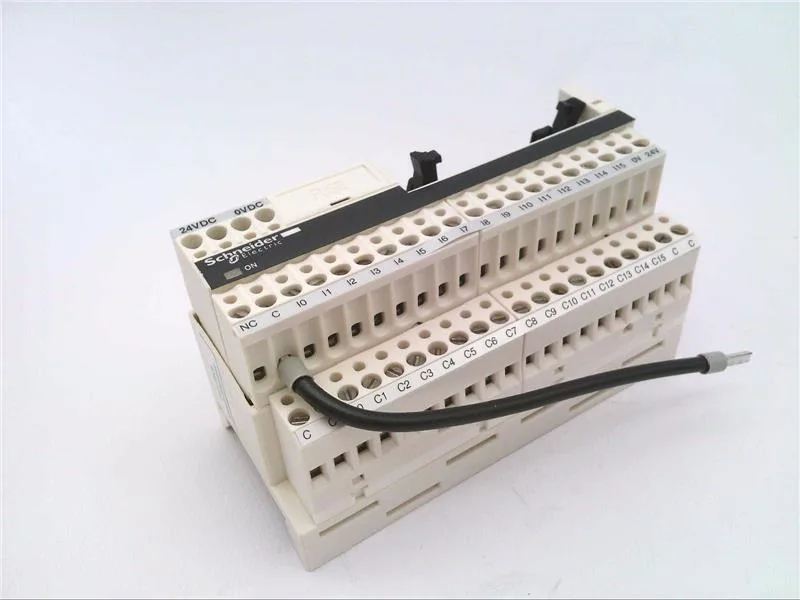

The ABE7E16EPN20 is a Schneider Modicon ABE7 passive discrete I/O sub-base providing 16 sink inputs at 24 V DC. It mounts on 35 mm DIN rail per IEC 60715, encloses to IP2X per IEC 60529, and connects via a 20-pin HE-10 connector with screw terminals accepting 0.14–2.5 mm² solid or stranded wire. The module is in active production.
