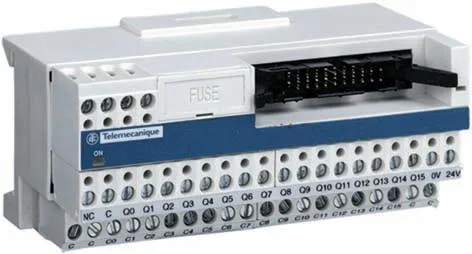

Schneider ABE7E16SPN20 Advantys Telefast ABE7 16-output passive sub-base

MPNABE7E16SPN20
Obsolete

Schneider ABE7E16SPN20 Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$293.36 – $828.00Ref. price · indicative, final on quote
Schneider Electric ABE7E16SPN20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABE7E16SPN20 key specifications
ParameterValue
Connector typeHE-10
Range of productModicon ABE7
Product or component typePassive discrete I/O sub-base
Discrete output voltage typeDC
Supply voltage limits19...30 V DC controller side)IEC 61131-2 20.4...28.8 V DC sensor/controller side)IEC 61131-2
Discrete output voltage24 V
Supply voltage24 V DC controller side 24 V DC sensor/controller side
Voltage2000 V terminals/mounting rails
Voltage drop on power supply fuse0.3 V
Switched current100 mA output circuit
Maximum supply current2 A
Short-circuit protection2 A internal fuse, 5 x 20 mm, fast blow controller side)

All specifications

ABE7E16SPN20 additional specifications
ParameterValue
Maximum current per output common1.6 A
IP degree of protectionIP2X conforming to IEC 60529
Connector destinationTwido programmable controller
Connections - terminalsScrew type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16) solid
Number of terminal per channel2
Resistance to incandescent wire1382 °F (750 °C) IEC 60695-2-11
Pollution degree2 IEC 60664-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Vibration resistance2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6
CategoryUS10CP222375
Pin number20 pins
Status LED1 LED power ON
Fixing modeBy clips 35 mm symmetrical DIN rail IEC 60715 By screws
Tightening torque5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Channels16
Overvoltage categoryII conforming to IEC 60664-1
Discrete output logicSource
Polarity distribution1 common/16 channels output
Discrete output number16
Resistance to fast transients2 kV level 3 IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 80000000...2000000000 Hz)IEC 61000-4-3 level 3
Ambient air temperature for storage-40...176 °F (-40...80 °C) IEC 61131-2
Ambient air temperature for operation23...140 °F (-5...60 °C) IEC 61131-2
Resistance to electrostatic discharge4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2

Product details

Overview

The ABE7E16SPN20 is a Schneider Advantys Telefast ABE7 passive discrete I/O sub-base, order code ABE7E16SPN20, designed to interface with Twido programmable controllers.

This sub-base routes 16 discrete source outputs from the controller to field devices, with a common distribution of 1 common per 16 channels. Each output is protected by a 2 A internal fast-blow fuse on the controller side, and each channel uses 2 screw terminals for wiring solid or flexible conductors up to 2.5 mm².

Applications

Used in machine and process automation as a field-wiring interface between a Twido PLC and solenoid valves, indicator lamps, or small contactor coils. The sub-base consolidates 16 output points into a single HE-10 connector, reducing panel wiring and simplifying troubleshooting.

MPN
ABE7E16SPN20
