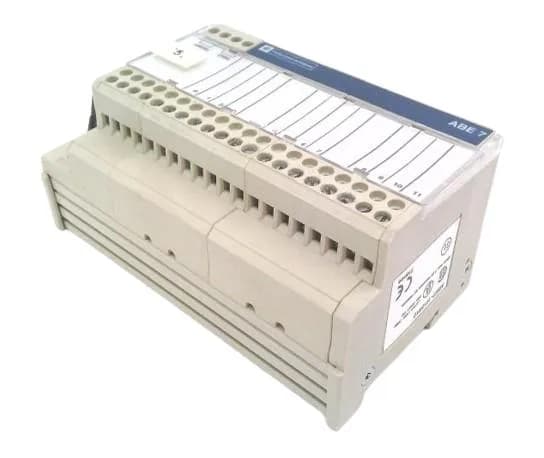

Schneider Electric Modicon ABE7 ABE7H12R10 passive connection sub-base, 12 inputs or outputs, 6.1 A max, 20-pin HE-10 connector, screw terminals, IP2X, DIN-rail or screw mount, discontinued.
| Parameter | Value |
|---|---|
| Sub-base type | I/O sub-base |
| Connector type | HE-10 |
| Range of product | Modicon ABE7 |
| Supply voltage type | DC |
| Product or component type | Passive discrete I/O sub-base |
| Supply voltage | 19...30 V IEC 61131-2 |
| Voltage | 2000 V |
| Voltage drop on power supply fuse | 0.2 V |
| Current per channel | 0.5 A |
| Maximum supply current | 6.1 A |
| Short-circuit protection | 6.3 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Maximum current per output common | 6.1 A |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 |
| Installation category | II IEC 60664-1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Number of terminal per channel | 1 |
| Resistance to incandescent wire | 1382 °F (750 °C) IEC 60695-2-11 |
| Pollution degree | 2 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Width | 4.9 in (125 mm) |
| Category | 22375-INTERFACE MODULE(ABA,R,S) |
| Pin number | 20 pins |
| Status LED | 1 LED (Green) power ON |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Channels | 12 |
| Polarity distribution | No |
| Number of horizontal rows | 1 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) IEC 61131-2 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2 |
The ABE7H12R10 is a passive I/O sub-base in the Modicon ABE7 range, providing a screw-terminal connection point for 12 discrete inputs or outputs via a single 20-pin HE-10 connector. Rated for 6.1 A maximum current with an internal 6.3 A fast-blow fuse on the PLC end, it mounts on 35 mm DIN rail or a solid plate and carries IP2X finger protection.
For a line-down or last-time-buy decision, an RFQ confirms available quantity and lead time for this exact build code.
