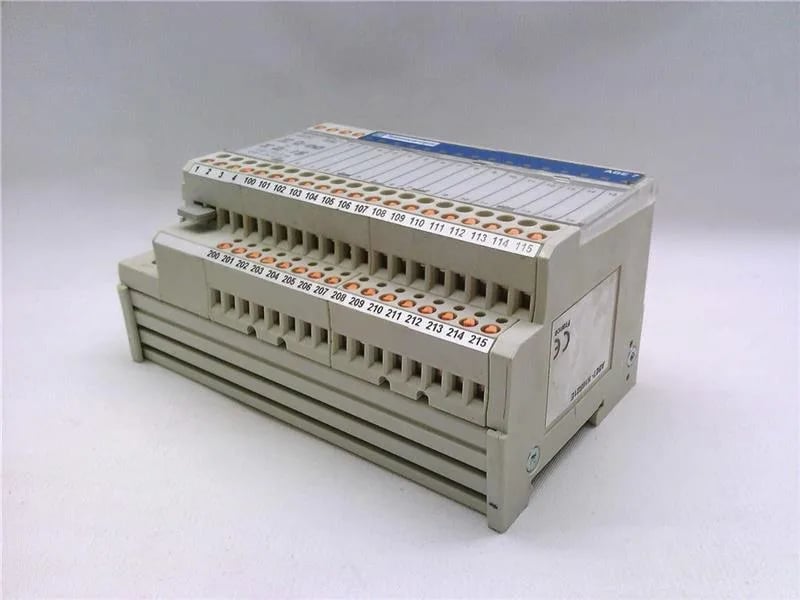

Schneider Electric ABE7H16R21E
MPNABE7H16R21E
Active
ABE7H16R21E - PASSIVE CONNECTION SUB-BASE by TELEMECANIQUE
$215.52Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Sub-base type | I/O sub-base |
| Connector type | HE-10 |
| Range of product | Advantys Telefast ABE7 |
| Supply voltage type | DC |
| Product or component type | Passive discrete I/O sub-base |
| Supply voltage | 19...30 V conforming to IEC 61131-2 |
| Voltage | 2000 V |
| Voltage drop on power supply fuse | 0.3 V |
| Current per channel | 0.5 A |
| Maximum supply current | 1.8 A |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Maximum current per output common | 1.8 A |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X conforming to IEC 60529 |
| Installation category | II conforming to IEC 60664-1 |
| Connections - terminals | Spring terminal, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end Spring terminal, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid Spring terminal, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end |
| Number of terminal per channel | 2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Width | 125 mm |
| Pin number | 20 pins |
| Status LED | 1 LED per channel (green) channel status 1 LED (green) power ON |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Channels | 16 |
| Polarity distribution | 0 V or 24 V |
| Number of horizontal rows | 2 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to radiated fields | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...80 °C conforming to IEC 61131-2 |
| Ambient air temperature for operation | -5...60 °C conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2 8 kV (air) level 3 conforming to IEC 61000-4-2 |
