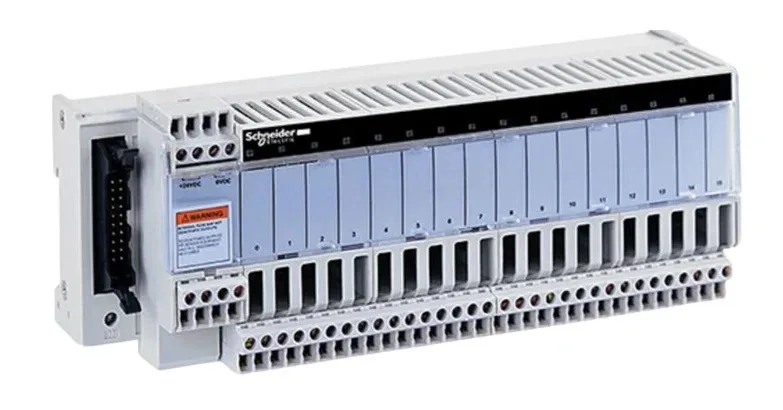

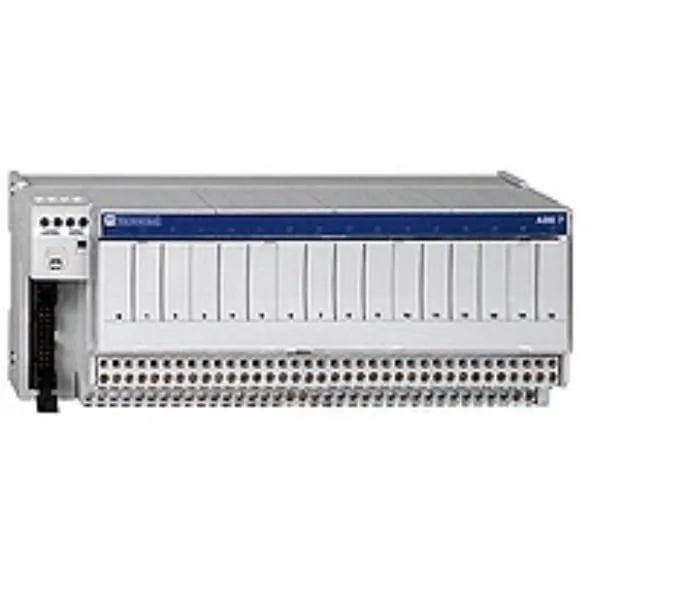

Schneider Electric ABE7S16E2B1
MPNABE7S16E2B1
Active
SUB-BASE - SOLDERED SOLID STATE
$152.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end Adjustable by external fuse fast blow sensor end |
| Range of product | Modicon ABE7 |
| Terminal block type | Removable |
| Product or component type | Solid state input relay sub-base |
| Supply voltage limits | 19...30 V DC PLC end)IEC 61131-2 |
| Supply voltage | 24 V DC PLC end) 24 V DC sensor end) |
| Voltage state 1 guaranteed | >= 15 V sensor end |
| Voltage | 2000 V |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| Current per channel | 0.012 A |
| Maximum switching current | 15 mA PLC end) |
| Minimum switching current | 1 mA for PLC end |
All specifications
| Parameter | Value |
|---|---|
| Current state 1 guaranteed | >= 2 mA sensor end) |
| Switching frequency | <= 1000 Hz 50 % |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Installation category | II IEC 60664-1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.0001...0.002 in² (0.09...1.5 mm²) AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002...0.004 in² (0.14...2.5 mm²) AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.0002...0.004 in² (0.14...2.5 mm²) AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.0001...0.001 in² (0.09...0.75 mm²) AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14) solid |
| Number of terminal per channel | 2 |
| Resistance to incandescent wire | 1382 °F (750 °C) IEC 60695-2-11 |
| Response time | <= 0.4 ms from state 1 to 0 |
| Pollution degree | 2 IEC 60664-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 61131-2 Type 1 |
| Category | US10CP222375 |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Channels | 16 |
| Dielectric strength | 2000 V 50/60 Hz IEC 60947-1 |
| Isolation PLC (operative part) | Yes |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 26000000...1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) IEC 61131-2 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2 |
MPN
ABE7S16E2B1
