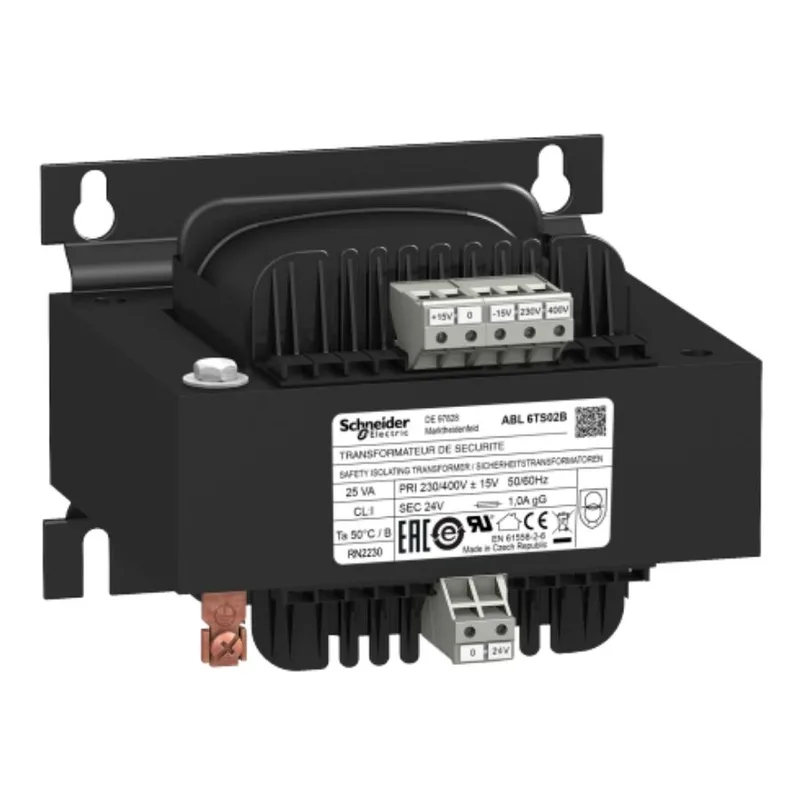

Schneider Electric ABL6TS02B

Schneider Electric ABL6TS02B

MPNABL6TS02B
Obsolete

Voltage Transformer

$36.83 – $55.00Ref. price · indicative, final on quote
Schneider Electric ABL6TS02B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABL6TS02B key specifications
ParameterValue
Range of productModicon Transformer Optimized
Output protection typeAgainst overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection
Product or component typeSafety and isolation transformer
Input voltage230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2
Output voltage24 V AC
Input voltage limits360...440 V 207...253 V
Short-circuit voltage0,1352
Input voltage tolerance+/- 15 V
Maximum voltage drop at rated load0.3 %
Rated power in25 VA
Power dissipation in6.6 W
Network frequency limits47...63 Hz

All specifications

ABL6TS02B additional specifications
ParameterValue
IP degree of protectionIP20
Connections - terminalsFor input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11
Operating altitude3000 m
Depth81.0 mm
Width66.0 mm
Height65.0 mm
StandardsUL 506
MarkingCE
Efficiency79 %
Fixing modeBy 4 screws diameter: 4.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 4.8 mm on vertical panel, operating position: vertical By clips (with mounting plate) on 35 mm symmetrical DIN rail By 4 screws diameter: 4.8 mm on horizontal panel with derating to 90 %
No load losses3 W
Protective coverWithout
Secondary windingSingle
Dielectric strength2000 V between winding and ground 4000 V between primary and secondary
Overvoltage categoryClass I conforming to VDE 0106-1
Protective treatmentTC
Electrical insulation classClass B
Environmental characteristicEMC conforming to IEC 62041 Safety conforming to EN 61558-1 Safety conforming to EN 61558-2-6
Output sustained overvoltage15 % (no load, hot state)
Ambient air temperature for storage-40...80 °C
Ambient air temperature for operation-20...50 °C
