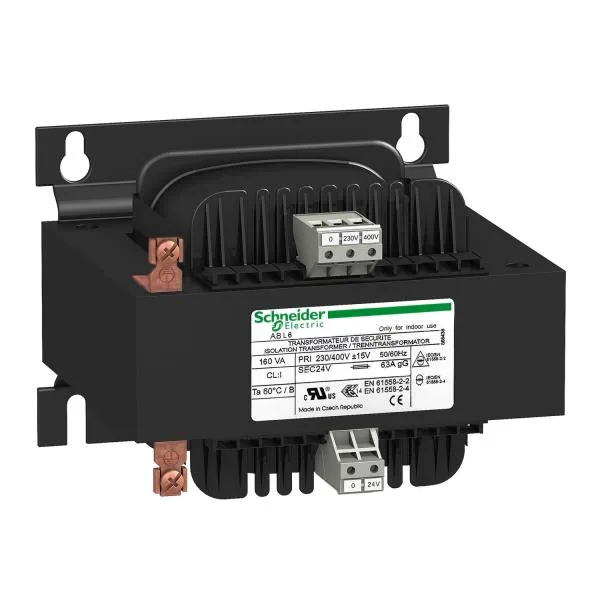

Schneider Electric ABL6TS100B
MPNABL6TS100B
Obsolete
Voltage Transformer
$166.37 – $309.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Product or component type | Safety and isolation transformer |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V AC |
| Input voltage limits | 207...253 V 360...440 V |
| Short-circuit voltage | 0,0293 |
| Input voltage tolerance | +/- 15 V |
| Maximum voltage drop at rated load | 0.3 % |
| Rated power in | 1000 VA |
| Power dissipation in | 63.8 W |
| Network frequency limits | 47...63 Hz |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 10 mm² AWG 6 |
| Operating altitude | 3000 m |
| Depth | 183.0 mm |
| Width | 174.0 mm |
| Height | 148.0 mm |
| Standards | UL 506 |
| Marking | CE |
| Efficiency | 94 % |
| Fixing mode | By 4 screws diameter: 7 mm on vertical panel, operating position: horizontal By 4 screws diameter: 7 mm on vertical panel, operating position: vertical By 4 screws diameter: 7 mm on horizontal panel with derating to 90 % |
| No load losses | 26.5 W |
| Protective cover | Without |
| Secondary winding | Single |
| Dielectric strength | 2000 V between winding and ground 4000 V between primary and secondary |
| Overvoltage category | Class I conforming to VDE 0106-1 |
| Protective treatment | TC |
| Electrical insulation class | Class B |
| Environmental characteristic | EMC conforming to IEC 62041 Safety conforming to EN 61558-1 Safety conforming to EN 61558-2-6 |
| Output sustained overvoltage | 3 % (no load, hot state) |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...50 °C |
