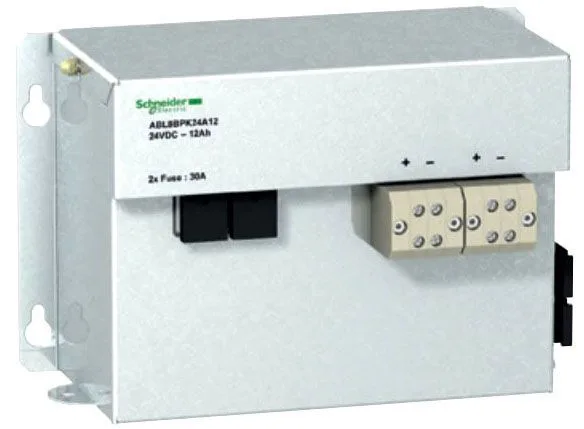

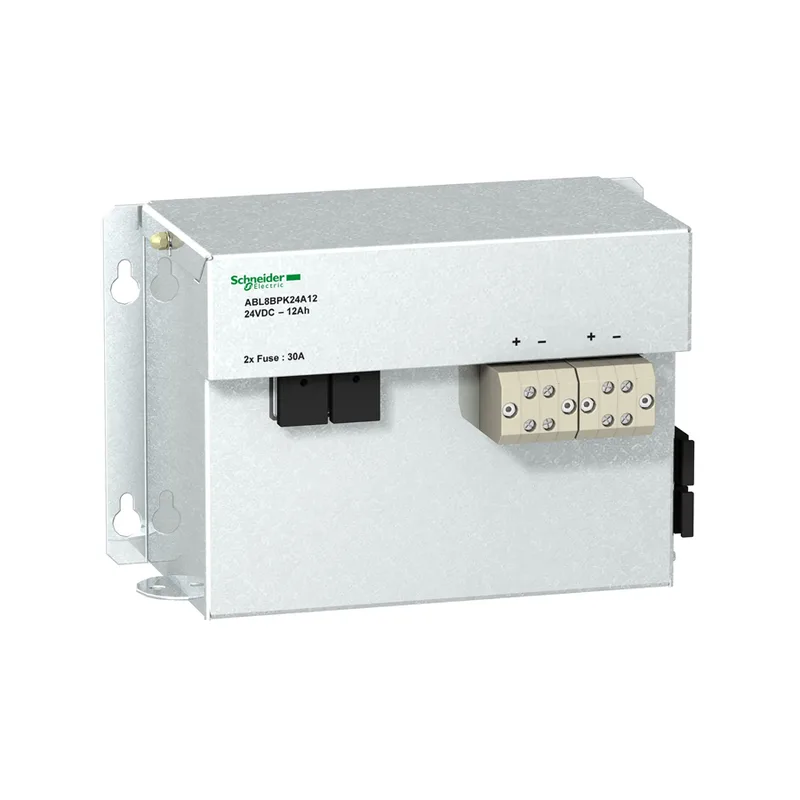

Schneider Electric ABL8BPK24A12
MPNABL8BPK24A12
Obsolete
POWER SUPPLY BATTERY MODULE 12AH|POWER SUPPLY BATTERY MODULE 12AH
$125.73Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Phaseo |
| Output protection type | Against overload and short-circuits, protection technology: 2 x 30 A automotive type fuses |
| Product or component type | Battery module |
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| Input voltage limits | 21...29 V |
| Load current | 1.2 A |
| Maximum output current | 75 A |
| IP degree of protection | IP10 conforming to IEC 60529 |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 For output connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 |
| Operating altitude | 2000 m |
| Vibration resistance | 2 gn (f= 11.9...150 Hz) conforming to IEC 61131-2 3.5 mm (f= 3...11.9 Hz) conforming to IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Marking | CE |
| Fixing mode | By 2 screws diameter: 5 mm on horizontal panel, operating position: horizontal By 4 screws diameter: 5 mm on vertical panel, operating position: vertical |
| Holding time | < 20 h at 0.6 A, 20 °C > 5 min at 31.3 A, 20 °C |
| Charging time | 72 h |
| Output coupling | Parallel |
| Battery capacity | 12 Ah |
| Self-discharge rate | 15 %, 6 months 9 %, 3 months 3 %, 1 month |
| Overvoltage category | Class 3 conforming to VDE 0106-1 |
| Service life in hours | 11000 h at 40 °C 15000 h at 35 °C 22000 h at 30 °C 31000 h at 25 °C 44000 h at 20 °C 5000 h at 50 °C 7300 h at 45 °C |
| Ambient air temperature for storage | -20...50 °C |
| Ambient air temperature for operation | 0...40 °C |
MPN
ABL8BPK24A12
