Schneider Electric ABL8RPM24200CE — Power Supplies

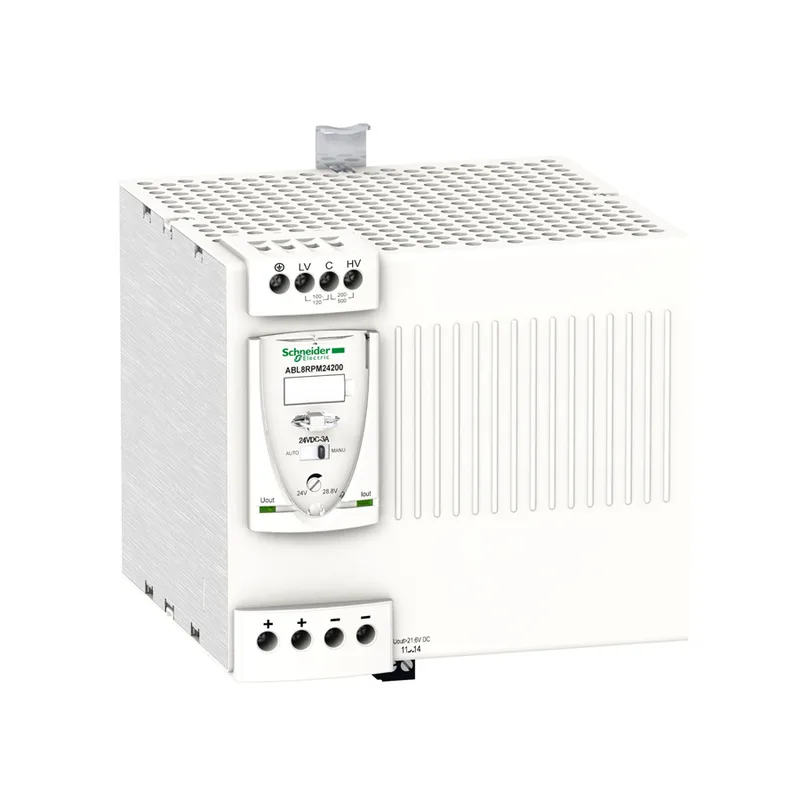

Schneider ABL8RPM24200CE Regulated Switch Power Supply, 480W

MPNABL8RPM24200CE

Schneider Electric ABL8RPM24200CE, Regulated Switch Power Supply, 480 W, 24 V DC, 20 A, 100...240 V AC input, 1.6 Kg.

$465.00Ref. price · indicative, final on quote
Schneider Electric ABL8RPM24200CE datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ABL8RPM24200CE — Electrical
ParameterValue
Output voltage24 V DC
ABL8RPM24200CE — Mechanical
ParameterValue
Weight1.6 Kg
ABL8RPM24200CE — Other specifications
ParameterValue
Efficiency88%
Rated power480 W
Power factor0.68 at 240 V AC, 0.69 at 120 V AC
Product typeRegulated Switch Power Supply
Anti-harmonic filterLow frequency harmonic currents
Nominal input voltage100...120 V AC single phase, terminal(s): N-L1, 200...240 V AC phase to phase, terminal(s): L1-L2
Dimensions (L x w x h)14.6cm x 14.5cm x 12.5cm
Power supply output current20 A
Permissible temporary current boost1.5 x In (for 4 s)

Product details

It accepts a nominal input of 100...120 V AC single phase or 200...240 V AC phase-to-phase, making it flexible for different line voltages across facilities. A useful feature for motor or solenoid starting is the permissible temporary current boost of 1.5 x In for 4 seconds, giving headroom for inrush without oversizing the unit.

Input terminals accept single-phase N-L1 at 100-120 V AC or phase-to-phase L1-L2 at 200-240 V AC. The anti-harmonic filter handles low-frequency harmonic currents, which is typical for switch-mode supplies feeding DC loads.

Frequently asked questions

What are the key ratings of ABL8RPM24200CE?

It delivers 480 W at 24 V DC, 20 A continuous output, with an efficiency of 88%. Input accepts 100-120 V AC single phase or 200-240 V AC phase-to-phase. A temporary current boost of 1.5 x In for 4 seconds is available for inrush loads.
