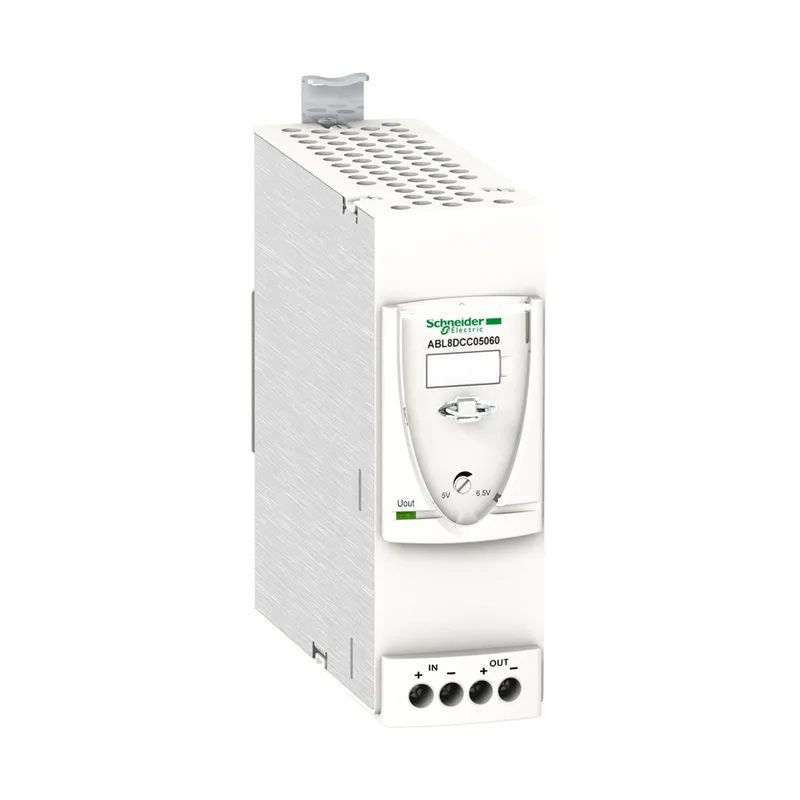

Schneider Electric ABL8DCC05060
MPNABL8DCC05060
Active
DC / DC Converter, 24... 28.8V, 5V, 30W
$119.00 – $158.97Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Phaseo Universal |
| Input protection type | Against reverse polarity |
| Product or component type | Converter module |
| Input voltage | 24...28.8 V DC |
| Output voltage | 5 V DC |
| Input voltage limits | 22...30 V |
| Output voltage limits | 5...6.5 V |
| Power supply output current | 6 A |
| Rated power in | 30 W |
| Power dissipation in | 7 W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Relative humidity | 0...90 % during operation 0...95 % during storage |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 2 gn (f= 11.9...150 Hz) conforming to IEC 61131-2 3.5 mm (f= 3...11.9 Hz) conforming to IEC 61131-2 |
| Category | US1CP1222525 |
| Efficiency | 80 % |
| Residual ripple | 4 V) |
| Dielectric strength | 500 V between input and ground 500 V between input and output 500 V between output and ground |
| Overvoltage category | Class 3 |
| Line and load regulation | 1...3 % |
| Environmental characteristic | EMC conforming to EN 50081-1 EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 Safety conforming to IEC 60950-1 Safety conforming to IEC 61204 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
ABL8DCC05060
