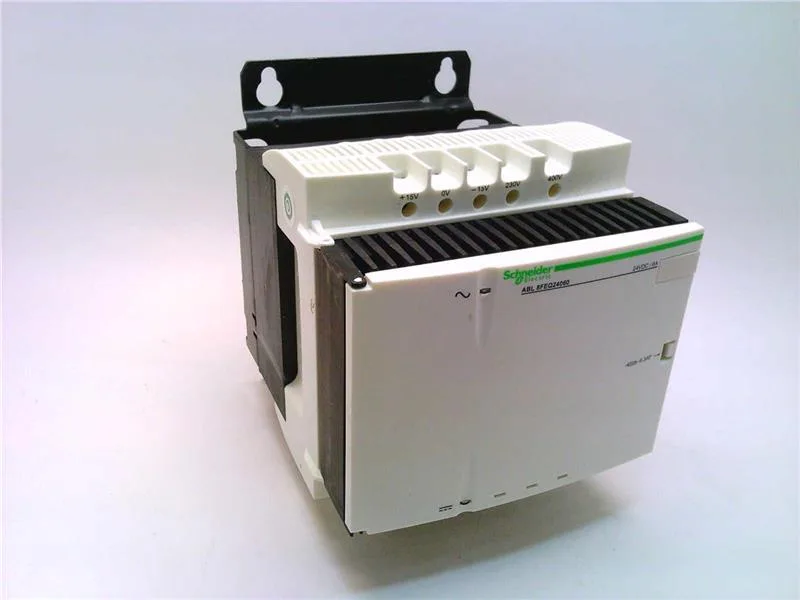

Schneider Electric ABL8FEQ24060
MPNABL8FEQ24060
Obsolete
Rectified & Filtered Power Supply
$176.53 – $294.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Rectified |
| Power supply type | Rectified and filtered |
| Output protection type | Against overload and short-circuits, protection technology: internal fuse, 6.3 A, 5 x 20 mm, T curve Against overvoltage, protection technology: 2 J peak limiter |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Input voltage limits | 207...253 V 360...440 V |
| Nominal input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Power supply output current | 6 A |
| Power factor | 0.781 at 230 V 0.86 at 400 V |
| Rated power in | 144 W |
| Power dissipation in | 36 W |
| Network frequency limits | 47...63 Hz |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 |
| Relative humidity | 0...95 % without condensation or dripping water |
| Operating altitude | 3000 m |
| Depth | 153.0 mm |
| Width | 123 mm |
| Height | 152.0 mm |
| Efficiency | 75 % |
| Status LED | 1 LED (green) output voltage 1 LED (orange) input voltage |
| Hold-up time | 14 ms |
| Safety class | Class I conforming to VDE 0106-1 |
| Output coupling | Series Parallel |
| Residual ripple | <= 1200 MV |
| Compatibility code | ABL8F |
| Dielectric strength | 2000 V between input and ground 4600 V between input and output 500 V between output and ground |
| Anti-harmonic filter | Low frequency harmonic currents |
| Other environmental characteristic | EMC conforming to IEC 62041 Safety conforming to EN/IEC 61558-2-6 Safety conforming to UL 508 Safety conforming to UL 60950-1 EMC conforming to IEC 61000-3-2 |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...60 °C |
MPN
ABL8FEQ24060
