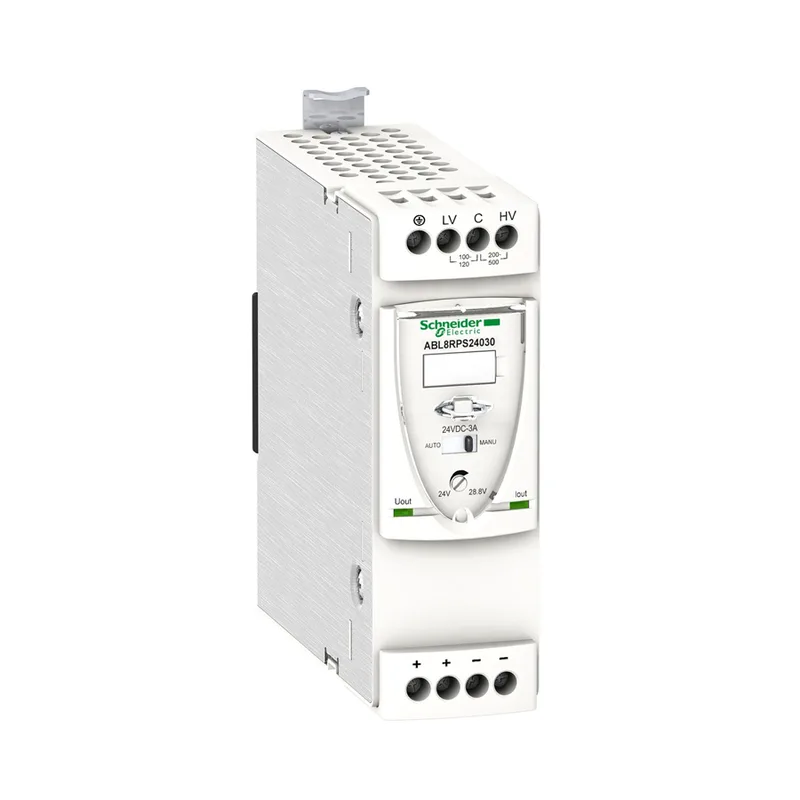

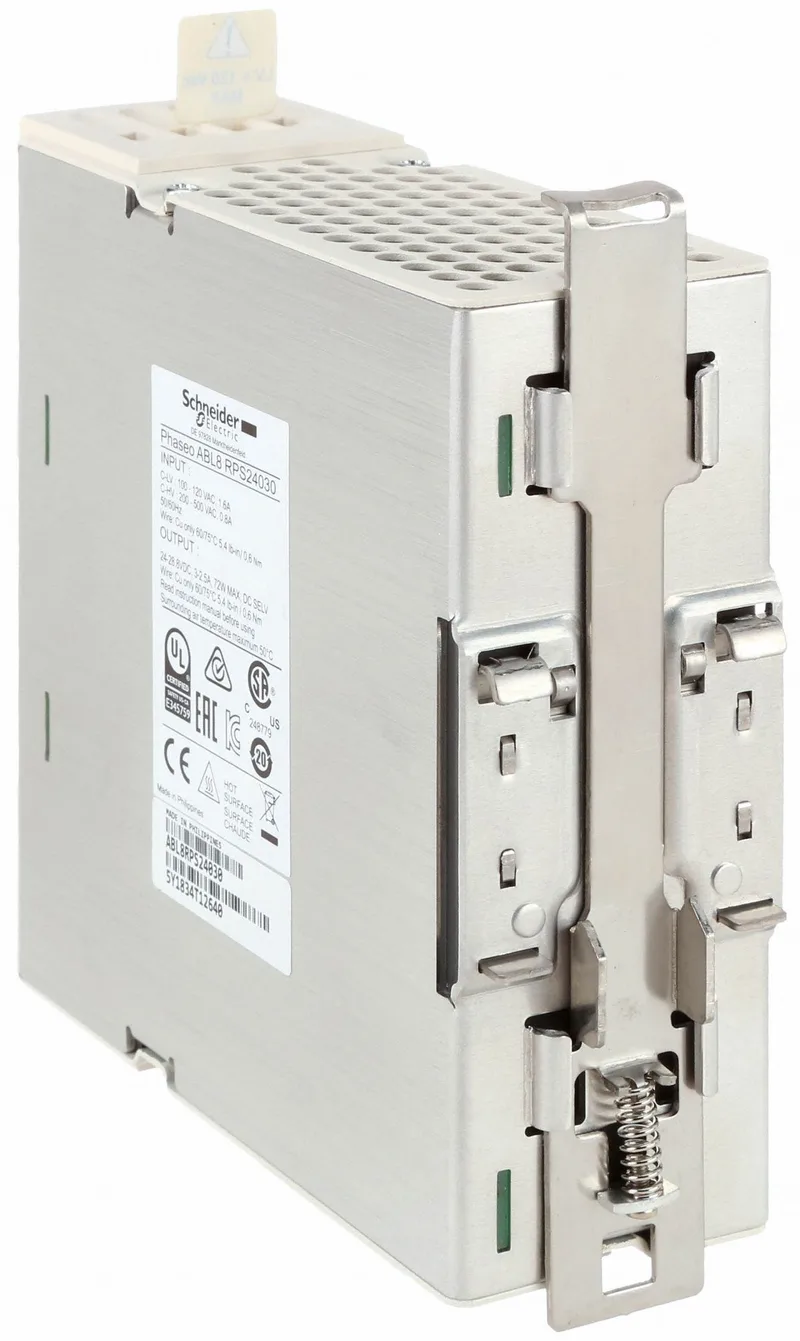

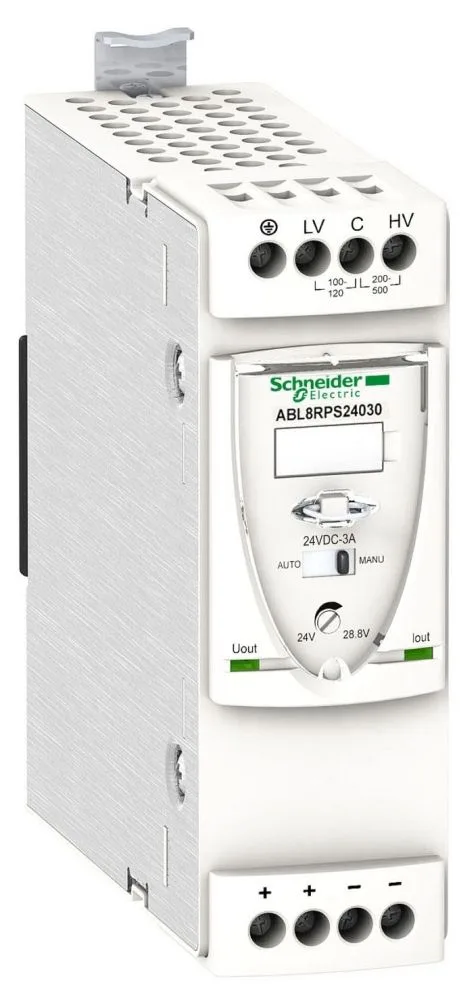

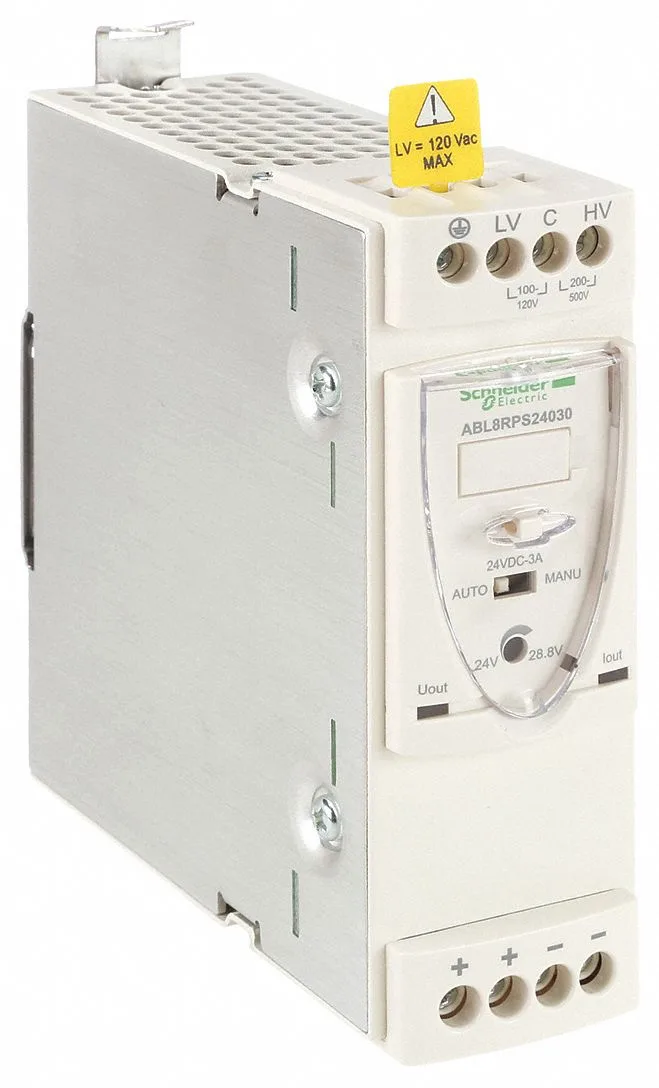

Schneider Electric ABL8RPS24030
MPNABL8RPS24030
Active
Power Supply, 100-500VAC, Input, 24VDC Output, 72W, 3A|Power Supply, 100 - 500 Volt AC, Input, 24 Volt DC Output, 72 Watt, 3 Amp, 1 or 2 Phase, Regulated Switch Mode
$80.01Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Output protection type | Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30...32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Nominal input voltage | 100...120 V AC single phase N-L1 200...500 V AC phase to phase L1-L2 |
| Output voltage adjustment | 24...28.8 V adjustable |
| Inrush current | 30 A |
| Power supply output current | 3 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Power factor | 0.51 at 240 V AC 0.59 at 120 V AC |
| Rated power in | 72 W |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation in | 7.8 W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Connections - terminals | Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection |
| Operating altitude | 6561.68 ft (2000 m) |
| Depth | 4.9 in (125 mm) |
| Width | 1.8 in (45 mm) |
| Height | 4.9 in (125 mm) |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Marking | CE |
| Category | US1CP1222525 |
| Efficiency | 87 % |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Output coupling | Parallel Series |
| Operating position | Vertical |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Dielectric strength | 3500 V with between input and ground 4000 V with between input and output 500 V with between output and ground |
| Anti-harmonic filter | Low frequency harmonic currents |
| Efficiency at full load | 170...550 V AC 85...132 V AC |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
| Ambient air temperature for operation | 122...140 °F (50...60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13...122 °F (-25...50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
