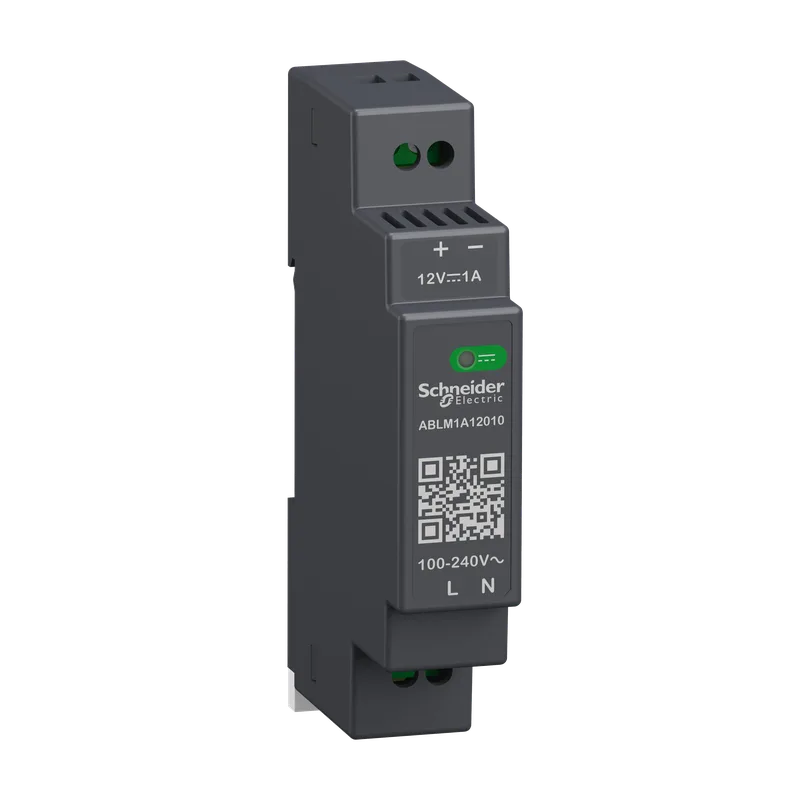

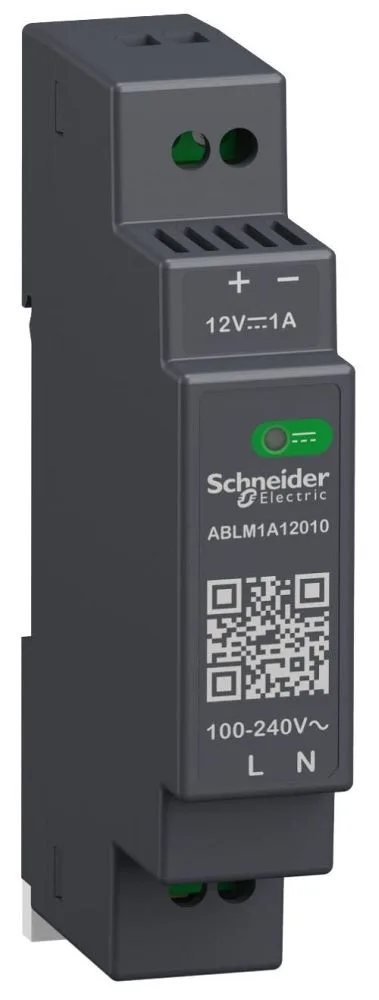

Schneider Electric ABLM1A12010
MPNABLM1A12010
Active
DIN Rail Power Supply 80% 12V 1A 12W Adjustable IP20 ABLM1
$92.88 – $102.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 2 A Curve B External protection (recommended) 2 A Curve C |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Product or component type | Power supply |
| Output voltage | 12 V DC |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase |
| Inrush current | 15 A 115 V 30 A 230 V |
| Current consumption | < 0.4 A 115 V AC < 0.25 A 230 V AC |
| Maximum leakage current | 0.25 mA 240 V AC |
| Power supply output current | 1 A |
| Power factor | 0.51 at 115 V AC 0.40 at 230 V AC |
All specifications
| Parameter | Value |
|---|---|
| Rated power in | 12 W |
| Power dissipation in | 3 W |
| Nominal network frequency | 50...60 Hz |
| Enclosure material | Plastic |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Connections - terminals | Screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output Screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output |
| Pollution degree | 2 |
| Shock resistance | 150 m/s² 11 ms |
| Operating altitude | < 6561.68 ft (2000 m) overvoltage category III 2000 m...5000 m overvoltage category II |
| Vibration resistance | 3 mm (f= 2...9 Hz) conforming to IEC 60721-3-3 10 m/s² (f= 9...200 Hz) conforming to IEC 60721-3-3 |
| Electrical shock protection class | Class II without PE connection |
| Depth | 2.2 in (55.6 mm) |
| Width | 0.7 in (18 mm) |
| Height | 3.6 in (91 mm) |
| Meantime between failure [MTBF] | 3000000 h at 77 °F (25 °C), full load 1000000 h at 131 °F (55 °C), 80 % load |
| Standards | IEC 62368-1 EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Category | US1CP1222525 |
| Efficiency | 80 % 115 V AC 80 % 230 V AC |
| Status LED | 1 LED (Green) output voltage |
| Holding time | > 10 ms 115 V AC > 60 ms 230 V AC |
| Service life | 10 year(s) |
| Turn-on time | < 2 s |
| Variant option | Modular |
| Output coupling | Serial |
| Residual ripple | < 100 mV |
| Dielectric strength | 3000 V AC input/output |
| Overvoltage category | II |
| Efficiency at full load | 90...264 V AC |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3 Radiated emissions IEC 61000-6-4 |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11 Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11 Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to IEC 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1 |
| Line and load regulation | < 0.5 % network in line < 1 % network 0 to 100 % load |
| Network system compatibility | TN TT IT |
| Startup with capacitive loads | 3000 µF |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) without current derating mounting position A < 6561.68 ft (2000 m) 131...158 °F (55...70 °C) with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m) |
MPN
ABLM1A12010
