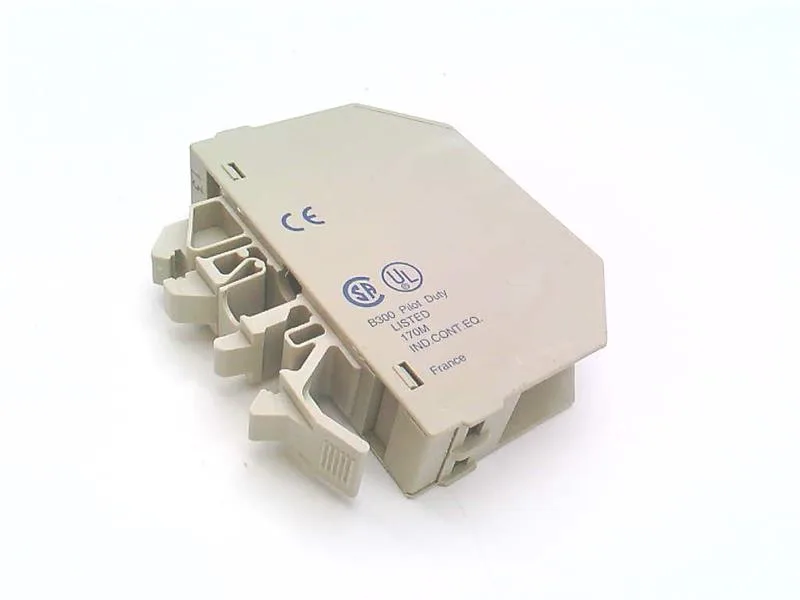

Schneider Electric ABR1E318B
MPNABR1E318B
Obsolete
INTERFACE RELAY - ELECTROMECHANICAL|Telemecanique,INTERFACE RELAY - ELECTROMECHANICAL,-5...40 °C unrestricted operation/-20...60 °C at Un,1 C/O,125 V DC252 V AC,17.5mm,17V,2 A conforming to IEC 60947-1,50/60Hz,= 10000000 cycles,Schneider Electric,Screw clamp terminal,UL, IEC,asymmetrical DIN railcombination railsymmetrical DIN rail,electromechanical input interface module electromechanical input interface module,interface for discrete signals
$138.95Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Interface for discrete signals |
| Control circuit type | AC/DC |
| Product or component type | Electromechanical input interface module |
| Contacts type and composition | 1 C/O |
| Drop-out voltage | 3.8 V |
| Maximum switching voltage | 125 V DC 252 V AC |
| Minimum switching voltage | 17 V |
| Coil voltage | 24 V |
| Voltage | 250 V conforming to IEC 60947-1 250 V conforming to VDE 0110 group C |
| Control circuit voltage limits | 30 V energization threshold: 16.5 V |
| [Ue] rated operational voltage | <= 230 V AC conforming to IEC 60947-5-1 |
| Minimum holding current | 4.9 mA DC 5.2 mA AC |
All specifications
| Parameter | Value |
|---|---|
| Short-circuit protection | 16 A external fuse gF (Ik 16 A external fuse gG (Ik <= 2.5 kA AC and Ik <= 100 A DC) |
| Minimum switching current | 3 mA |
| Maximum [In] rated current | 55 mA AC 62 mA DC |
| [Ie] rated operational current | 1 A AC-13 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 1 A AC-14 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 1 A AC-15 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 1 A DC-13 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 2 A AC-12 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 2 A DC-12 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 2 A conforming to IEC 60947-1 |
| Maximum power dissipation in | 1.5 W |
| Network frequency | 50/60 Hz |
| Operating rate in | 6 Hz at no-load 0.5 Hz at Ie |
| Control circuit frequency | 50/60 Hz |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | Combination rail Asymmetrical DIN rail Symmetrical DIN rail |
| Installation category | II conforming to IEC 60947-1 |
| Cable cross section | 0.34...2.5 mm², 1 or 2 wires flexible with cable end 0.6...2.5 mm², 1 or 2 wires flexible without cable end 0.27...2.5 mm², 2 wires rigid 0.27...4 mm², 1 wire rigid |
| Connections - terminals | Screw clamp terminal |
| Pollution degree | 3 conforming to IEC 60947-5-1 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Operating altitude | <= 3000 m |
| Vibration resistance | 6 gn conforming to IEC 60068-2-6 (f = 10...55 Hz) |
| Housing colour | Grey |
| Width pitch dimension | 17.5 mm |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 60947-5-1 |
| Operating time | <= 12 ms between energisation of coil and closing of NO contact |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V0 conforming to UL 94 |
| Local signalling | Green mechanical indicator for position of contacts and 1 green LED control signal state |
| Operating position | Any position |
| Contact bounce time | <= 3 ms |
| Dielectric strength | 1500 V between independent contacts 2500 V between wired interface and earth 4000 V between coil circuit and contact circuits |
| Protective treatment | TC |
| Electrical reliability | <= 0.00000001 |
| Immunity to microbreaks | 8 ms |
| Reverse polarity protection | With |
| Electromagnetic compatibility | 1.2/50 ms shock waves immunity test conforming to IEC 255-4 Electrostatic discharge immunity test, level 3 8 kV conforming to IEC 61000-4-2 Rapid transients immunity test on input/output 1 kV conforming to IEC 61000-4-4 Rapid transients immunity test on power supply 2 kV conforming to IEC 61000-4-4 |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -20...60 °C at Un -5...40 °C unrestricted operation |
MPN
ABR1E318B
