Schneider Electric ABS2SA01MB

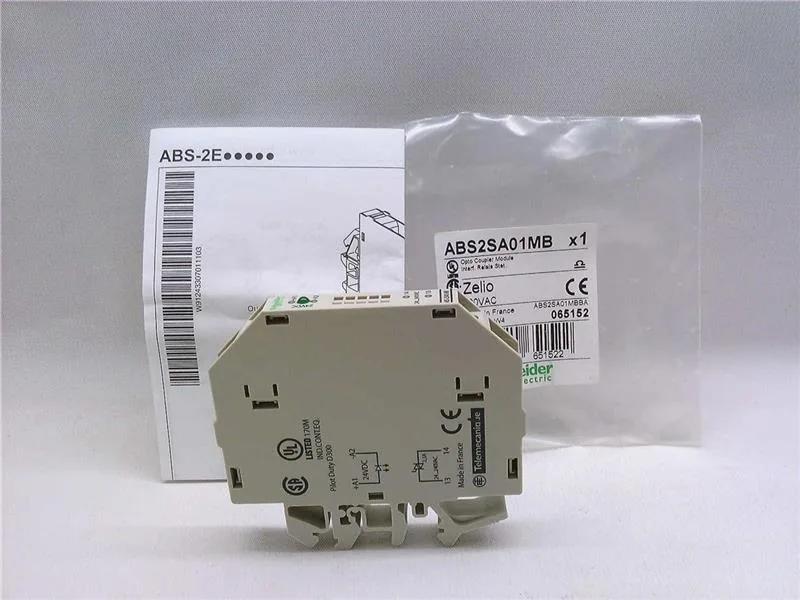

Schneider ABS2SA01MB Interface Relay

MPNABS2SA01MB
Active

INTERFACE RELAY - SOLID STATE|Telemecanique,INTERFACE RELAY - SOLID STATE,-25...70 A°C at Us-5...55 A°C unrestricted operation,24 V,9.5mm,= 100 mA / = 10 mA,Schneider Electric,Screw clamp terminal,UL, IEC,asymmetrical DIN railcombination railsymmetrical DIN rail,interface for discrete signals,slim solid state output interface module

$45.72Ref. price · indicative, final on quote
Schneider Electric ABS2SA01MB datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ABS2SA01MB key specifications
ParameterValue
Range of productInterface for discrete signals
Output circuit typeAC
Control circuit typeDC
Product or component typeSlim solid state output interface module
Contacts type and composition1 NC
Drop-out voltage3 V 1.5 V
0 crossing voltage50 V peak
Voltage state 0 guaranteed5.3 V
Voltage state 1 guaranteed16.9 V
Coil voltage24 V
Voltage250 V conforming to VDE 0110 group C 300 V conforming to IEC 60947-1
Control circuit voltage limits28.8 V

All specifications

ABS2SA01MB additional specifications
ParameterValue
[Ue] rated operational voltage24...240 V
Rated operational voltage limits<= 264 V
Maximum residual current2.5 mA
Short-circuit protection3.15 A external fuse fast blow (Ik <= 1 kA AC and Ik <= 100 A DC)
Minimum switching current10 mA
Current state 0 guaranteed2 mA
Current state 1 guaranteed8.3 mA
Maximum [In] rated current13.6 mA
[Ie] rated operational current1 A AC-15 vertical position, single product conforming to IEC 60947-5-1 1.6 A AC-13 vertical position, single product conforming to IEC 60947-5-1 1.6 A AC-14 vertical position, single product conforming to IEC 60947-5-1 1.9 A AC-12 vertical position, single product conforming to IEC 60947-5-1 0.5 A AC-12 vertical position, touching product conforming to IEC 60947-5-1 0.5 A AC-13 vertical position, touching product conforming to IEC 60947-5-1 0.5 A AC-14 vertical position, touching product conforming to IEC 60947-5-1 0.5 A AC-15 vertical position, touching product conforming to IEC 60947-5-1
[Ith] conventional free air thermal current2.3 A at 40 °C
Switching frequency<= 50 Hz on resistive load duty cycle: 50 %
IP degree of protectionIP20 conforming to IEC 60529
Mounting supportSymmetrical DIN rail Asymmetrical DIN rail Combination rail
Installation categoryII conforming to IEC 60947-1
Cable cross section0.34...2.5 mm², 1 or 2 wires flexible with cable end screw clamp terminal 0.27...4 mm², 1 wire rigid 0.6...2.5 mm², 1 or 2 wires flexible without cable end
Response time<= 8 ms from state 1 to state 0 at 60 Hz
Pollution degree2 conforming to IEC 60947-1
Shock resistance30 gn for 11 ms conforming to IEC 60068-2-27
Operating altitude<= 3000 m
Vibration resistance5 gn conforming to IEC 60068-2-6 (f = 10...150 Hz)
Width pitch dimension9.5 mm
StandardsIEC 60947-5-1
DV (dt)500 V/µs
Fire resistance960 °C conforming to IEC 60695-2-1
Flame retardanceV0 conforming to UL 94
Local signallingGreen mechanical indicator for position of contacts and 1 green LED control signal state
Operating positionAny position
Dielectric strength2500 V between wired interface and earth for 1 minute 4000 V between I/O for 1 minute
Protective treatmentTC
Reverse polarity protectionControl circuit: internal Output circuit: internal
Electromagnetic compatibilityElectromagnetic field immunity test: level 3 10 V/m between 27...1000 MHz conforming to IEC 61000-4-3 Electrostatic discharge immunity test: level 3 8 kV conforming to IEC 61000-4-2 Fast transients immunity test: level 3 on input/output 1 kV conforming to IEC 61000-4-4 Fast transients immunity test: level 3 on power supply 2 kV conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test conforming to IEC 60947-1
Sale per indivisible quantity5
Ambient air temperature for storage-40...80 °C
Ambient air temperature for operation-25...70 °C at Us -5...55 °C unrestricted operation
