Schneider Electric AK5PC34
MPNAK5PC34
Obsolete

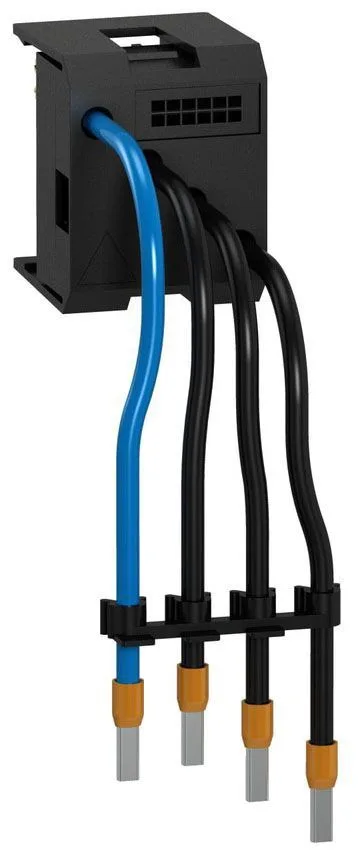

Square D AK5PC34 Removable Power Socket|Square D AK5PC34 Removable Power Socket
$23.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Plug outlet |
| Voltage | 600 V CSA 600 V UL 690 V IEC 60439-1 |
| Peak current | 25 kA |
| [Ith] conventional free air thermal current | 32 A |
| Poles description | 3P + N |
| Cable length | 0.82 ft (0.25 m) |
| Number of cables | 4 0.006 in² (4 mm²) |
| Depth | 1.5 in (38 mm) |
| Width | 1.4 in (36 mm) |
| Height | 1.8 in (46 mm) |
| Standards | IEC 60439 |
| Range | Linergy |
| Category | US10I1122623 |
| Number of points | 2 |
| Quantity per set | Set of 6 |
| I2t on activation | 200000 A².s |
MPN
AK5PC34
