Schneider Electric AL800M23K4
MPNAL800M23K4
Active

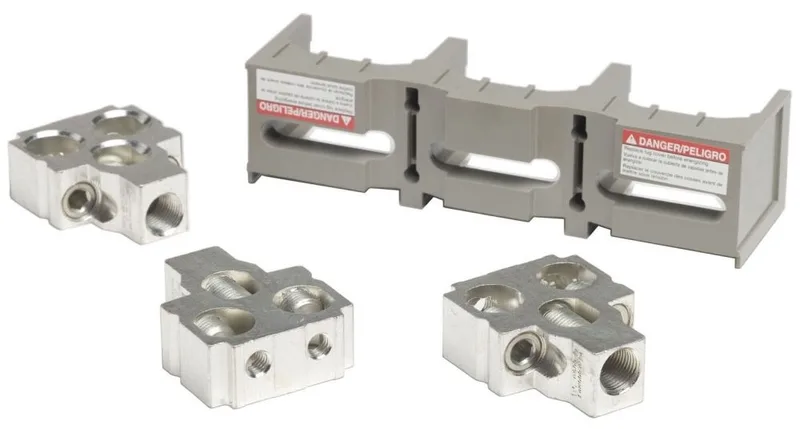

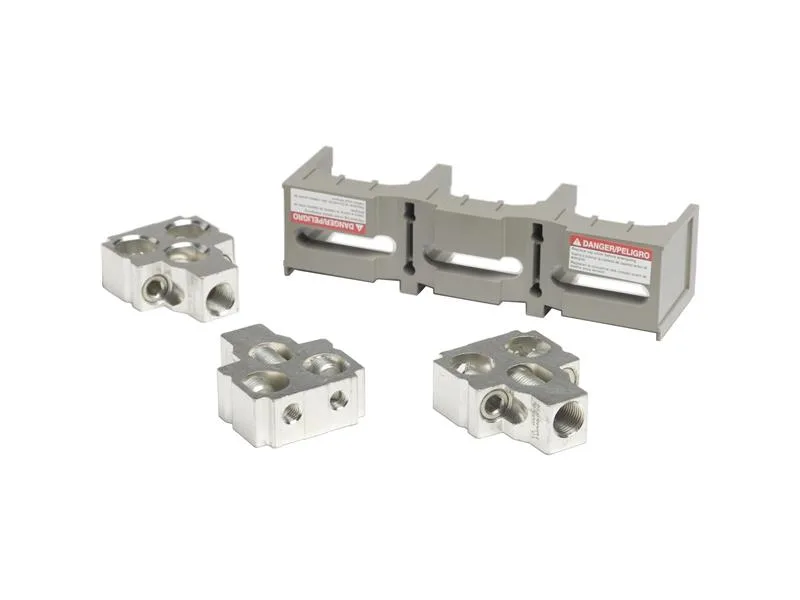

CIRCUIT BREAKER MECHANICAL LUG KIT (4)|CIRCUIT BREAKER MECHANICAL LUG KIT (4)
$361.38 – $540.54Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact M PowerPact P |
| Product or component type | Mechanical lug |
| Line rated current | 800 A |
| Mounting mode | Unit mount I-Line |
| Location of connection | Downstream Upstream |
| Material | Aluminium |
| Category | US10DE201250 |
| AWG gauge | AWG 3/0...500 kcmil aluminium/copper |
| Kcmil size | 500 kcmil |
| Quantity per set | Set of 4 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (AWG 3/0...500 kcmil) |
| Accessory (separate part category) | Connection accessory |
MPN
AL800M23K4
