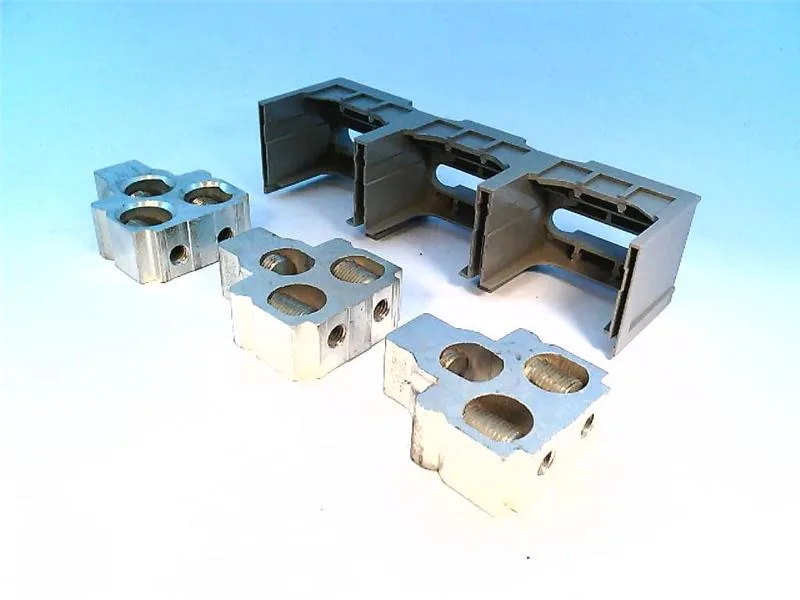

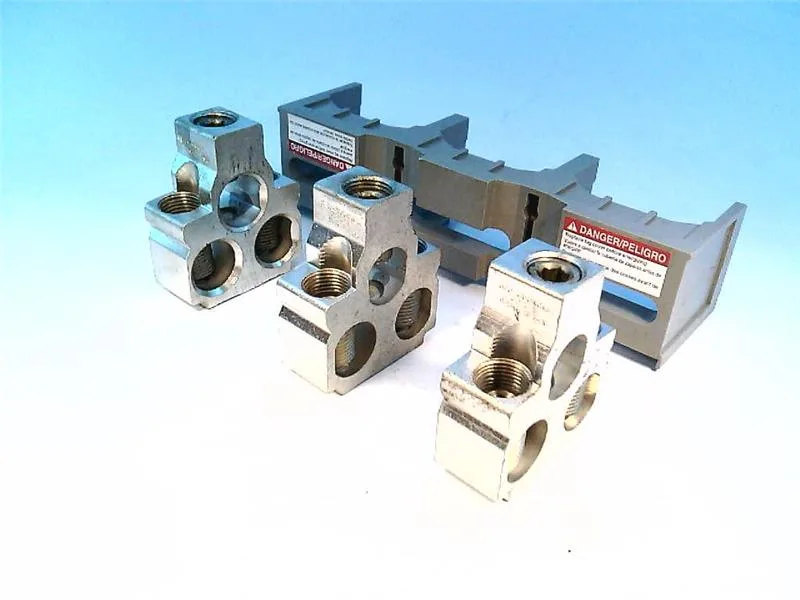

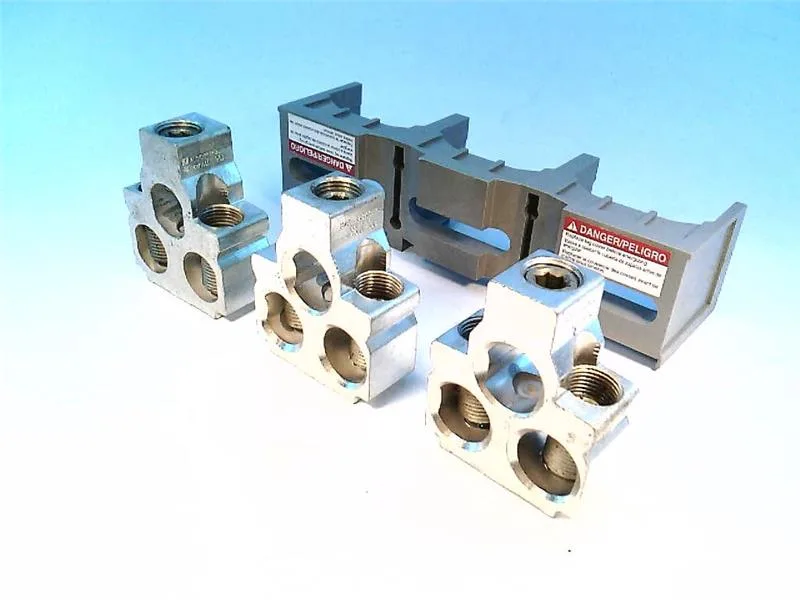

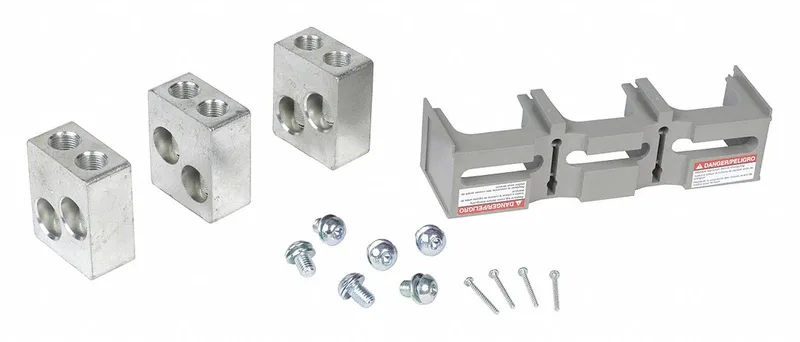

Schneider AL800P6K Breaker Lug Kit
MPNAL800P6K
Active
Breaker, Mechanical Lug Kit, 3P, 800A, 2 x 3/0AWG - 600MCM, CU/AL|Breaker, Mechanical Lug Kit, 3-Pole, 800A, 2 x 3/0 AWG - 600 MCM, Aluminum
$297.18 – $470.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact M PowerPact P |
| Product or component type | Mechanical lug |
| Line rated current | 800...1200 A |
| Mounting mode | I-Line Unit mount |
| Location of connection | Downstream |
| Material | Aluminium |
| Category | US10DE201250 |
| AWG gauge | AWG 3/0...600 kcmil aluminium/copper |
| Kcmil size | 600 kcmil |
| Quantity per set | Set of 2 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.5 in² (95...300 mm²) (AWG 3/0...600 kcmil) |
| Accessory (separate part category) | Connection accessory |
MPN
AL800P6K
