Schneider Electric ATS-48D88Q

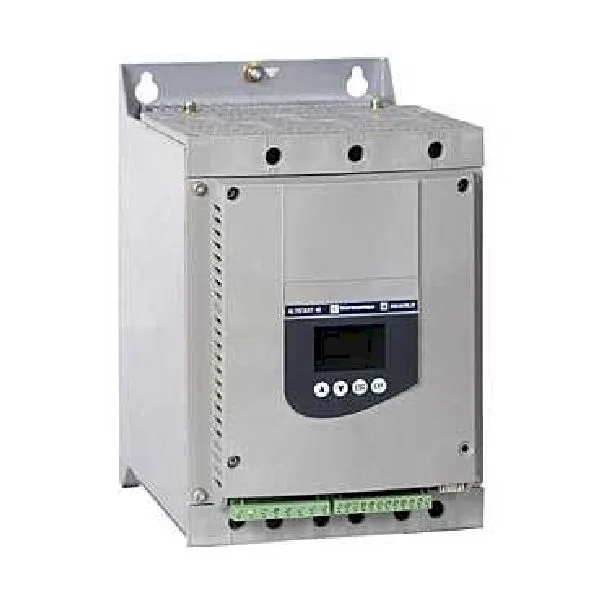

Schneider ATS-48D88Q Altistart 48 soft starter, 415 V, 245 W

MPNATS-48D88Q
Obsolete

Schneider ATS-48D88Q Motor Drives — now discontinued, supplied from remaining surplus and broker stock.

$2,215.00 – $2,714.40Ref. price · indicative, final on quote
Schneider Electric ATS-48D88Q datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ATS-48D88Q key specifications
ParameterValue
SeriesAltistart 48
Type of startStart with torque control (current limited to 5 In)
Range of productAltistart 48
Voltage_in24 V <= 30 V
Current min10 mA at 6 V DC for relay outputs
Current_maxLogic output 0.2 A at 30 V DC, Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 ms Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms
Utilization categoryAC-53 A
ProtocolModbus
InterfaceRS485 multidrop
Connector_type1 RJ45
Device connectionTo the motor delta terminals In the motor supply line
Shock15 gn for 11 ms conforming to EN/IEC 60068-2-27

All specifications

ATS-48D88Q additional specifications
ParameterValue
Altitude max<= 1000 m without derating, > 1000...2000 m with current derating of 2.2 % per additional 100 m
Pollution degreeLevel 3 conforming to IEC 60664-1
Humidity max0
Depth235
Width190
Height290
StandardsEN/IEC 60947-4-2
RoHSPro-active compliance (Product out of EU RoHS legal scope), EU RoHS Declaration
MarkingCE
Power245 W for severe applications, 290 W for standard applications
Noise58 dB
IP ratingIP20
Input_typePTC, 750 Ohm at 25 °C, (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Output signalCurrent output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm
Accuracy-5
Cooling_typeForced convection
Frequency50
Mercury_freeYes
Package_typePCE
Assembly styleWith heat sink
Coil voltage220
Resistance1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6
Protection_typePhase failure: line, Thermal protection: motor, Thermal protection: starter
Supply voltage230
Device short nameATS48
Device_connectionTo the motor delta terminals, In the motor supply line
Motor_starter_typeSoft starter
Operating_positionVertical +/- 10 degree
Product destinationAsynchronous motors
Circularity_profileEnd of Life Information
Product_applicationHeavy duty industry and pumps
Product_destinationAsynchronous motors
Switching current81
Storage temperature-25…70 °C
Max nodes number max31
Discrete_input_count5
Discrete_input_logicPositive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Discrete input number5
Discrete_output_count2
Is_function_availableExternal bypass (optional)
Transmission_rate_bps4800, 9600 or 19200 bps
Environmental_disclosureProduct Environmental Profile
Sustainable_offer_statusGreen Premium product
Control_circuit_consumption30 W
Product specific applicationHeavy duty industry and pumps
Main_product_or_component_typeSoft starter
Operating temperature40

Product details

Overview

The ATS-48D88Q is a Schneider Altistart 48 soft starter rated for a 415 V supply with 245 W dissipation, using torque control start that limits inrush current to 5 In. It accepts a PTC thermistor input for motor thermal protection and communicates via RS485 Modbus on an RJ45 connector, with a configurable 0-20 mA or 4-20 mA analog output.

Compared to the ATV630D22N4 VFD, the ATS-48D88Q has no analog inputs and only 5 discrete inputs (vs. 3 analog and 8 discrete on the ATV630D22N4), making it a dedicated soft starter rather than a full variable-frequency drive.

MPN
ATS-48D88Q
