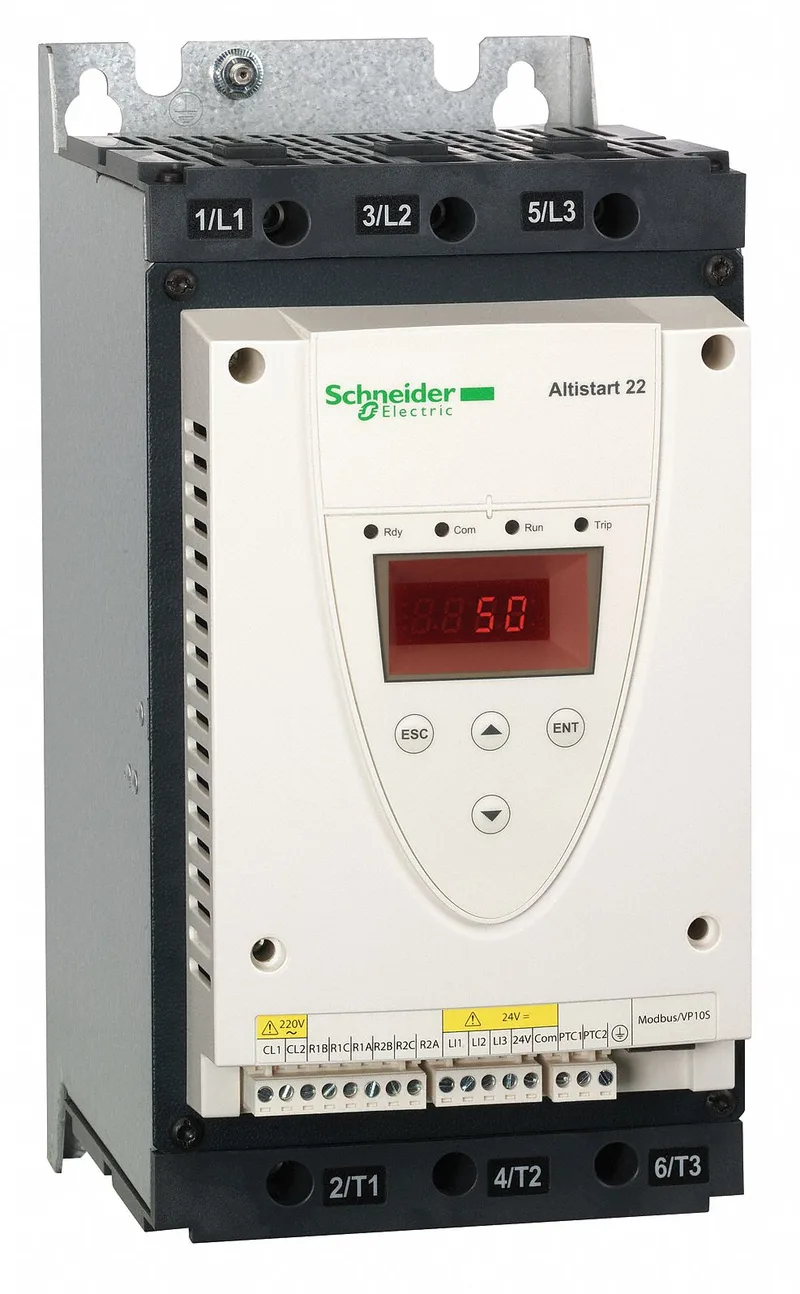

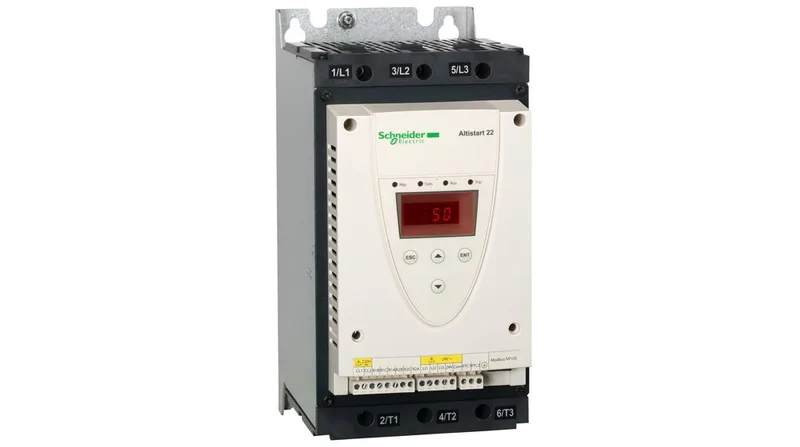

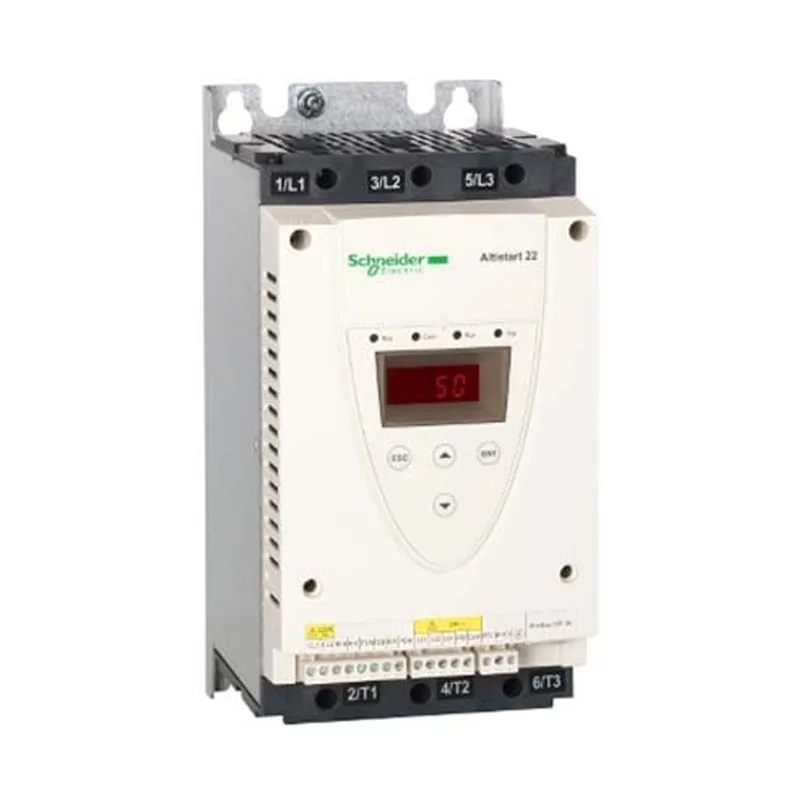

Schneider Electric ATS22D88S6U
MPNATS22D88S6U
Obsolete
Soft Starter, ATS22, 88A, 208-575VAC, 3PH, 75HP, Asynchronous|Soft Start, ATS22, 88 Amp, 208 - 575 Volt AC, 75 HP, Asynchronous
$1,109.98 – $1,921.86Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type of start | Start with torque control (current limited to 3.5 In) |
| Range of product | Altistart 22 |
| Discrete input type | LI1, LI2, LI3) logic, 5 mA 20 kOhm |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Product or component type | Soft starter |
| Supply voltage limits | 177...660 V |
| Discrete input voltage | 110 V 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m |
| Supply voltage | 208...600 V - 15...10 % |
| Coil voltage | 110 V - 15...10 % 50/60 Hz |
| Factory setting current | 77 A |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs |
| Minimum switching current | 100 mA 12 V DC relay outputs) |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation in | 66 W for standard applications |
| Maximum horse power rating | 25 hp 208 V 30 hp 230 V 60 hp 460 V 75 hp 575 V |
| Supply frequency | 50...60 Hz - 10...10 % |
| Network frequency | 45...66 Hz |
| Phases | 3 phase |
| Utilisation category | AC-53A |
| IP degree of protection | IP20 |
| Device connection | In the motor supply line |
| Category | US1CP1G22576 |
| Assembly style | With heat sink |
| Component name | ATS22 |
| Function available | Internal bypass |
| IcL starter rating | 88 A connection in the motor supply line for standard applications |
| Product destination | Asynchronous motors |
| Discrete input number | 3 |
| Discrete output number | 2 |
| Control circuit consumption | 20 W |
| Product specific application | Pumps and fans |
MPN
ATS22D88S6U
