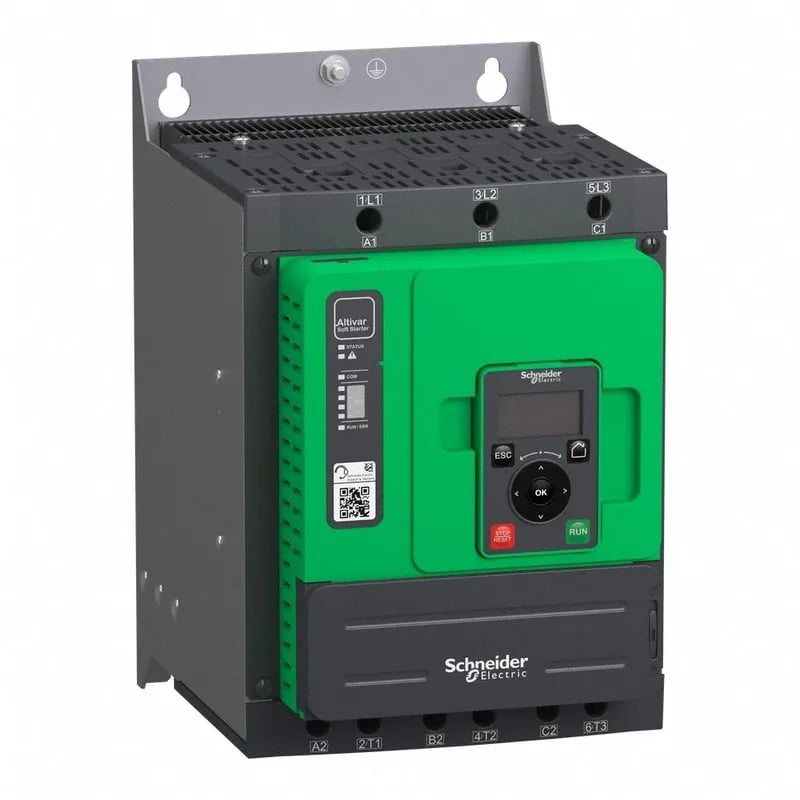

ATS480D62Y - Schneider Electric
MPNATS480D62Y
Active
SOFTSTARTER ATS480 208 690V AC 62A|SOFTSTARTER ATS480 208 690V AC 62A
$1,976.76Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Phase failure line Integrated thermal protection motor Thermal protection starter Current overload motor Underload motor Excessive starting time, locked rotor motor Motor phase loss motor Line supply phase loss line Line supply phase loss motor Thermal protection motor |
| Range of product | Altivar Soft Starter ATS480 |
| Relay output type | Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable |
| Discrete input type | STOP) logic inputs, 3500 Ohm RUN) logic inputs, 3500 Ohm DI3) programmable as logic input, 3500 Ohm DI4) programmable as logic input, 3500 Ohm |
| Discrete output type | DQ1) programmable digital output DQ2) programmable digital output 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m |
| Product or component type | Soft starter |
| Ue power supply voltage | 208...690 V - 15...10 % |
| Coil voltage | 24 V DC |
| [Us] control circuit voltage | 110...230 V AC 50/60 Hz - 15...10 % |
| Maximum switching current | Relay outputs 2 A 250 V AC Relay outputs 2 A 30 V DC |
| Minimum switching current | 100 mA 12 V DC relay outputs |
| Rated current in heavy duty | 47.0 A at 104 °F (40 °C) heavy duty |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | Normal duty 62.0 A 104 °F (40 °C)) |
| Power loss static current independent | 25.0 W |
| [In] rated current pwr loss specifctn | 62.0 A |
| Current limiting %In (5 x ie maximum) | 150...700 % |
| Power loss per device current dependent | 181.0 W |
| Apparent power | 0.09 kVA |
| Motor power | 15.0 kW 230 V in the motor supply line normal duty 11.0 kW 230 V in the motor supply line heavy duty 30.0 kW 400 V in the motor supply line normal duty 22.0 kW 400 V in the motor supply line heavy duty 30.0 kW 440 V in the motor supply line normal duty 22.0 kW 440 V in the motor supply line heavy duty 37.0 kW 500 V in the motor supply line normal duty 30.0 kW 500 V in the motor supply line heavy duty 37.0 kW 525 V in the motor supply line normal duty 30.0 kW 525 V in the motor supply line heavy duty 45.0 kW 660 V in the motor supply line normal duty 37.0 kW 660 V in the motor supply line heavy duty 45.0 kW 690 V in the motor supply line normal duty 37.0 kW 690 V in the motor supply line heavy duty 30.0 kW 230 V to the motor delta terminals normal duty 22.0 kW 230 V to the motor delta terminals heavy duty 55.0 kW 400 V to the motor delta terminals normal duty 45.0 kW 400 V to the motor delta terminals heavy duty |
| Power supply frequency | 50...60 Hz - 20...20 % |
| Maximum horse power rating | 15.0 hp 208 V normal duty 20.0 hp 230 V normal duty 15.0 hp 230 V heavy duty 40.0 hp 460 V normal duty 30.0 hp 460 V heavy duty 50.0 hp 575 V normal duty 40.0 hp 575 V heavy duty |
| Phases | 3 phase |
| Utilisation category | AC-3A AC-53A |
| IP degree of protection | IP20 |
| Device connection | In the motor supply line To the motor delta terminals |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | IEC 60947-4-2 UL 60947-4-2 IEC 60664-1 |
| Marking | CE CCC UKCA EAC RCM CULus |
| Category | US1CP1G22588 |
| Option card | Communication module Profibus DP V1 Communication module Modbus TCP/EtherNet/IP Communication module CANopen daisy chain Communication module CANopen Sub-D Communication module CANopen open style Communication module PROFINET |
| Device short name | ATS480 |
| Input compatibility | STOP discrete input level 1 PLC IEC 61131-2 RUN discrete input level 1 PLC IEC 61131-2 DI3 discrete input level 1 PLC IEC 61131-2 DI4 discrete input level 1 PLC IEC 61131-2 |
| Product destination | Asynchronous motors |
| Relay output number | 3 |
| Discrete input logic | Programmable digital input < 5 V |
| Discrete input number | 4 |
| Discrete output number | 2 |
| Product specific application | Process and infrastructures |
| Motor thermal protection class | Class 10E |
| Integrated motor overload protection | True |
| Maximum deflection under vibratory load (during storage) | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibratory load (during storage) | 15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during transport) | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibratory load (during transport) | 15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz |
MPN
ATS480D62Y
