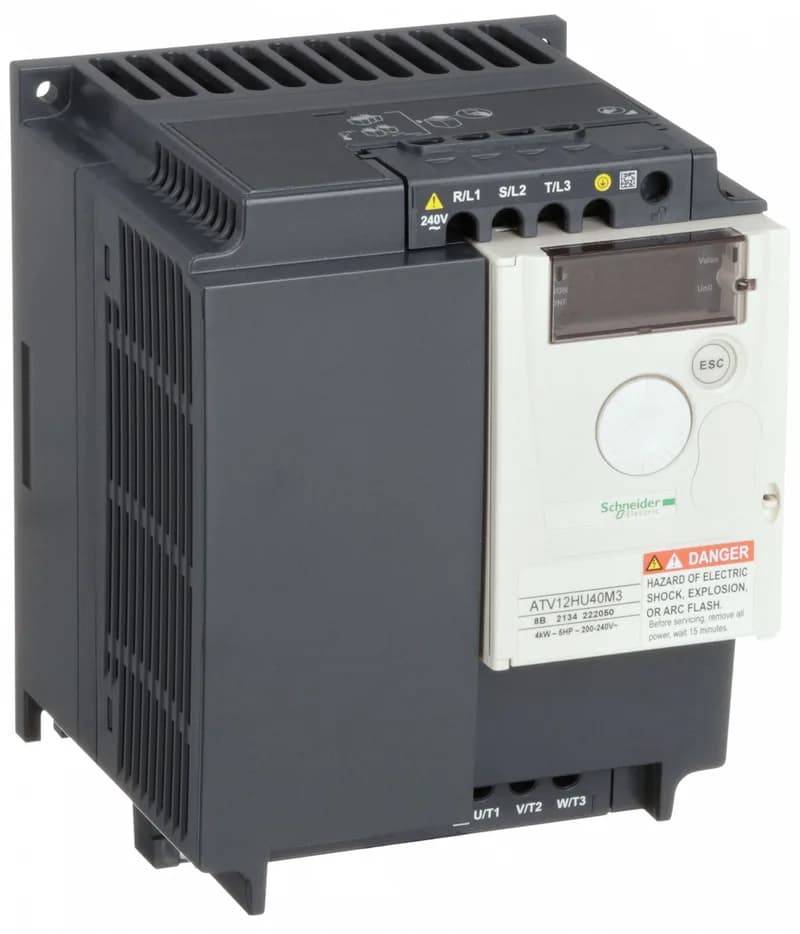

Schneider ATV12HU30M3 Altivar 12 AC Drive, 3 kW, 240 V, 3-Phase

Name: ATV12HU30M3
Brand: Schneider Electric
SKU: ATV12HU30M3
Availability: LimitedAvailability

MPNATV12HU30M3

Active

Schneider Altivar 12 ATV12HU30M3 AC drive, 3 kW, 240 V AC, 3-phase input, 12.2 A output, Modbus, IP20, heat sink, cabinet mount, CE, UL 508C.

$341.63 – $432.00Ref. price · indicative, final on quote

Request quote

Schneider Electric ATV12HU30M3 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

ATV12HU30M3 key specifications
Parameter	Value
Connector type	1 RJ45
Protection type	Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t
Range of product	Altivar 12
Type of polarization	No impedance
Product or component type	Variable speed drive
Maximum output voltage	240 V
Supply voltage	200...240 V - 15...10 %
Line current	19.0 A 100 V heavy duty) 15.9 A 120 V heavy duty)
Nominal output current	12.2 A
Continuous output current	12.2 A 4 kHz
Maximum transient current	18.3 A 60 s heavy duty) 20.1 A 2 s heavy duty)
Maximum input current per phase	15.9 A

All specifications

ATV12HU30M3 additional specifications
Parameter	Value
Base load current at high overload	12.2 A
Apparent power	6.6 kVA 240 V heavy duty)
Motor power	3 kW
Power dissipation in	Forced cooling 94.0 W
Maximum horse power rating	4 hp
Supply frequency	50/60 Hz +/- 5 %
Network frequency	50-60 Hz
Switching frequency	2...16 kHz adjustable 4...16 kHz with derating factor
Frequency resolution	Analog input converter A/D, 10 bits Display unit 0.1 Hz
Maximum output frequency	4 kHz
Nominal switching frequency	4 kHz
Speed drive output frequency	0.5...400 Hz
Relative symmetric network frequency tolerance	5 %
IP degree of protection	IP20
Physical interface	2-wire RS 485
Communication service	Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43)
Communication port protocol	Modbus
Mounting mode	Cabinet mount
EMC filter	Without EMC filter
Pollution degree	2
Shock resistance	15 gn 11 ms IEC 60068-2-27
Relative humidity	5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3
Operating altitude	> 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
Vibration resistance	1 gn 13...200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3...13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Depth	5.6 in (141.2 mm)
Width	5.5 in (140 mm)
Height	7.2 in (184 mm)
Standards	UL 508C UL 618000-5-1 IEC 61800-5-1 IEC 61800-3
Marking	CE
Category	US1000I22000
Insulation	Electrical between power and control
Data format	8 bits, configurable odd, even or no parity
Noise level	50 dB
Speed range	1...20
Time constant	20 ms +/- 1 ms for reference change
Assembly style	With heat sink
Linearity error	+/- 0.3 % of maximum value analogue input
Regulation loop	Adjustable PID regulator
Method of access	Server Modbus serial
Quantity per set	Set of 1
Sampling duration	20 ms +/- 1 ms logic input 10 ms analogue input
Tightening torque	10.6 lbf.in (1.2 N.m)
Transmission rate	9.6 kbit/s 19.2 kbit/s 38.4 kbit/s
Operating position	Vertical +/- 10 degree
Transmission frame	RTU
Number of addresses	1...247
Relay output number	1
Overvoltage category	Class III
Prospective line isc	5 kA
Transient overtorque	150...170 % of nominal motor torque depending on drive rating and type of motor
Analogue input number	1
Braking to standstill	By DC injection
Discrete input number	4
Volume of cooling air	4332.5 Gal/hr(US) (16.4 m3/h)
Analogue output number	1
Discrete output number	2
Motor slip compensation	Adjustable Preset in factory
Brake chopper integrated	False
Electromagnetic emission	Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions IEC 61800-3
Product specific application	Simple machine
4 quadrant operation possible	False
Electromagnetic compatibility	Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Surge immunity test level 3 conforming to IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
With sft fct safe stop 2 (SS2)	False
Ambient air transport temperature	-13...158 °F (-25...70 °C)
Asynchronous motor control profile	Sensorless flux vector control Quadratic voltage/frequency ratio Voltage/frequency ratio (V/f)
Acceleration and deceleration ramps	Linear from 0 to 999.9 s S U
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Ambient air temperature for operation	14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with current derating 2.2 % per °C
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
With safety function safe stop 1 (SS1)	False
With safety function safe position	False
With safety function safe direction	False
With safety function safe torque off	False
With safety function safe programmable logic	False
With safety function safe speed monitor	False
With safety function safe operating stop	False
With safety function safely limited speed	False
With safety function safely limited position	False
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz

Product details

Overview

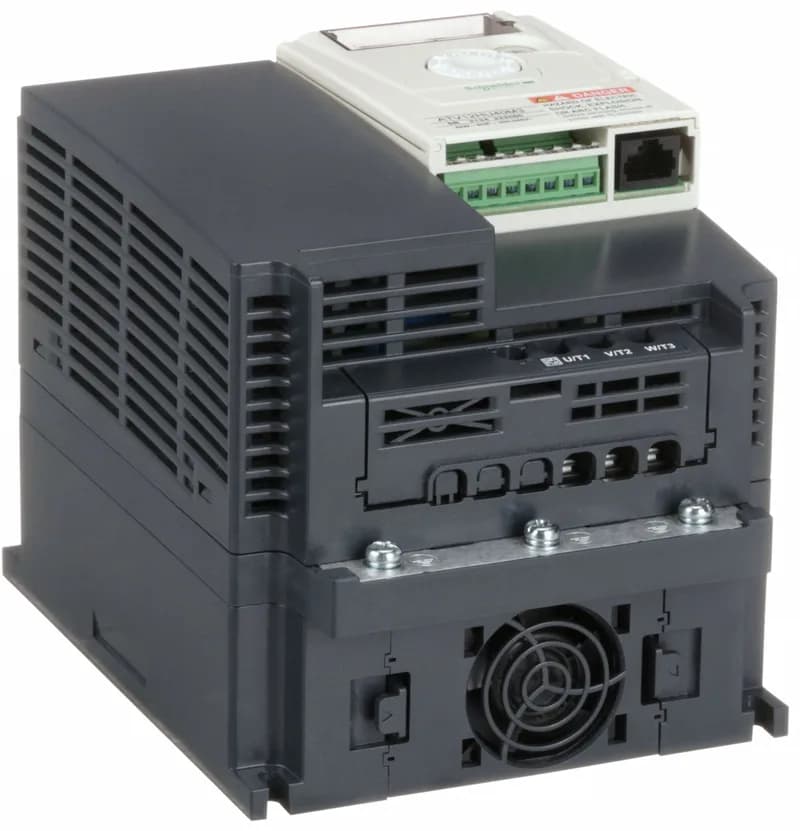

The ATV12HU30M3 is a Schneider Altivar 12 adjustable-frequency AC drive, rated for 3 kW output at 240 V AC on a three-phase input, delivering 12.2 A output current. It is cabinet-mounted with an integral heat sink, carries an IP20 enclosure, and includes on-board Modbus communication. The drive is marked CE and listed under UL 508C and UL 61800-5-1.

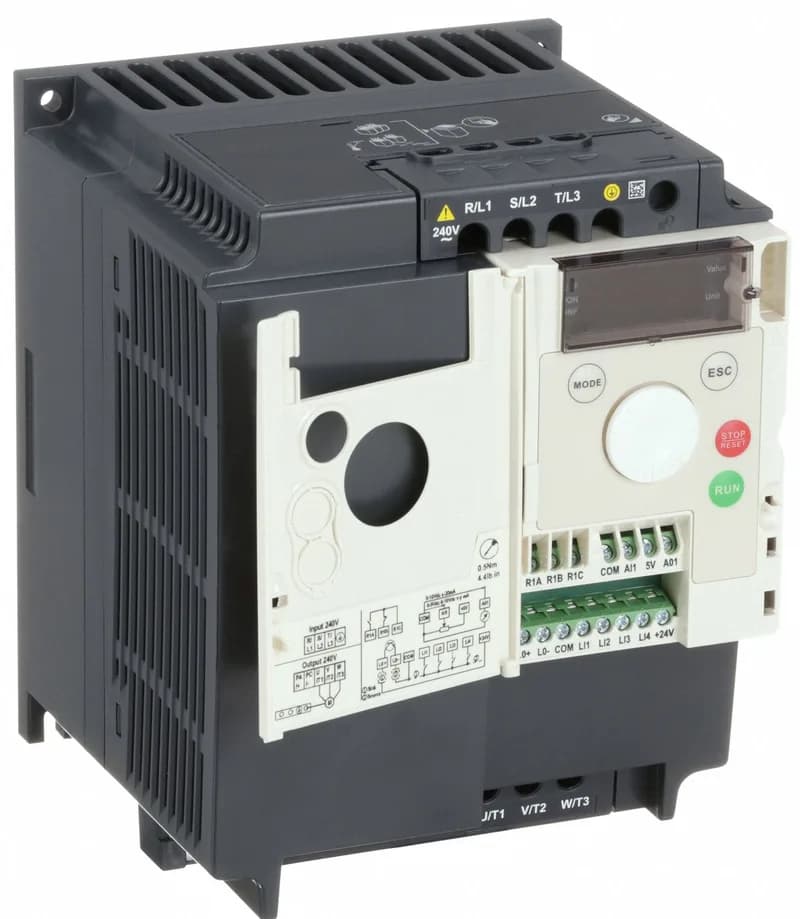

This drive controls the speed and torque of a 3-phase induction motor by varying output frequency and voltage. The 240 V AC three-phase input is rectified and inverted to a variable-frequency output up to 60 Hz. Rated output current of 12.2 A supports a 4 HP motor at 240 V. Control is via the keypad, Modbus serial link, or a remote keypad — the Modbus port uses 8-bit data frames with configurable parity. The drive includes 2 analog inputs and 4 discrete inputs for start/stop and speed reference, plus 1 analog and 2 discrete outputs for status feedback. The heat sink style dissipates thermal load without forced air, keeping the drive suitable for cabinet mounting. Shock rating of 15 gn for 11 ms per IEC 60068-2-27 and vibration tolerance of 10 m/s² at 13–200 Hz ensure reliable operation on machinery subject to mechanical stress.

Applications

The Altivar 12 series is designed for simple machine applications — conveyors, fans, pumps, mixers, and packaging equipment — where basic speed control and Modbus connectivity are sufficient. The 3 kW rating fits small to medium motor loads in material handling, food processing, and light industrial machinery.

The ATV12HU30M3 is a mid-power three-phase drive in the Altivar 12 family. It is specified for applications needing Modbus and basic I/O without advanced features.

The ATV12HU30M3 is an active production model in the Altivar 12 line. Compliance documentation includes CE marking, UL 508C, UL 61800-5-1, IEC 61800-5-1, and IEC 61800-3 standards, plus California Proposition 65. No end-of-life notice or successor has been issued by Schneider for this order code.
