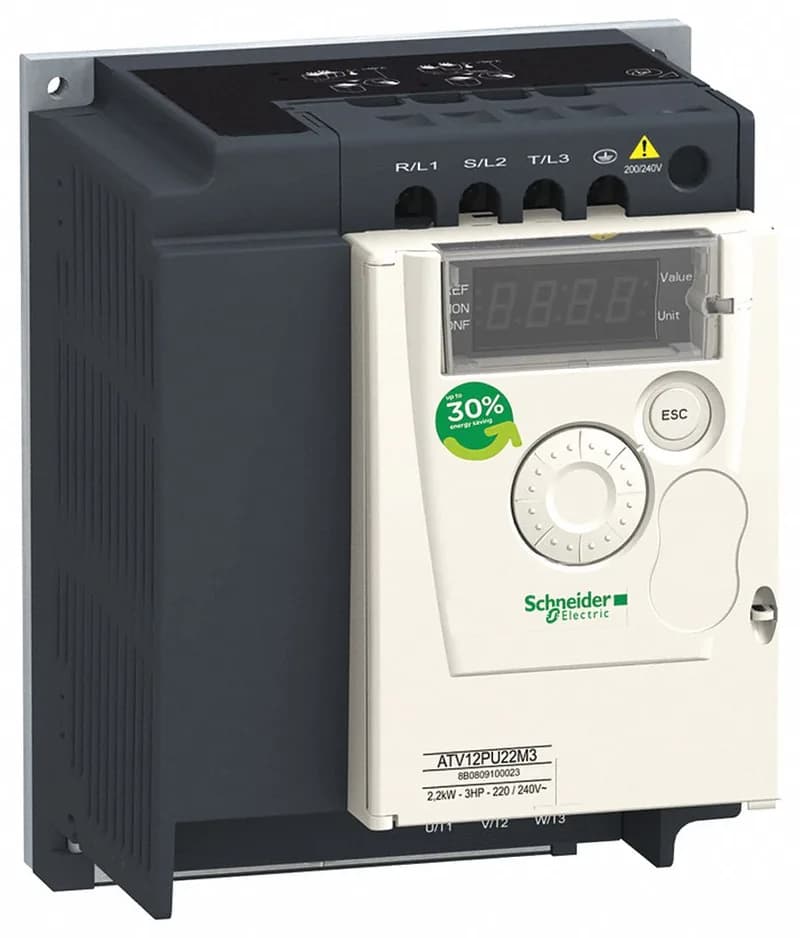

Schneider Electric ATV12PU15M3

ATV12PU15M3 - Schneider Electric

MPNATV12PU15M3
Obsolete

AC DRIVE BASEPLATE 2 HP 230V 3 PHASE|AC DRIVE BASEPLATE 2 HP 230V 3 PHASE

$387.00 – $691.32Ref. price · indicative, final on quote
Schneider Electric ATV12PU15M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV12PU15M3 key specifications
ParameterValue
Connector type1 RJ45
Protection typeLine supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t
Range of productAltivar 12
Type of polarizationNo impedance
Product or component typeVariable speed drive
Maximum output voltage240 V
Supply voltage200...240 V - 15...10 %
Line current11.1 A 100 V heavy duty) 9.3 A 120 V heavy duty)
Nominal output current7.5 A
Continuous output current7.5 A 4 kHz
Maximum transient current11.2 A 60 s heavy duty) 12.4 A 2 s heavy duty)
Maximum input current per phase9.3 A

All specifications

ATV12PU15M3 additional specifications
ParameterValue
Base load current at high overload7.5 A
Apparent power3.9 kVA 240 V heavy duty)
Motor power1.5 kW
Power dissipation inNatural 73.0 W
Maximum horse power rating2 hp
Supply frequency50/60 Hz +/- 5 %
Network frequency50-60 Hz
Switching frequency2...16 kHz adjustable 4...16 kHz with derating factor
Frequency resolutionAnalog input converter A/D, 10 bits Display unit 0.1 Hz
Maximum output frequency4 kHz
Nominal switching frequency4 kHz
Speed drive output frequency0.5...400 Hz
Relative symmetric network frequency tolerance5 %
IP degree of protectionIP20
Physical interface2-wire RS 485
Communication serviceRead holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43)
Communication port protocolModbus
Mounting modeCabinet mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3
Operating altitude> 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
Vibration resistance1 gn 13...200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3...13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
Depth3.9 in (98.2 mm)
Width4.1 in (105 mm)
Height5.6 in (143 mm)
StandardsUL 508C UL 618000-5-1 IEC 61800-5-1 IEC 61800-3
MarkingCE
CategoryUS1CP4B22042
InsulationElectrical between power and control
Data format8 bits, configurable odd, even or no parity
Noise level0 dB
Speed range1...20
Time constant20 ms +/- 1 ms for reference change
Assembly styleOn base plate
Linearity error+/- 0.3 % of maximum value analogue input
Regulation loopAdjustable PID regulator
Method of accessServer Modbus serial
Quantity per setSet of 1
Sampling duration20 ms +/- 1 ms logic input 10 ms analogue input
Tightening torque10.6 lbf.in (1.2 N.m)
Transmission rate9.6 kbit/s 19.2 kbit/s 38.4 kbit/s
Operating positionVertical +/- 10 degree
Transmission frameRTU
Number of addresses1...247
Relay output number1
Overvoltage categoryClass III
Prospective line isc5 kA
Transient overtorque150...170 % of nominal motor torque depending on drive rating and type of motor
Analogue input number1
Braking to standstillBy DC injection
Discrete input number4
Analogue output number1
Discrete output number2
Motor slip compensationAdjustable Preset in factory
Brake chopper integratedFalse
Electromagnetic emissionRadiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable Conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable Conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable Conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <65.6 ft (20 m)
Product specific applicationSimple machine
4 quadrant operation possibleFalse
Electromagnetic compatibilityElectrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Surge immunity test level 3 conforming to IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
With sft fct safe stop 2 (SS2)False
Ambient air transport temperature-13...158 °F (-25...70 °C)
Asynchronous motor control profileVoltage/frequency ratio (V/f) Sensorless flux vector control Quadratic voltage/frequency ratio
Acceleration and deceleration rampsU S Linear from 0 to 999.9 s
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...104 °F (-10...40 °C) without derating 104...140 °F (40...60 °C) with current derating 2.2 % per °C
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
With safety function safe stop 1 (SS1)False
With safety function safe positionFalse
With safety function safe directionFalse
With safety function safe torque offFalse
With safety function safe programmable logicFalse
With safety function safe speed monitorFalse
With safety function safe operating stopFalse
With safety function safely limited speedFalse
With safety function safely limited positionFalse
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
