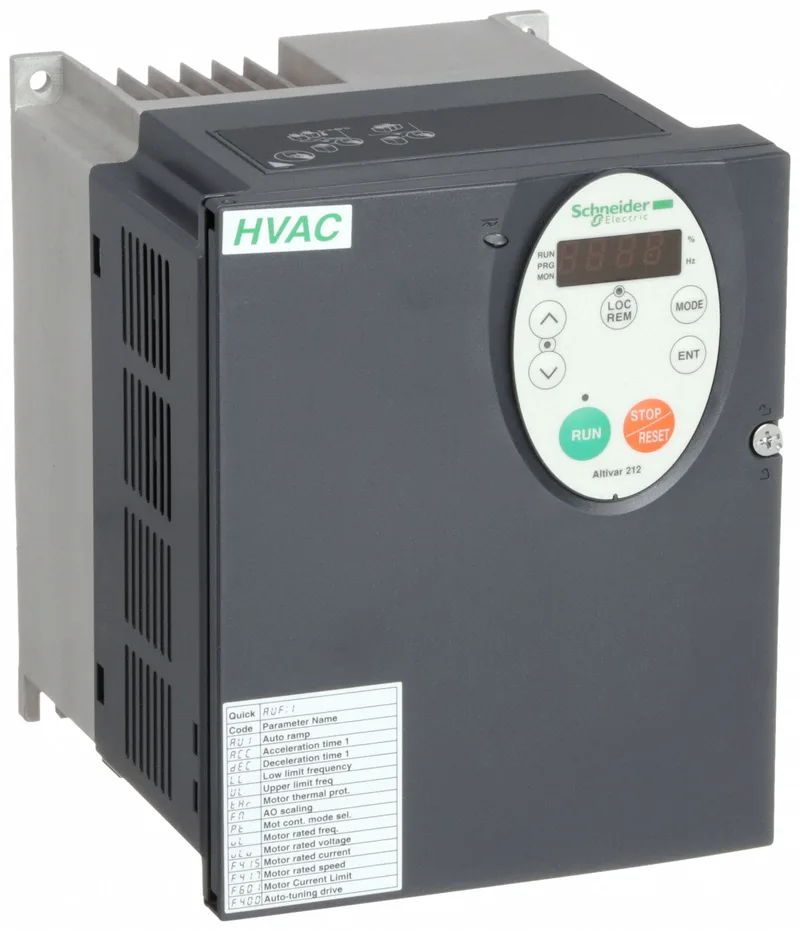

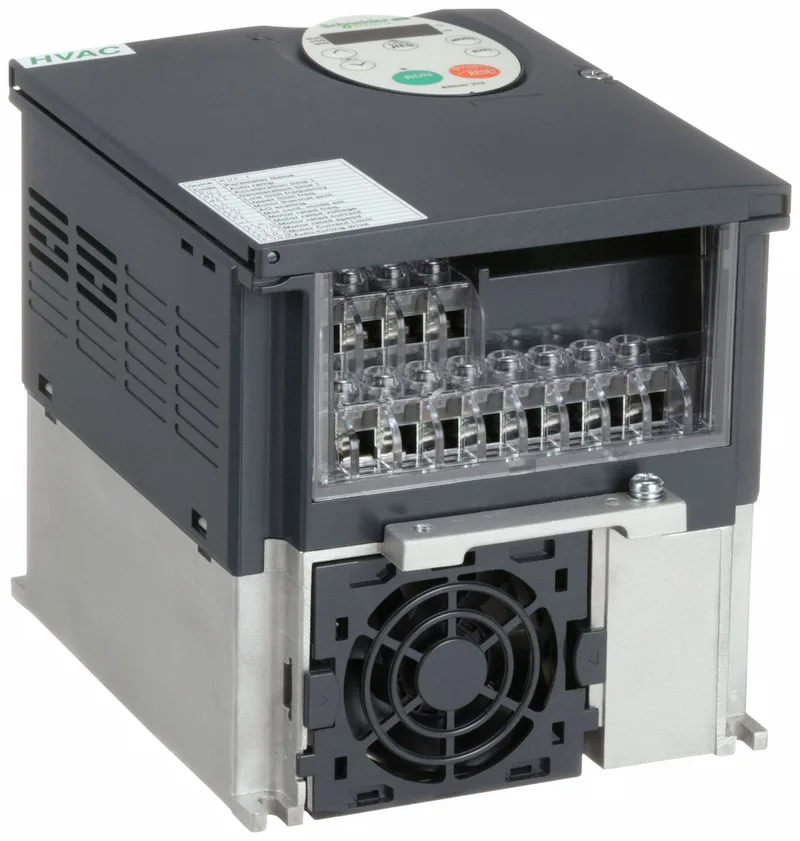

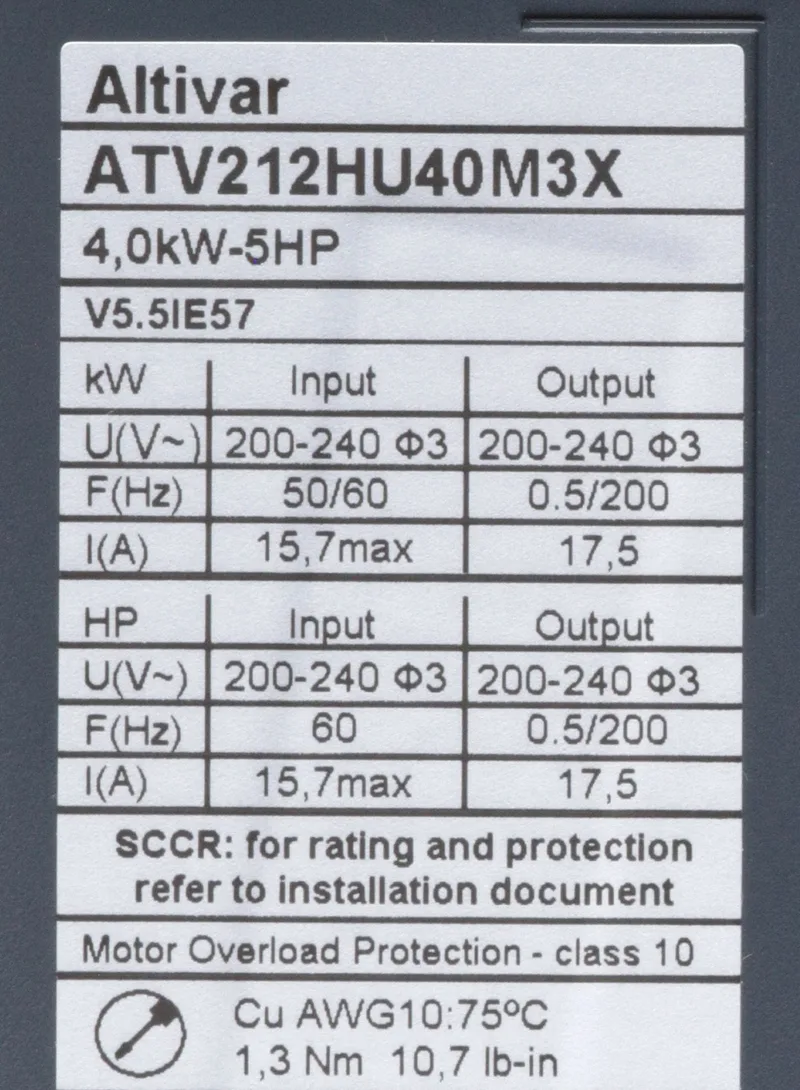

Schneider Electric ATV212HU40M3X

Schneider ATV212HU40M3X Altivar 212 AC drive, 17.5 A, 4 kW, 240 V 3-phase

MPNATV212HU40M3X
Obsolete

Schneider ATV212HU40M3X Motor Drives — now discontinued, supplied from remaining surplus and broker stock.

$642.62Ref. price · indicative, final on quote
Schneider Electric ATV212HU40M3X datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV212HU40M3X key specifications
ParameterValue
Connector type1 RJ45 1 open style
Protection typeOverheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control circuit drive Against exceeding limit speed drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Against input phase loss drive Thermal protection motor Motor phase break motor With PTC probes motor
Range of productAltivar 212
Motor starter typeVariable speed drive
Analogue input typeVIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Type of polarizationNo impedance
Product or component typeVariable speed drive
Output voltage= 1 mOhm 500 V DC for 1 minute
Supply voltage limits170...264 V
Supply voltage200...240 V - 15...10 %
Line current13 A 240 V 15.7 A 200 V
Continuous output current17.5 A 230 V

All specifications

ATV212HU40M3X additional specifications
ParameterValue
Maximum transient current19.3 A 60 s
Apparent power6.7 kVA 240 V
Motor power4 kW
Motor power range AC-34...6 kW 200...240 V 3 phase
Power dissipation in193 W
Maximum horse power rating5 hp
Supply frequency50...60 Hz - 5...5 %
Network frequency47.5...63 Hz
Switching frequency6...16 kHz adjustable 12...16 kHz with derating factor
Frequency resolutionDisplay unit 0.1 Hz Analog input 0.024/50 Hz
Nominal switching frequency12 kHz
Speed drive output frequency0.5...200 Hz
Phases3 phase
IP degree of protectionIP20 on upper part without blanking plate on cover IEC 61800-5-1 IP20 on upper part without blanking plate on cover IEC 60529 IP21 IEC 61800-5-1 IP21 IEC 60529 IP41 on upper part IEC 61800-5-1 IP41 on upper part IEC 60529
Physical interface2-wire RS 485
Communication serviceRead device identification (43) Write single register (06) Read holding registers (03) 2 words maximum Time out setting from 0.1 to 100 s Write multiple registers (16) 2 words maximum Monitoring inhibitable
Communication port protocolLonWorks METASYS N2 APOGEE FLN Modbus BACnet
EMC filterWithout EMC filter
Pollution degree3 IEC 61800-5-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3
Operating altitude3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8
Depth5.9 in (150 mm)
Width5.6 in (142 mm)
Height7.2 in (184 mm)
StandardsIEC 61800-3 environments 1 category C2 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 2 category C1 UL Type 1 IEC 61800-3 environments 2 category C3 IEC 61800-5-1 IEC 61800-5-1 IEC 61800-3 environments 1 category C1 IEC 61800-3 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C3 IEC 61800-3 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 2 category C1 IEC 61800-3 environments 2 category C2
MarkingCE
Air flow17435.7 Gal/hr(US) (66 m3/h)
CategoryUS1CP4D22155
Data format8 bits, 1 stop, odd even or no configurable parity
Noise level51 dB 86/188/EEC
Option cardCommunication card LonWorks
Speed range1...10
Assembly styleWith heat sink
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Regulation loopAdjustable PI regulator
Torque accuracy+/- 15 %
Local signalling1 LED (red) for DC bus energized
Device short nameATV212
Transmission rate9600 bps or 19200 bps
Operating positionVertical +/- 10 degree
Transmission frameRTU
Number of addresses1...247
Product destinationAsynchronous motors
Prospective line isc5 kA
Specific applicationHVAC
Transient overtorque120 % of nominal motor torque +/- 10 % 60 s
Analogue input number2
Braking to standstillBy DC injection
Analogue output number1
Discrete output number2
Motor slip compensationAutomatic whatever the load Not available in voltage/frequency ratio motor control Adjustable
Environmental characteristicClasses 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3
Product specific applicationPumps and fans in HVAC
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Asynchronous motor control profileVoltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f
Acceleration and deceleration rampsLinear adjustable separately from 0.01 to 3200 s Automatic based on the load
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor)
Variable speed drive application selectionBuilding - HVAC compressor for scroll Building - HVAC fan Building - HVAC pump

Product details

Overview

The ATV212HU40M3X is a Schneider Altivar 212 AC drive rated 17.5 A output, 4 kW / 5 HP, on a 240 V three-phase input. It ships without an EMC filter and carries an IP21 enclosure with a heat sink style. Communication is handled via the built-in LonWorks, BACnet, Modbus, and METASYS N2 / APOGEE FLN protocols; the drive also accepts an optional LonWorks communication card.

The 17.5 A continuous output at 240 V three-phase matches a 4 kW / 5 HP motor load. The drive is sized for standard HVAC or pumping duty; the 120 N.m torque rating supports fan and pump curves without oversizing. For a 480 V three-phase supply, the sibling ATV212HU40N4 is the correct choice — it delivers the same 17.5 A / 4 kW rating but on 480 V input, avoiding a step-down transformer.
