Schneider Electric ATV320U02M2B
MPNATV320U02M2B
Active

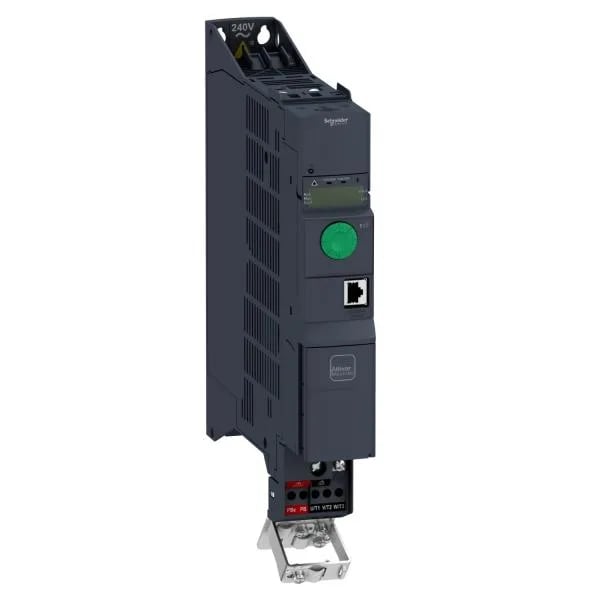

SCHNEIDER ELECTRIC Variable Frequency Drive: 240V AC, 1/4 hp Max Output Power, NEMA 1, No Bypass
$190.50 – $436.61Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Input phase breaks drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection drive |
| Range of product | Altivar Machine ATV320 |
| Relay output type | Configurable relay logic R1A 1 NO 100000 cycles Configurable relay logic R1B 1 NC 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO 100000 cycles Configurable relay logic R2C |
| Analogue input type | AI1 voltage 0...10 V DC 30 kOhm 10 bits AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits |
| Discrete input type | STO safe torque off, 24 V DC1.5 kOhm DI1...DI6 logic inputs, 24 V DC 30 V) DI5 programmable as pulse input 0...30 kHz, 24 V DC 30 V) |
| Analogue output type | Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits |
| Discrete output type | Open collector DQ+ 0...1 kHz 30 V DC 100 mA Open collector DQ- 0...1 kHz 30 V DC 100 mA |
| Product or component type | Variable speed drive |
| Maximum output voltage | 240 V |
| Supply voltage | 200...240 V - 15...10 % |
| Line current | 3.4 A 200 V heavy duty) 2.8 A 240 V heavy duty) |
| Nominal output current | 1.5 A |
All specifications
| Parameter | Value |
|---|---|
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Maximum input current per phase | 3.4 A |
| Base load current at high overload | 4.8 A |
| Apparent power | 0.7 kVA 240 V heavy duty) |
| Motor power | 0.18 kW heavy duty |
| Power dissipation in | Fan 19.0 W 200 V 4 kHz |
| Maximum horse power rating | 0.25 hp |
| Network frequency | 50-60 Hz |
| Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
| Maximum output frequency | 0.599 kHz |
| Nominal switching frequency | 4 kHz |
| Relative symmetric network frequency tolerance | 5 % |
| IP degree of protection | IP20 |
| Communication port protocol | Modbus serial CANopen |
| Mounting mode | Cabinet mount |
| EMC filter | Class C2 EMC filter integrated |
| Pollution degree | 2 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Depth | 9.6 in (245.0 mm) |
| Width | 1.8 in (45.0 mm) |
| Height | 12.8 in (325.0 mm) |
| Standards | IEC 61800-5-1 |
| Marking | CE ATEX UL CSA EAC RCM |
| Variant | Standard version |
| Category | US1CP4B22152 |
| Option card | communication module, CANopen communication module, EtherCAT communication module, Profibus DP V1 communication module, PROFINET communication module, Ethernet Powerlink communication module, EtherNet/IP communication module, DeviceNet |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Regulation loop | Adjustable PID regulator |
| Method of access | Slave CANopen |
| Operating position | Vertical +/- 10 degree |
| Format of the drive | Book |
| Discrete input logic | Positive logic (source) Negative logic (sink) |
| Overvoltage category | III |
| Prospective line isc | 1 kA |
| Transient overtorque | 170...200 % of nominal motor torque |
| Analogue input number | 3 |
| Braking to standstill | By DC injection |
| Discrete input number | 7 |
| Volume of cooling air | 2483.3 Gal/hr(US) (9.4 m3/h) |
| Analogue output number | 1 |
| Discrete output number | 3 |
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
| Brake chopper integrated | True |
| Product specific application | Complex machines |
| 4 quadrant operation possible | True |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| With sft fct safe stop 2 (SS2) | False |
| Ambient air transport temperature | -13...158 °F (-25...70 °C) |
| Synchronous motor control profile | Vector control without sensor |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
| Acceleration and deceleration ramps | Linear U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with derating factor |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| With safety function safe stop 1 (SS1) | True |
| With safety function safe position | False |
| With safety function safe direction | False |
| With safety function safe torque off | True |
| With safety function safe programmable logic | False |
| With safety function safe speed monitor | False |
| With safety function safe operating stop | False |
| With safety function safely limited speed | True |
| With safety function safely limited position | False |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
MPN
ATV320U02M2B
