| Line current | 2.8 A 240 V 1 phase 0.18 kW / 0.25 hp 3.4 A 200 V 1 phase 0.18 kW / 0.25 hp |
|---|
| Nominal output current | 1.5 A 4 kHz 240 V 0.18 kW / 0.25 hp |
|---|
| Maximum switching current | R1 3 A 250 V AC resistive, cos phi = 1 R1 4 A 30 V DC resistive, cos phi = 1 R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R2 5 A 250 V AC resistive, cos phi = 1 R2 5 A 30 V DC resistive, cos phi = 1 |
|---|
| Maximum transient current | 2.3 A 60 s 0.18 kW / 0.25 hp |
|---|
| Minimum switching current | 5 mA 24 V DC configurable relay logic |
|---|
| Apparent power | 0.7 kVA 240 V 1 phase 0.18 kW / 0.25 hp |
|---|
| Motor power | 0.18 kW 200...240 V |
|---|
| Maximum horse power rating | 0.25 hp 200...240 V |
|---|
| Output frequency | 0.0005...0.599 kHz |
|---|
| Supply frequency | 50...60 Hz - 5...5 % |
|---|
| Network frequency | 47.5...63 Hz |
|---|
| Switching frequency | 2...16 kHz adjustable |
|---|
| Nominal switching frequency | 4 kHz |
|---|
| Phases | 1 phase |
|---|
| IP degree of protection | IP20 EN/IEC 61800-5-1 |
|---|
| Physical interface | 2-wire RS 485 Modbus |
|---|
| Communication port protocol | Modbus CANopen |
|---|
| Electrical connection | Screw terminal 0.5...1.5 mm², AWG 18...AWG 14 control) Removable screw terminals 1.5...2.5 mm², AWG 14...AWG 12 motor/braking resistor) Screw terminal 1.5...4 mm², AWG 14...AWG 10 power supply) |
|---|
| Response time | LI1...LI6 8 ms +/- 0.7 ms logic R1A, R1B, R1C 2 ms relay R2A, R2C 2 ms relay |
|---|
| EMC filter | Class C2 EMC filter integrated |
|---|
| Pollution degree | 2 EN/IEC 61800-5-1 |
|---|
| Shock resistance | 15 gn 11 msEN/IEC 60068-2-27 |
|---|
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
|---|
| Operating altitude | 3280.84...6561.68 ft (1000...2000 m) with current derating 1 % per 100 m |
|---|
| Vibration resistance | 1 gn 13...200 Hz) EN/IEC 60068-2-6 1.5 mm peak to peak 3...13 Hz) EN/IEC 60068-2-6 |
|---|
| Depth | 9.6 in (245 mm) |
|---|
| Width | 1.8 in (45 mm) |
|---|
| Height | 12.8 in (325 mm) |
|---|
| Standards | EN/IEC 61800-3 EN 61800-3 environments 2 category C2 EN/IEC 61800-5-1 EN 61800-3 environments 1 category C2 EN 55011 class A group 1 |
|---|
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection |
|---|
| Marking | CE |
|---|
| Accuracy | +/- 0.2 % AI1, AI2, AI3) for a temperature of -10...60 °C +/- 0.5 % AI1, AI2, AI3) for a temperature of 25 °C +/- 1 % AO1) for a temperature of 25 °C +/- 2 % AO1) for a temperature of -10...60 °C |
|---|
| Category | 22000-Temporary Category for ITS Price Promotion |
|---|
| Insulation | Electrical between power and control |
|---|
| Noise level | 43 dB 86/188/EEC |
|---|
| Option card | Communication card CANopen daisy chain Communication card CANopen open style Communication card DeviceNet Communication card EtherNet/IP Communication card Profibus DP V1 |
|---|
| Speed range | 1...100 asynchronous motor in open-loop mode |
|---|
| Assembly style | With heat sink |
|---|
| Braking torque | <= 170 % with braking resistor |
|---|

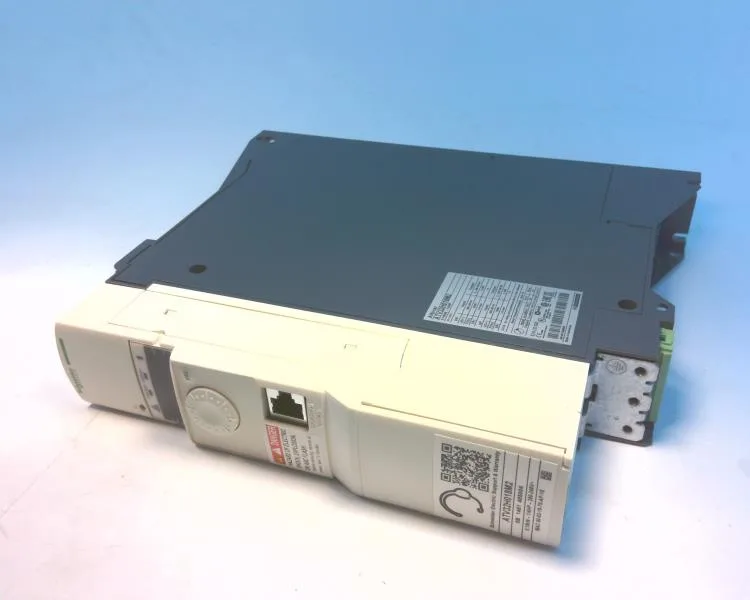

| Component name | ATV32 |
|---|
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
|---|
| Linearity error | +/- 0.2...0.5 % of maximum value AI1, AI2, AI3) +/- 0.3 % AO1) |
|---|
| Regulation loop | Adjustable PID regulator |
|---|
| Torque accuracy | +/- 15 % |
|---|
| Local signalling | 1 LED red drive voltage 1 LED green CANopen run 1 LED red CANopen error 1 LED red drive fault |
|---|
| Method of access | Slave CANopen |
|---|
| Sampling duration | 2 ms AI1, AI2, AI3) - analog 2 ms AO1) - analog |
|---|
| Tightening torque | 4.4 lbf.in (0.5 N.m), 4.4 lb/ft control) 6.2 lbf.in (0.7 N.m), 7.1 lb/ft motor/braking resistor) 5.3 lbf.in (0.6 N.m), 5.3 lb/ft power supply) |
|---|
| Operating position | Vertical +/- 10 degree |
|---|
| Transmission frame | RTU Modbus |
|---|
| Number of addresses | 1...127 CANopen 1...247 Modbus |
|---|
| Product destination | Asynchronous motors Synchronous motors |
|---|
| Discrete input logic | Negative logic (sink) LI1...LI6), > 19 V, < 13 V Positive logic (source) LI1...LI6), < 5 V, > 11 V |
|---|
| Prospective line isc | 1 kA 1 phase |
|---|
| Transient overtorque | 170...200 % |
|---|
| Analogue input number | 3 |
|---|
| Braking to standstill | By DC injection |
|---|
| Discrete input number | 7 |
|---|
| Analogue output number | 1 |
|---|
| Discrete output number | 3 |
|---|
| Motor slip compensation | Automatic whatever the load Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
|---|
| Product specific application | Complex machines |
|---|
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test, level 3 IEC 61000-4-5 Conducted radio-frequency immunity test, level 3 IEC 61000-4-6 Electrical fast transient/burst immunity test, level 4 IEC 61000-4-4 Electrostatic discharge immunity test, level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test, level 3 IEC 61000-4-3 Voltage dips and interruptions immunity test IEC 61000-4-11 |
|---|
| Synchronous motor control profile | Vector control without sensor |
|---|
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Flux vector control without sensor, standard Flux vector control without sensor - Energy Saving, NoLoad law |
|---|
| Acceleration and deceleration ramps | S Deceleration ramp automatic stop DC injection Ramp switching Linear Deceleration ramp adaptation CUS U |
|---|
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
|---|
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with derating factor |
|---|
