Overview

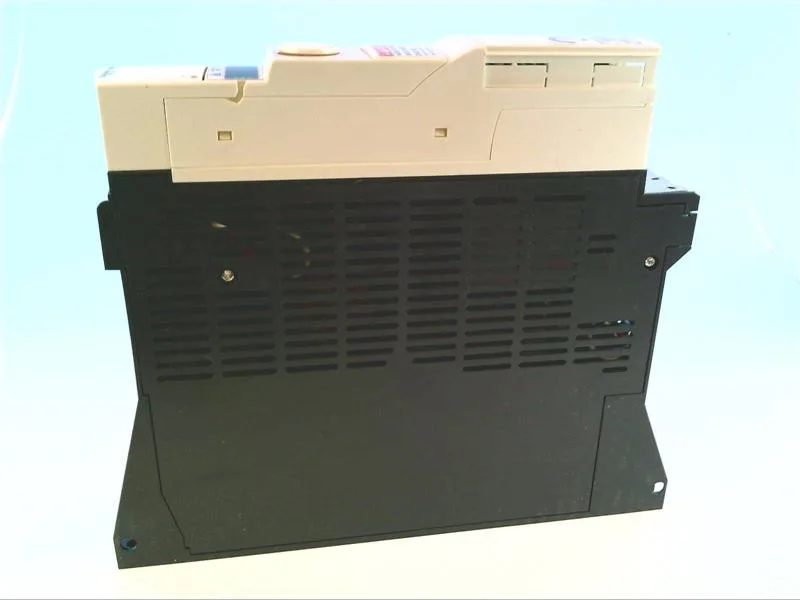

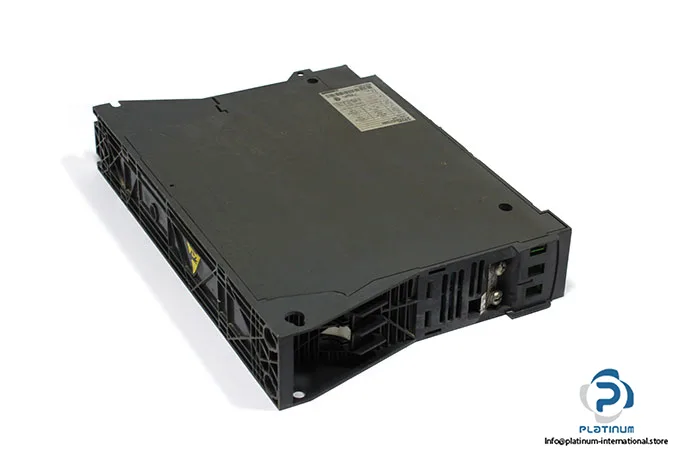

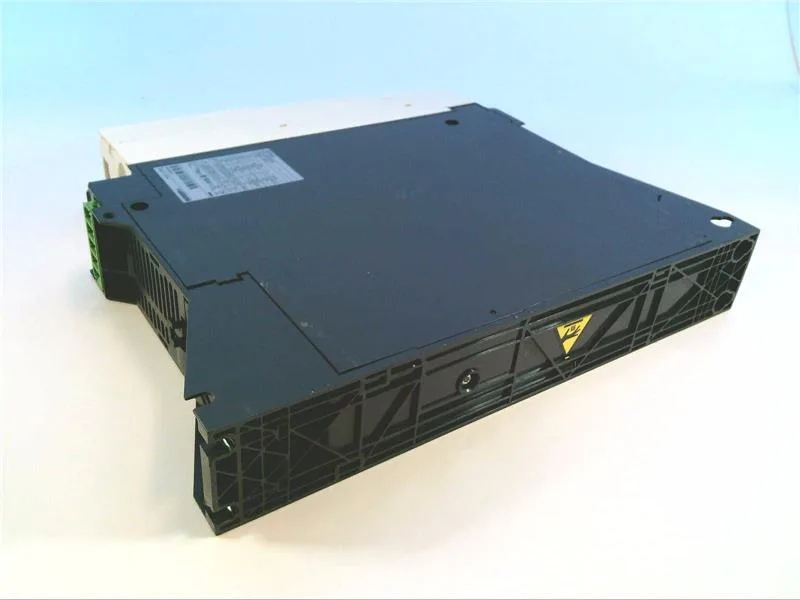

The ATV32H055N4 is a Schneider Altivar 32 variable speed drive rated 0.75 hp with a nominal output current of 1.9 A, designed for 3-phase supplies. The drive is housed in a compact frame A enclosure measuring 45.72 mm wide by 325.12 mm tall, with an IP20 rating suitable for clean indoor panel mounting.
Compared to the ATV32H037N4, the ATV32H055N4 delivers a higher output current of 1.9 A versus 1.5 A, and a higher power rating of 550 W versus 370 W, while sharing the same 45.72 mm width and 325.12 mm height for a drop-in panel fit.
Communication

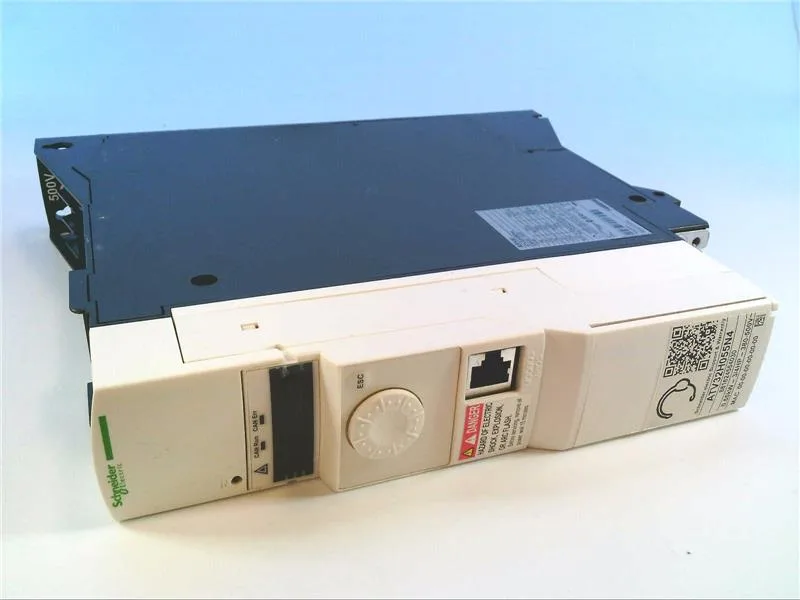

The drive supports CANopen and Modbus protocols via a front-face RJ45 connector and a 2-wire RS 485 interface, and can be configured as a CANopen slave with addresses 1 to 127.
Compliance
The ATV32H055N4 carries CE marking and integrates a Class C2 EMC filter, complying with EN 61800-3 environments 1 and 2 category C2, and EN/IEC 61800-5-1.
