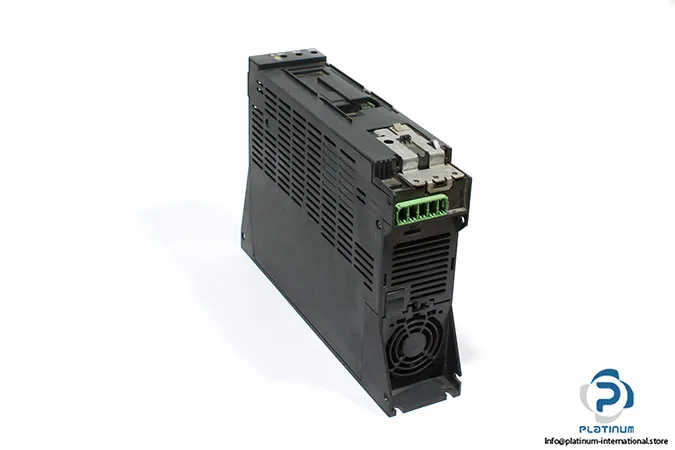

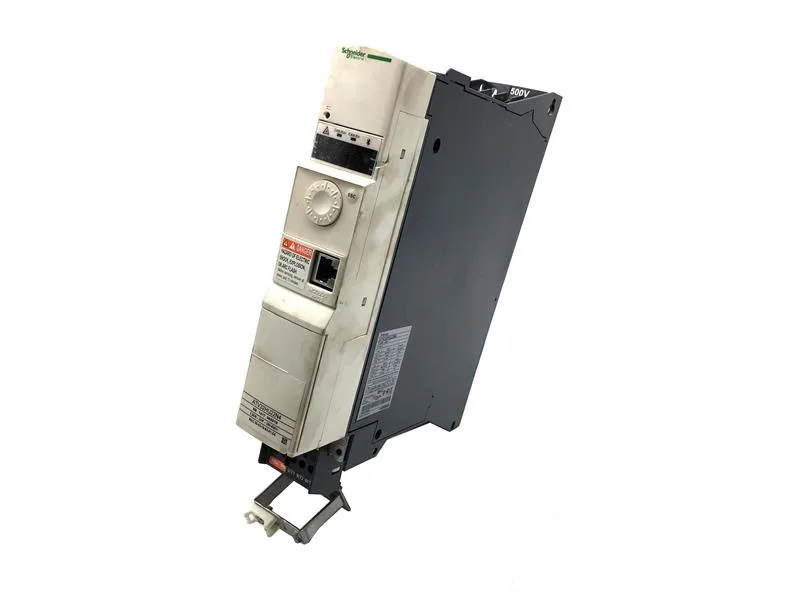

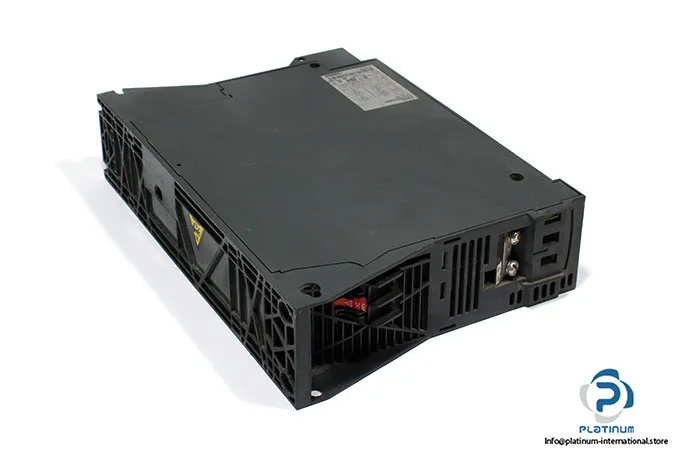

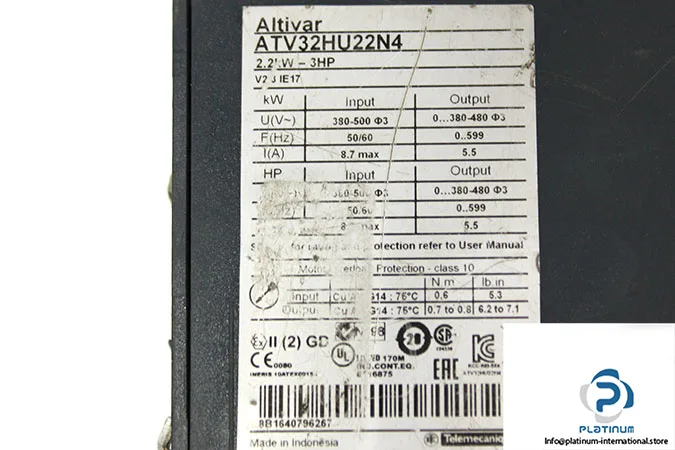

Schneider Electric ATV32HU22N4
MPNATV32HU22N4
Obsolete
TELEMECANIQUE ATV32HU22N4 VARIABLE SPEED DRIVE
$1,230.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | 1 RJ45 on front face)Modbus/CANopen |
| Protection type | Input phase breaks drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection drive |
| Range of product | Altivar 32 |
| Analogue input type | AI1 voltage 0...10 V DC 30000 Ohm 10 bits AI2 bipolar differential voltage +/- 10 V DC 30000 Ohm 10 bits AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits |
| Discrete input type | Programmable (sink/source) LI1...LI4)24...30 V DC level 1 PLC Programmable as pulse input 20 kpps LI5)24...30 V DC level 1 PLC Switch-configurable PTC probe LI6)24...30 V DC Safe torque off STO)24...30 V DC - 1500 Ohm |
| Analogue output type | AO1 software-configurable current 0...20 mA 800 Ohm 10 bits AO1 software-configurable voltage 0...10 V 470 Ohm 10 bits |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles Configurable relay logic R2A, R2B) NO - 100000 cycles Logic LO) |
| Type of polarization | No impedance Modbus |
| Product or component type | Variable speed drive |
| Output voltage | <= power supply voltage |
| Supply voltage limits | 323...550 V |
| Supply voltage | 380...500 V - 15...10 % |
All specifications
| Parameter | Value |
|---|---|
| Line current | 6.6 A 500 V 3 phase 2.2 kW / 3 hp 8.7 A 380 V 3 phase 2.2 kW / 3 hp |
| Nominal output current | 5.5 A 4 kHz 500 V 2.2 kW / 3 hp |
| Maximum switching current | R1 3 A 250 V AC resistive, cos phi = 1 R1 4 A 30 V DC resistive, cos phi = 1 R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R2 5 A 250 V AC resistive, cos phi = 1 R2 5 A 30 V DC resistive, cos phi = 1 |
| Maximum transient current | 8.3 A 60 s 2.2 kW / 3 hp |
| Minimum switching current | 5 mA 24 V DC configurable relay logic |
| Apparent power | 5.7 kVA 500 V 3 phase 2.2 kW / 3 hp |
| Motor power | 2.2 kW 380...480 V |
| Maximum horse power rating | 3 hp 380...480 V |
| Output frequency | 0.0005...0.599 kHz |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Switching frequency | 2...16 kHz adjustable |
| Nominal switching frequency | 4 kHz |
| Phases | 3 phase |
| IP degree of protection | IP20 EN/IEC 61800-5-1 |
| Physical interface | 2-wire RS 485 Modbus |
| Communication port protocol | Modbus CANopen |
| Electrical connection | Screw terminal 0.5...1.5 mm², AWG 18...AWG 14 control) Removable screw terminals 1.5...2.5 mm², AWG 14...AWG 12 motor/braking resistor) Screw terminal 1.5...4 mm², AWG 14...AWG 10 power supply) |
| Response time | LI1...LI6 8 ms +/- 0.7 ms logic R1A, R1B, R1C 2 ms relay R2A, R2C 2 ms relay |
| EMC filter | Class C2 EMC filter integrated |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Shock resistance | 15 gn 11 msEN/IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn 13...200 Hz) EN/IEC 60068-2-6 1.5 mm peak to peak 3...13 Hz) EN/IEC 60068-2-6 |
| Depth | 9.6 in (245 mm) |
| Width | 2.4 in (60 mm) |
| Height | 12.8 in (325 mm) |
| Standards | EN 55011 class A group 1 EN/IEC 61800-3 EN 61800-3 environments 1 category C2 EN/IEC 61800-5-1 EN 61800-3 environments 2 category C2 |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection |
| Marking | CE |
| Accuracy | +/- 0.2 % AI1, AI2, AI3) for a temperature of -10...60 °C +/- 0.5 % AI1, AI2, AI3) for a temperature of 25 °C +/- 1 % AO1) for a temperature of 25 °C +/- 2 % AO1) for a temperature of -10...60 °C |
| Category | US1CP4B22152 |
| Insulation | Electrical between power and control |
| Noise level | 43 dB 86/188/EEC |
| Option card | Communication card CANopen daisy chain Communication card CANopen open style Communication card DeviceNet Communication card EtherNet/IP Communication card Profibus DP V1 |
| Speed range | 1...100 asynchronous motor in open-loop mode |
| Functionality | Mid |
| Assembly style | With heat sink |
| Braking torque | <= 170 % with braking resistor |
| Component name | ATV32 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Linearity error | +/- 0.2...0.5 % of maximum value AI1, AI2, AI3) +/- 0.3 % AO1) |
| Regulation loop | Adjustable PID regulator |
| Torque accuracy | +/- 15 % |
| Local signalling | 1 LED red drive voltage 1 LED green CANopen run 1 LED red CANopen error 1 LED red drive fault |
| Method of access | Slave CANopen |
| Sampling duration | 2 ms AI1, AI2, AI3) - analog 2 ms AO1) - analog |
| Tightening torque | 4.4 lbf.in (0.5 N.m), 4.4 lb/ft control) 6.2 lbf.in (0.7 N.m), 7.1 lb/ft motor/braking resistor) 5.3 lbf.in (0.6 N.m), 5.3 lb/ft power supply) |
| Operating position | Vertical +/- 10 degree |
| Transmission frame | RTU Modbus |
| Number of addresses | 1...127 CANopen 1...247 Modbus |
| Product destination | Synchronous motors Asynchronous motors |
| Discrete input logic | Negative logic (sink) LI1...LI6), > 19 V, < 13 V Positive logic (source) LI1...LI6), < 5 V, > 11 V |
| Prospective line isc | 5 kA 3 phase |
| Specific application | Other applications |
| Transient overtorque | 170...200 % |
| Analogue input number | 3 |
| Braking to standstill | By DC injection |
| Discrete input number | 7 |
| Analogue output number | 1 |
| Discrete output number | 3 |
| Motor slip compensation | Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) Automatic whatever the load |
| Product specific application | Complex machines |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test, level 3 IEC 61000-4-5 Conducted radio-frequency immunity test, level 3 IEC 61000-4-6 Electrical fast transient/burst immunity test, level 4 IEC 61000-4-4 Electrostatic discharge immunity test, level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test, level 3 IEC 61000-4-3 Voltage dips and interruptions immunity test IEC 61000-4-11 |
| Synchronous motor control profile | Vector control without sensor |
| Asynchronous motor control profile | Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Flux vector control without sensor - Energy Saving, NoLoad law Voltage/frequency ratio, 2 points |
| Acceleration and deceleration ramps | S CUS Linear Deceleration ramp adaptation Ramp switching Deceleration ramp automatic stop DC injection U |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) without derating 122...140 °F (50...60 °C) with derating factor |
MPN
ATV32HU22N4
