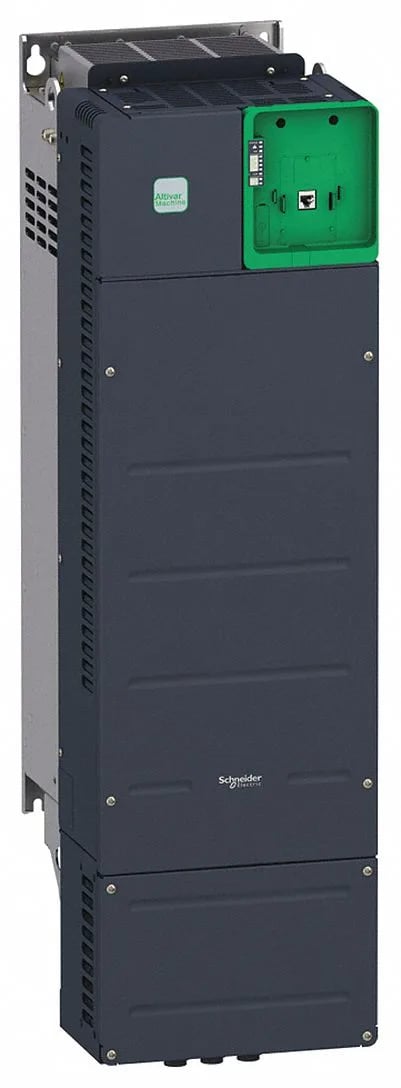

Schneider ATV340D55N4E Altivar Machine ATV340 drive, 75 kW, 106 A output

Name: ATV340D55N4E
Brand: Schneider Electric
SKU: ATV340D55N4E
Availability: LimitedAvailability

MPNATV340D55N4E

Active

Schneider ATV340D55N4E Motor Drives.

$4,088.00 – $11,345.38Ref. price · indicative, final on quote

Request quote

Schneider Electric ATV340D55N4E datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

ATV340D55N4E key specifications
Parameter	Value
Connector type	3 RJ45
Protection type	Thermal protection motor Safe torque off motor Motor phase loss motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent drive Output overcurrent between motor phase and earth drive Output overcurrent between motor phases drive Short-circuit between motor phase and earth drive Short-circuit between motor phases drive Motor phase loss drive DC Bus overvoltage drive Line supply overvoltage drive Line supply undervoltage drive Input supply loss drive Exceeding limit speed drive Break on the control circuit drive
Type of cooling	Forced convection
Range of product	Altivar Machine ATV340
Relay output type	Relay outputs R1A Relay outputs R1C 100000 cycles Relay outputs R2A Relay outputs R2C 100000 cycles
Analogue input type	AI1 software-configurable current 0...20 mA 250 Ohm 12 bits AI1 software-configurable temperature probe or water level sensor AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
Discrete input type	PTI safe torque off 0...30 kHz, 24 V DC 30 V) DI1...DI5 programmable as pulse input, 24 V DC 30 V)3.5 kOhm programmable
Analogue output type	Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Discrete output type	Programmable output DQ1, DQ2 30 V DC 100 mA
Type of polarization	No impedance
Product or component type	Variable speed drive
Output voltage	<= power supply voltage

All specifications

ATV340D55N4E additional specifications
Parameter	Value
Maximum output voltage	480 V
Supply voltage	380...480 V - 15...10 %
Line current	131.3 A 380 V with internal line choke normal duty) 112.7 A 480 V with internal line choke normal duty) 98.9 A 380 V with internal line choke heavy duty) 86.9 A 480 V with internal line choke heavy duty) 98.9 A 86.9 A
Nominal output current	106.0 A
Continuous output current	145 A 4 kHz normal duty 106 A 4 kHz heavy duty
Maximum switching current	Relay output R1C resistive, cos phi = 1 3 A 250 V AC Relay output R1C resistive, cos phi = 1 3 A 30 V DC Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC Relay output R2C resistive, cos phi = 1 5 A 250 V AC Relay output R2C resistive, cos phi = 1 5 A 30 V DC Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Maximum transient current	174 A 60 s normal duty) 159 A 60 s heavy duty) 174 A 2 s normal duty) 159 A 2 s heavy duty)
Minimum switching current	Relay output R1B 5 mA 24 V DC Relay output R2C 5 mA 24 V DC
Maximum input current per phase	131.3 A
Base load current at low overload	145.0 A
Base load current at high overload	106.0 A
Apparent power	93.7 kVA 480 V normal duty) 72.2 kVA 480 V heavy duty)
Motor power	75 kW normal duty 55 kW heavy duty
Power dissipation in	Natural convection 115 W 380 V 4 kHz heavy duty) Forced convection 917 W 380 V 4 kHz heavy duty) Natural convection 158 W 380 V 4 kHz normal duty) Forced convection 1359 W 380 V 4 kHz normal duty)
Maximum horse power rating	100 hp normal duty 75 hp heavy duty
Supply frequency	50...60 Hz +/- 5 %
Switching frequency	1...8 kHz adjustable 2.5...8 kHz with derating factor
Maximum output frequency	0.599 kHz
Nominal switching frequency	2.5 kHz
Phases	3 phase
IP rating	UL type 1
IP degree of protection	IP20
Physical interface	2-wire RS 485
Communication port protocol	EtherNet/IP Modbus TCP Modbus serial
Mounting mode	Wall mount
Electrical connection	Control screw terminal 0.75...1.5 mm² AWG 18...AWG 16 DC bus screw terminal 70...120 mm² AWG 1/0...250 kcmil Line side screw terminal 95...120 mm² AWG 3/0...250 kcmil Motor screw terminal 95...120 mm² AWG 3/0...250 kcmil
EMC filter	Class C3 EMC filter integrated
Pollution degree	2 IEC 61800-5-1
Operating altitude	<= 4800 m with current derating above 1000m
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Depth	12.2 in (309.0 mm)
Width	10.7 in (271.0 mm)
Height	35.7 in (908.0 mm)
Standards	IEC 61800-3 IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 618000-5-1 UL 508C IEC 61000-3-12
Marking	CE
Variant	Standard version
Category	US1CP4B22183
Isolation	Between power and control terminals
Data format	8 bits, configurable odd, even or no parity
Noise level	62.4 dB
Option card	communication module, PROFINET communication module, DeviceNet communication module, CANopen communication module, EtherCAT
Maximum THDI	<48 % 80 % load IEC 61000-3-12
Assembly style	With heat sink
Regulation loop	Adjustable PID regulator
Method of access	Slave Modbus RTU Slave Modbus TCP
Transmission rate	4.8 kbit/s 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s
Operating position	Vertical +/- 10 degree
Transmission frame	RTU
Number of addresses	1...247
Relay output number	3
Overvoltage category	Class III
Prospective line isc	50 kA
Analogue input number	3
Braking to standstill	By DC injection
Discrete input number	8
Volume of cooling air	77932.2 Gal/hr(US) (295.0 m3/h)
Analogue output number	2
Discrete output number	1.0
Motor slip compensation	Not available in permanent magnet motor law Automatic whatever the load Can be suppressed Adjustable
Number of preset speeds	16 preset speeds
Brake chopper integrated	True
Product specific application	Machine
4 quadrant operation possible	True
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
With sft fct safe stop 2 (SS2)	False
Ambient air transport temperature	-40...158 °F (-40...70 °C)
Synchronous motor control profile	Reluctance motor Permanent magnet motor
Asynchronous motor control profile	Variable torque standard Optimized torque mode Constant torque standard
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s S, U or customized
Ambient air temperature for storage	-40...158 °F (-40...70 °C)
Ambient air temperature for operation	5...122 °F (-15...50 °C) without derating vertical position) 122...140 °F (50...60 °C) with derating factor vertical position)
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
With safety function safe stop 1 (SS1)	True
With safety function safe position	False
With safety function safe direction	False
With safety function safe torque off	True
With safety function safe programmable logic	False
With safety function safe speed monitor	False
With safety function safe operating stop	False
With safety function safely limited speed	True
With safety function safely limited position	False
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz

Product details

Overview

The ATV340D55N4E: On the network side it speaks EtherNet/IP, Modbus TCP, and Modbus serial out of the box, and its control terminals include 3 analog inputs, 8 discrete inputs, 3 relay outputs, and 2 analog outputs. Safe torque off is built into the input stage.

I/O comparison vs ATV340D22N4

Compared to the ATV340D22N4, the ATV340D55N4E carries 3 analog inputs versus 2, 8 discrete inputs versus 5, and 2 analog outputs versus 1. That extra I/O matters when the application needs more feedback channels or multi-zone control without adding an expansion module.
