Schneider Electric ATV630D11M3

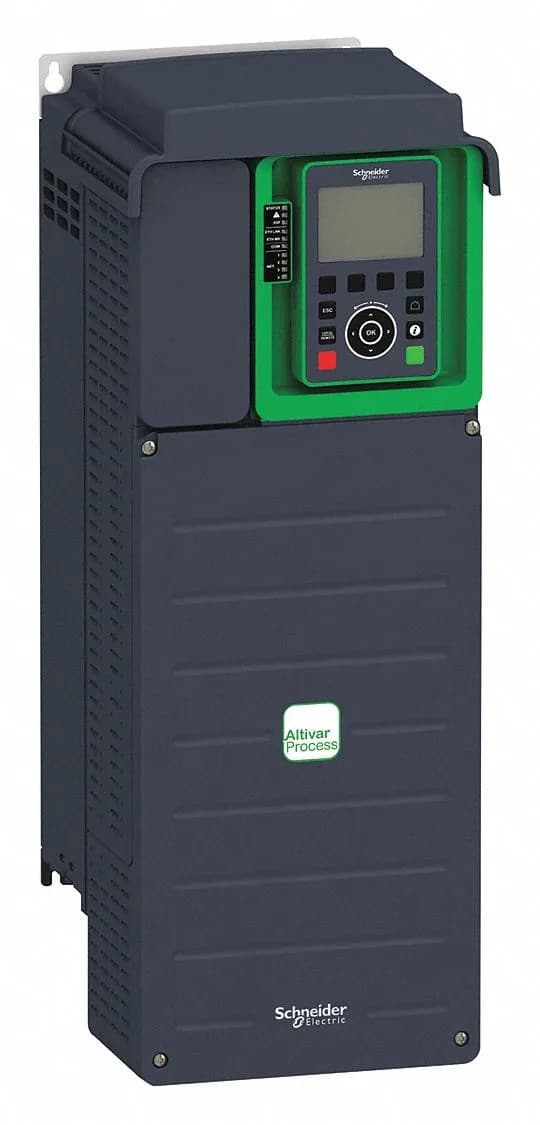

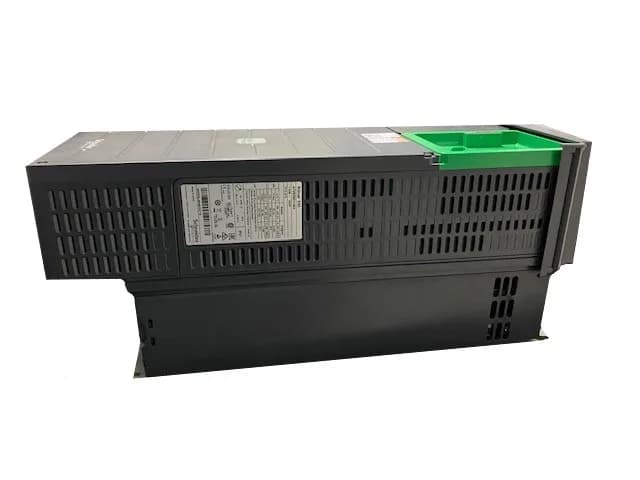

Schneider ATV630D11M3 Altivar Process Drive, 200-240V 46.8A

MPNATV630D11M3
Active

Schneider Altivar Process ATV630D11M3 variable speed drive, 200–240 V, 46.8 A continuous output (4 kHz), 11 kW normal duty / 7.5 kW heavy duty, IP21, STO SIL 3.

$1,242.06Ref. price · indicative, final on quote
Schneider Electric ATV630D11M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630D11M3 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Line current39.3 A 200 V normal duty) 32.9 A 240 V normal duty) 27.2 A 200 V heavy duty) 23.1 A 240 V heavy duty)
Nominal output current46.8 A
Continuous output current46.8 A 4 kHz normal duty 32.7 A 4 kHz heavy duty
Motor power11 kW normal duty) 7.5 kW heavy duty)
Maximum horse power rating15 hp normal duty 10 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630D11M3 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolEthernet Modbus serial Modbus TCP
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22206
Noise level59.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % from 80...100 % of load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air56798.008 Gal/hr(US) (215 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Integration note

The ATV630D11M3 is a standard version Altivar Process drive for asynchronous and synchronous motors. Supply 200–240 V, continuous output 46.8 A at 4 kHz (normal duty) rating 11 kW motor power. Heavy duty rating 32.7 A, 7.5 kW. Onboard communication includes Ethernet, Modbus serial, and Modbus TCP. Slot A accepts Profibus, PROFINET, DeviceNet, CANopen, and other modules for fieldbus integration. Safe torque off (STO) to SIL 3 is standard. Drive ships without EMC filter – plan external filter for CE compliance. Current production; source to order via RFQ.

Standards and physical envelope

Rated IP21, UL type 1. Vibration tested to 1.5 mm at 2–13 Hz and 1 gn at 13–200 Hz. Shock rated 15 gn for 11 ms. Compliance: UL 508C, IEC 61800-3 (environment 1 category C2, environment 2 category C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1. CE marked.

Mounting and cooling

Wall mount, vertical ±10° orientation. Forced convection cooling moves 215 m³/h air. Noise level 59.5 dB. Operating altitude 1000–4800 m with 1% current derating per 100 m above 1000 m.

Frequently asked questions

What compliance documentation does this drive carry?

It carries CE marking and complies with UL 508C, IEC 61800-3 (environments 1 and 2), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.

What are the key electrical ratings?

Supply 200–240 V, continuous output 46.8 A at 4 kHz normal duty (32.7 A heavy duty), motor power 11 kW normal duty / 7.5 kW heavy duty, output frequency 0.1–500 Hz.

MPN
ATV630D11M3
