The ATV630D11S6X is a 600V Altivar Process drive delivering 18 A continuous output (normal duty) — enough for a 15 hp induction motor on 600 V three-phase. Heavy duty rating drops to 13.5 A, 10 hp, for constant-torque loads that need sustained current at low speed. It includes STO (SIL 3) as a standard safety function, and the 8 discrete inputs include two programmable as pulse inputs up to 30 kHz. The drive is supplied without an internal EMC filter, so plan for an external line filter if conducted emissions limits apply.

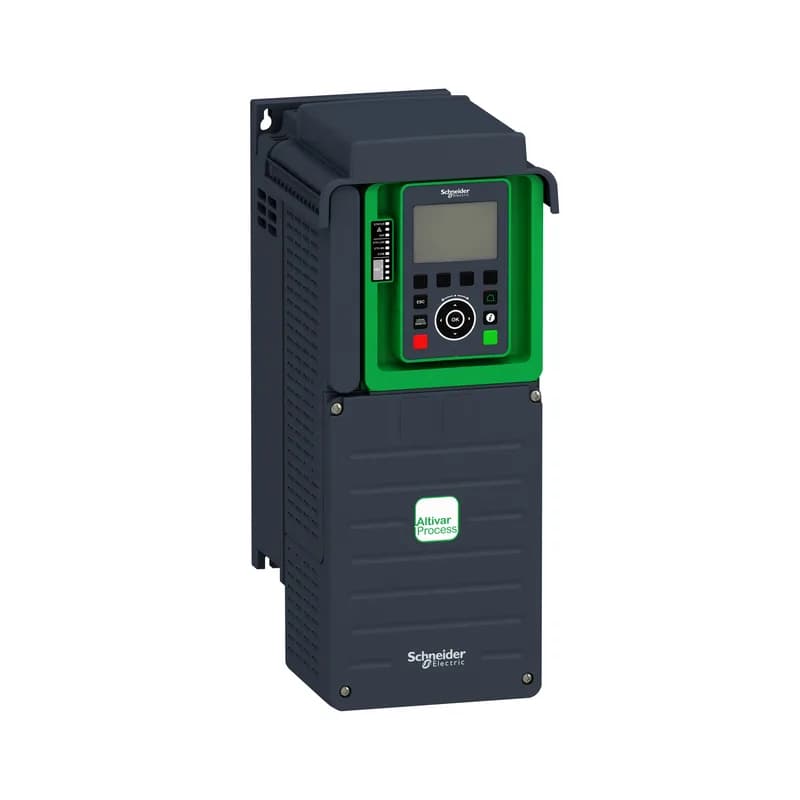

Schneider ATV630D11S6X Altivar Process Drive, 600V 18A
MPNATV630D11S6X
Active
Schneider Electric Altivar Process ATV630, Standard Version, 600V 18A, 15hp/10hp, IP21, without EMC filter.
$3,165.00 – $4,917.08Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Forced convection |
| Range of product | Altivar Process ATV600 |
| Discrete input type | DI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth |
| Product or component type | Variable speed drive |
| Supply voltage | 600 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Line current | 15.3 A 600 V normal duty) 11.1 A 600 V heavy duty) |
| Nominal output current | 18.0 A |
| Continuous output current | 18 A 4 kHz normal duty 13.5 A 4 kHz heavy duty |
| Maximum horse power rating | 15 hp 600 V normal duty 10 hp 600 V heavy duty |
| Supply frequency | 50...60 Hz - 5...5 % |
| Speed drive output frequency | 0.1...500 Hz |
All specifications
| Parameter | Value |
|---|---|
| Relative symmetric network frequency tolerance | 5 % |
| IP rating | UL type 1 UL 508C |
| IP degree of protection | IP21IEC 61800-5-1 IP21IEC 60529 |
| Communication port protocol | Modbus TCP Ethernet Modbus serial |
| Mounting mode | Wall mount |
| EMC filter | Without EMC filter |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m |
| Vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | UL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
| Variant | Standard version |
| Category | US1CP4E22276 |
| Noise level | 56 dB |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
| Maximum THDI | <48 % with external line choke IEC 61000-3-12 |
| Regulation loop | Adjustable PID regulator |
| Safety function | STO (safe torque off) SIL 3 |
| Device short name | ATV630 |
| Operating position | Vertical +/- 10 degree |
| Product destination | Asynchronous motors Synchronous motors |
| Overvoltage category | III |
| Discrete input number | 8 |
| Volume of cooling air | 27210.2 Gal/hr(US) (103 m3/h) |
| Product specific application | Process and utilities |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor) |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
Product details
Frequently asked questions
What variant is the ATV630D11S6X?
It is the Standard Version.
What compliance standards does the ATV630D11S6X meet?
It complies with UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1.
Does the ATV630D11S6X include an internal EMC filter?
No, it is supplied without EMC filter.
