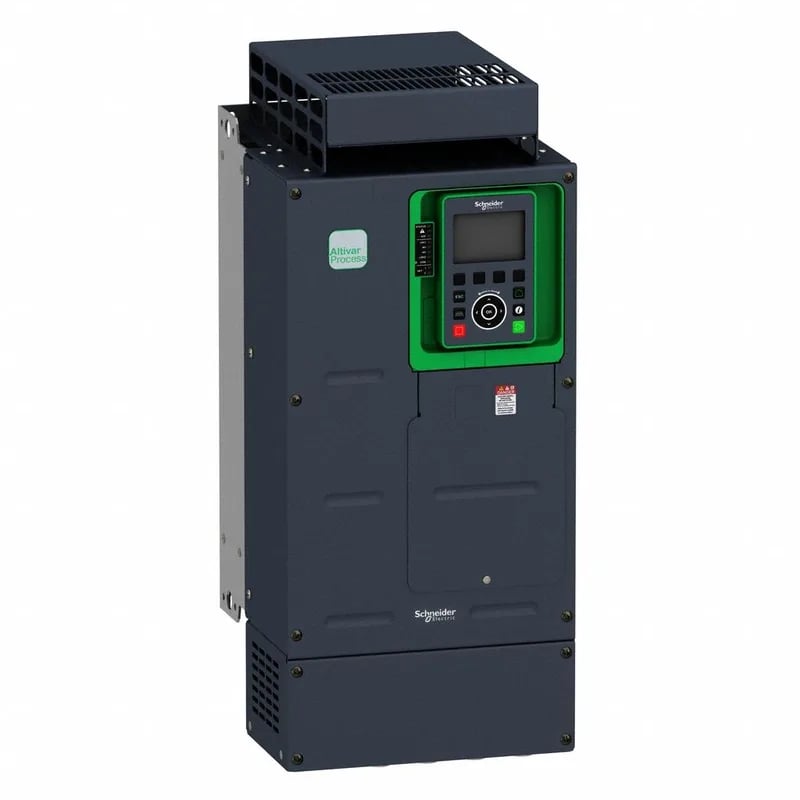

Schneider Electric ATV630D18S6

Schneider ATV630D18S6 Altivar 630 VFD, 25 hp, 600 V AC, 27 A

MPNATV630D18S6
Active

Schneider Electric Altivar 630 ATV630D18S6 variable frequency drive, 25 hp, 600 V AC, 27 A output, IP20, compact, standard version, without EMC filter, Modbus TCP/Modbus serial/Ethernet, LED display, wall mount.

$4,470.00 – $5,337.91Ref. price · indicative, final on quote
Schneider Electric ATV630D18S6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV630D18S6 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage600 V
Relative symmetric mains voltage tolerance10 %
Line current23.2 A 600 V normal duty) 19.6 A 600 V heavy duty)
Nominal output current27.0 A
Continuous output current27 A 4 kHz normal duty 22 A 4 kHz heavy duty
Maximum horse power rating25 hp 600 V normal duty 20 hp 600 V heavy duty
Supply frequency50...60 Hz - 5...5 %
Speed drive output frequency0.1...500 Hz

All specifications

ATV630D18S6 additional specifications
ParameterValue
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP20IEC 61800-5-1 IP20IEC 60529
Communication port protocolModbus TCP Modbus serial Ethernet
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22276
Noise level58 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % with external line choke IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air87178.3 Gal/hr(US) (330 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Overview

The ATV630D18S6 is a Schneider Altivar 630 compact drive rated 25 hp, 600 V AC output, 27 A continuous, built for constant or variable torque loads on three-phase 600 V AC input. It carries IP20 protection, survives 15 gn 11 ms shock per IEC 60068-2-27 and 10 m/s² vibration at 13...200 Hz, and ships without an EMC filter — plan for external filtering if line-side emissions are a concern.

The ATV630D18S6 provides 8 digital inputs (DI7, DI8 programmable as pulse input 0...30 kHz), 3 analog inputs, and 2 analog outputs — a richer digital count than the ATV930D75Y6 which offers 10 digital and 3 analog but lacks the dedicated pulse inputs. Option slots accept Profibus DP V1, PROFINET, DeviceNet, CANopen, Modbus TCP/EtherNet/IP, and Ethernet Powerlink modules; Modbus TCP and serial are onboard.

The ATV630D18S6 carries CE, CSA, UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61508, IEC 13849-1, RoHS, and REACH certifications — documentation covers functional safety and environmental compliance for panel builds.
