Schneider Electric ATV630D55M3

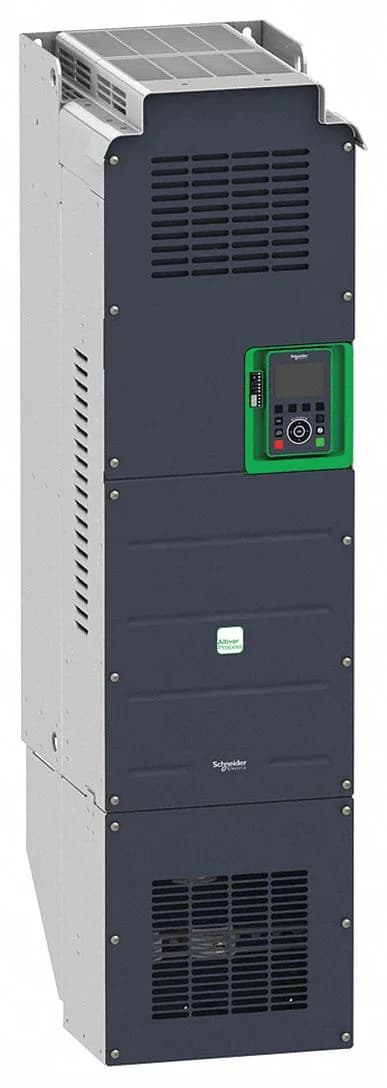

Schneider ATV630D55M3 Altivar 630 drive, 55 kW, 75 hp, 211 A

MPNATV630D55M3
Active

Schneider ATV630D55M3 Frequency Converters.

$3,928.11Ref. price · indicative, final on quote
Schneider Electric ATV630D55M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630D55M3 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Line current189 A 200 V normal duty) 161 A 240 V normal duty) 156 A 200 V heavy duty) 134 A 240 V heavy duty)
Nominal output current211.0 A
Continuous output current211 A 2.5 kHz normal duty 176 A 2.5 kHz heavy duty
Motor power55 kW normal duty) 45 kW heavy duty)
Maximum horse power rating75 hp normal duty 60 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630D55M3 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP degree of protectionIP00IEC 61800-5-1 IP00IEC 60529 IP21 with kit VW3A9704)IEC 61800-5-1 IP21 with kit VW3A9704)IEC 60529
Communication port protocolModbus TCP Ethernet Modbus serial
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)60 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22207
Noise level69.9 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air158506.07 Gal/hr(US) (600 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Overview

The ATV630D55M3 is a Schneider Altivar 630 compact variable speed drive rated for 55 kW (75 hp) continuous power, delivering 211 A output on a 240 V AC three-phase supply. It carries STO (safe torque off) SIL 3 as a standard safety function and is sealed to IP21 for clean indoor environments.

Selection vs ATV630D45M3

Compared to the ATV630D45M3 (45 kW / 60 hp, 176 A output), the ATV630D55M3 steps up to 55 kW and 211 A — a 22 % increase in output current. Choose the ATV630D55M3 when the motor load exceeds 60 hp or requires the higher current margin for constant-torque applications.

The drive is CE marked and complies with UL 508C, IEC 61800-3 (environment 1 category C2 and environment 2 category C3), IEC 61800-5-1, IEC 61508, and EN/IEC 13849-1. It also carries California Proposition 65 notification. An RFQ can confirm current production status and lead time.

MPN
ATV630D55M3
