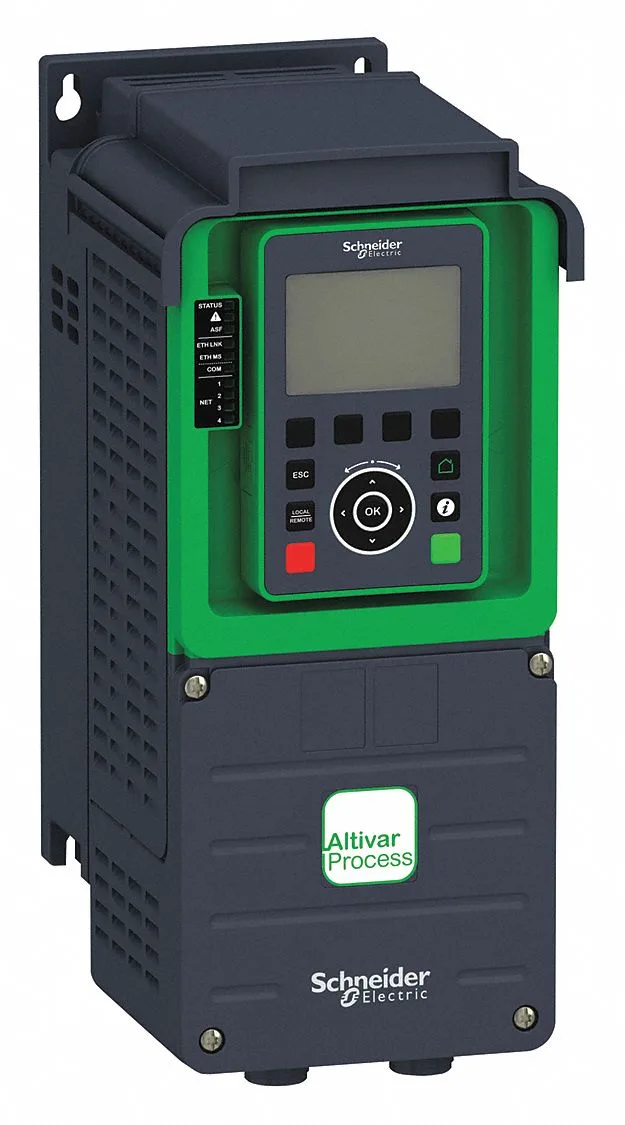

Schneider Electric ATV630U07M3

Schneider ATV630U07M3 VSD, 0.75 kW 200-240V

MPNATV630U07M3
Active

Schneider Altivar Process ATV630 standard version variable speed drive, 0.75 kW normal duty, 200-240 VAC, 4.6 A nominal output, IP21, wall mount, without EMC filter.

$334.01Ref. price · indicative, final on quote
Schneider Electric ATV630U07M3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630U07M3 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Line current3 A 200 V normal duty) 2.6 A 240 V normal duty) 1.7 A 200 V heavy duty) 1.5 A 240 V heavy duty)
Nominal output current4.6 A
Continuous output current4.6 A 4 kHz normal duty 3.3 A 4 kHz heavy duty
Motor power0.75 kW normal duty) 0.37 kW heavy duty)
Maximum horse power rating1 hp normal duty 0.5 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U07M3 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolModbus TCP Modbus serial Ethernet
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Drive Overview and Fieldbus Readiness

The Schneider ATV630U07M3 is an Altivar Process variable speed drive rated for 0.75 kW normal duty (0.37 kW heavy) on a 200-240 V supply, delivering 4.6 A continuous output at 4 kHz normal duty. It controls asynchronous and synchronous motors with an adjustable PID regulator, output frequency from 0.1 to 500 Hz. Onboard communication includes Modbus TCP, Modbus serial, and Ethernet; an option slot accepts Profibus DP, PROFINET, DeviceNet, CANopen, or additional I/O/relay modules. The drive integrates STO (safe torque off) certified to SIL 3, enabling integration into safety circuits without external safety relay for the torque-off function.

Rated for UL 508C and IEC 61800-3, pollution degree 2, overvoltage category III. EMC filter is not included by default, so external filtering may be needed for conducted emissions compliance in some installations.

Wall mount, IP21 enclosure, forced convection cooling. Ambient altitude derating applies above 1000 m (1% per 100 m). Operates in vertical position ±10°.

Frequently asked questions

What is the ATV630U07M3's listed marking?

CE marking.

What is the ATV630U07M3's listed variant?

Standard version.
