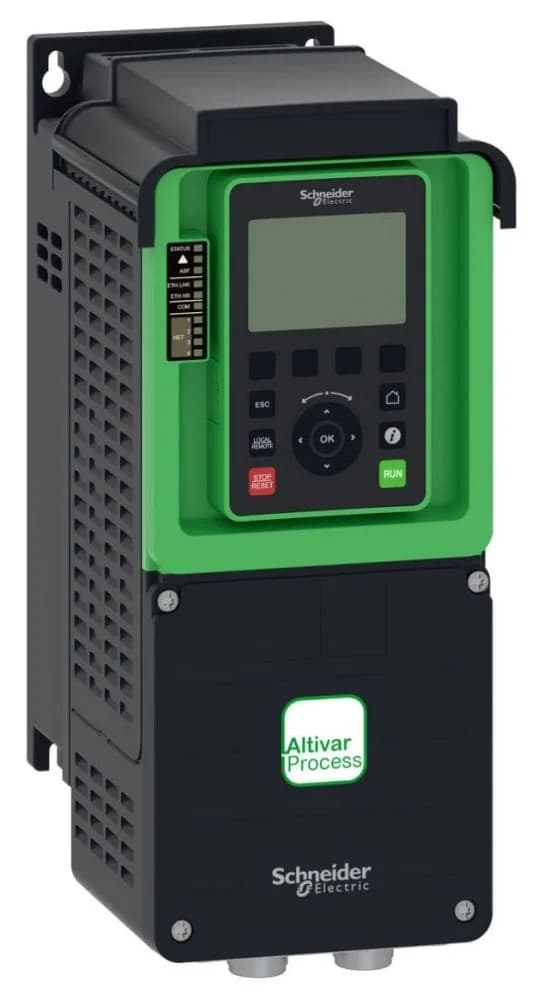

Schneider Electric ATV630U22M3

Schneider Electric ATV630U22M3 VSD, 2.2 kW normal duty, 200-

MPNATV630U22M3
Active

Schneider Electric Altivar Process ATV630 variable speed drive, standard variant, 2.2 kW normal duty / 1.5 kW heavy duty, 200-240 V, 11.2 A continuous, STO SIL 3, IP21, without EMC filter.

$461.01Ref. price · indicative, final on quote
Schneider Electric ATV630U22M3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV630U22M3 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Line current8.4 A 200 V normal duty) 7.2 A 240 V normal duty) 6 A 200 V heavy duty) 5.3 A 240 V heavy duty)
Nominal output current11.2 A
Continuous output current11.2 A 4 kHz normal duty 8 A 4 kHz heavy duty
Motor power2.2 kW normal duty) 1.5 kW heavy duty)
Maximum horse power rating3 hp normal duty 2 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U22M3 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolEthernet Modbus serial Modbus TCP
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV630U22M3 is a current-production variable speed drive from the Altivar Process ATV600 family, rated for 2.2 kW normal duty and 1.5 kW heavy duty on 200–240 V supply. Continuous output current is 11.2 A at 4 kHz for normal duty, 8 A for heavy duty — line current at rated voltage runs 8.4 A (200 V normal duty) down to 5.3 A (240 V heavy duty). This unit is the standard version (no EMC filter) and carries CE marking plus UL 508C / IEC 61800-3 compliance. The on-board communication ports cover Ethernet, Modbus serial, and Modbus TCP; slot A accepts optional Profibus DP, PROFINET, DeviceNet, CANopen, or EtherNet/IP modules. Safe Torque Off (STO) is integrated at SIL 3, removing the need for an external safety relay on that functional stop. For motor sizing, this drive handles 3 hp normal duty / 2 hp heavy duty. Output frequency spans 0.1–500 Hz, covering asynchronous and synchronous motors.

Integration callouts

Wall-mount, vertical ±10°, with IP21 protection and UL Type 1 enclosure. Forced-convection cooling moves roughly 38 m³/h of air; noise level is 54.5 dB. Operating altitude up to 1000 m without derating, then 1% per 100 m to 4800 m. The 8 discrete inputs include two that can be configured as 30 kHz pulse inputs. Slot A/B can hold I/O expansion or relay modules. The integrated PID regulator is adjustable for process loops.

Frequently asked questions

What fieldbus options are available?

Slot A accepts Profibus DP V1, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen (daisy chain RJ45, SUB-D 9, or screw terminals), and Ethernet Powerlink. On‑board Ethernet, Modbus serial, and Modbus TCP are standard.

Does the drive include a safety function?

Yes, Safe Torque Off (STO) integrated to SIL 3 per IEC 61800-5-2.

What compliance documentation is available?

CE marking, UL 508C, IEC 61800-3 (environment 1 category C2, environment 2 category C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. The standard variant does not include an internal EMC filter.

MPN
ATV630U22M3
