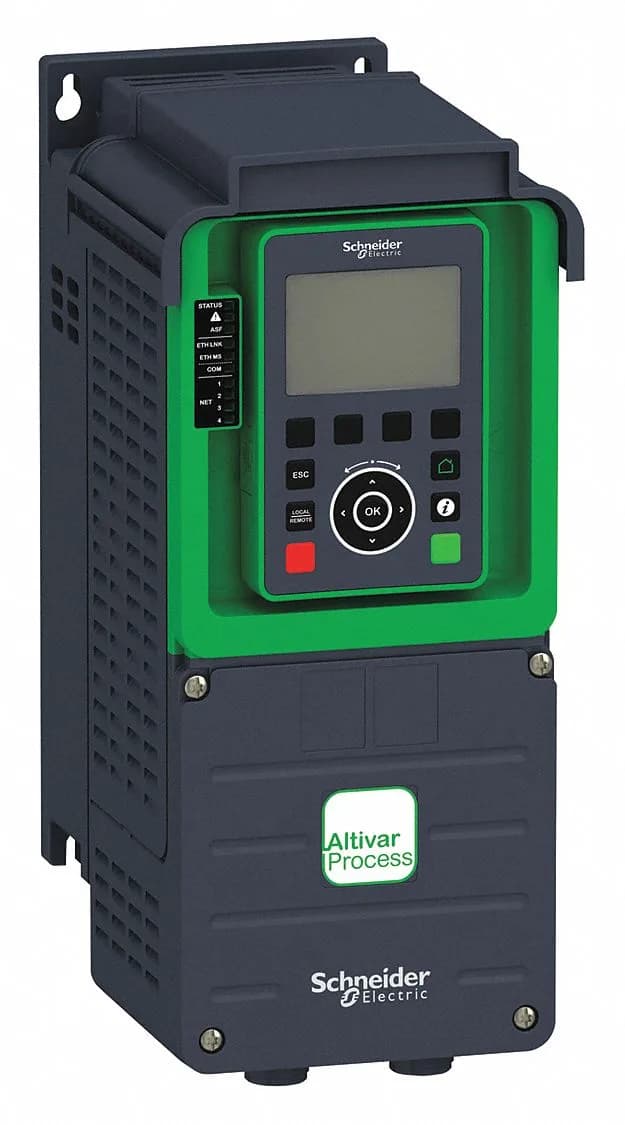

Schneider Electric ATV630U22N4

Schneider ATV630U22N4 Altivar Process VSD, 2.2 kW ND, 380-48

MPNATV630U22N4
Active

Schneider Electric Altivar Process ATV630U22N4 variable speed drive, 2.2 kW normal duty (1.5 kW heavy duty), 380...480 V AC, 5.6 A continuous output, IP21.

$524.51Ref. price · indicative, final on quote
Schneider Electric ATV630U22N4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630U22N4 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current4.3 A 380 V normal duty) 3.8 A 480 V normal duty) 3.1 A 380 V heavy duty) 2.9 A 480 V heavy duty)
Nominal output current5.6 A
Continuous output current5.6 A 4 kHz normal duty 4 A 4 kHz heavy duty
Motor power2.2 kW normal duty) 1.5 kW heavy duty)
Maximum horse power rating3 hp normal duty 2 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U22N4 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolModbus TCP Modbus serial Ethernet
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV630U22N4: Integrated EMC filter covers both IEC 61800-3 category C2 up to 50 m and category C3 up to 150 m of motor cable, which simplifies panel layout and eliminates an external filter for most installations.

Safety & Compliance

Communication & I/O Expansion

Slot A accepts optional communication modules: Profibus DP V1, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen (RJ45, SUB-D 9, screw terminals), Ethernet Powerlink, or BACnet MS/TP. Slot A and Slot B can also hold digital/analog I/O or output relay extension modules. The drive itself has 8 discrete inputs (DI7, DI8 programmable as pulse inputs up to 30 kHz) and built-in Modbus TCP, Modbus serial, and Ethernet.

Mechanical & Cooling

Wall mount with vertical ±10° orientation. Forced convection cooling moves 38 m³/h of air, and the noise level at full fan speed is 54.5 dB. IP21 / UL type 1 protection suits indoor panel installations. Altitude derating starts above 1000 m at 1 % per 100 m up to 4800 m. Ambient humidity should stay between 5 and 95 % without condensation.

The normal duty/heavy duty split (2.2 kW / 5.6 A vs 1.5 kW / 4 A) is the same physical hardware — switching between ND and HD is a parameter-setting decision that changes overload capability. For a constant-torque load requiring 4 A continuously, the HD rating gives more headroom with lower switching frequency.

Frequently asked questions

What is the ATV630U22N4's motor power rating?

It is rated 2.2 kW for normal duty and 1.5 kW for heavy duty, with corresponding continuous output currents of 5.6 A (ND) and 4 A (HD) at 4 kHz.

What compliance markings and certifications does the ATV630U22N4 carry?

It is CE marked and listed to UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, and IEC 60721-3, among others.
