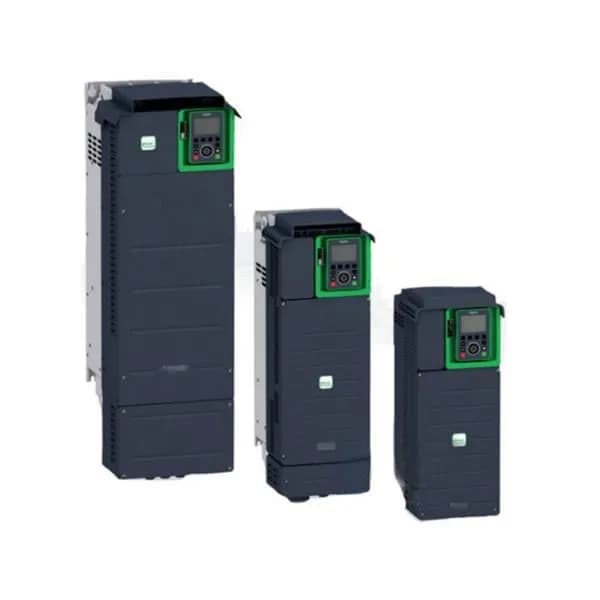

Schneider Electric ATV630U22S6X

Schneider ATV630U22S6X Altivar Process Drive, 600V 4.2A

MPNATV630U22S6X
Active

Schneider Electric Altivar Process ATV630, standard version, 600 V / 4.2 A, IP21, STO SIL3.

$1,845.00 – $2,822.61Ref. price · indicative, final on quote
Schneider Electric ATV630U22S6X datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV630U22S6X key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage600 V
Relative symmetric mains voltage tolerance10 %
Line current2.9 A 600 V normal duty) 2.1 A 600 V heavy duty)
Nominal output current4.2 A
Continuous output current4.2 A 4 kHz normal duty 3.1 A 4 kHz heavy duty
Maximum horse power rating3 hp 600 V normal duty 2 hp 600 V heavy duty
Supply frequency50...60 Hz - 5...5 %
Speed drive output frequency0.1...500 Hz

All specifications

ATV630U22S6X additional specifications
ParameterValue
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolModbus TCP Modbus serial Ethernet
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
VariantStandard version
CategoryUS1CP4E22276
Noise level56 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % with external line choke IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air27210.2 Gal/hr(US) (103 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Drive fit for a standard drop

The Schneider ATV630U22S6X is a standard version variable speed drive from the Altivar Process ATV600 series, built for asynchronous and synchronous motors. Rated supply voltage is 600 V, with a continuous output of 4.2 A at 4 kHz switching (normal duty) and 3.1 A at 4 kHz (heavy duty), covering motors up to 3 hp at 600 V normal duty. This unit ships without an internal EMC filter. An external line choke can keep total harmonic current distortion below 48% per IEC 61000-3-12. The integral STO (Safe Torque Off) function meets SIL 3 per IEC 61508 / IEC 13849-1, giving you a safety-rated torque cutoff without an external safety relay module for basic stop functions.

Bin- and consignment-ready

The drive is UL 508C listed and complies with IEC 61800-3 (EMC), 61800-5-1 (safety), and 61000-3-12 (harmonic limits with external line choke), covering most North American and European installation requirements in one unit.

Mounting and cooling

Wall-mounted with forced convection cooling moving 27210.2 gal/h (103 m³/h) of air. Mount vertically within ±10°. IP21 protection (IEC 60529) and UL Type 1 enclosure make it suitable for clean indoor panels. Remote communication modules plug into Slot A, where you can install Profibus DP, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen, or Ethernet Powerlink without changing the base drive.

Frequently asked questions

What are the key electrical ratings of this drive?

It operates on a 600 V supply, delivers 4.2 A continuous output at 4 kHz (normal duty) and 3.1 A at 4 kHz (heavy duty), suitable for motors up to 3 hp normal duty and 2 hp heavy duty.

What compliance standards does ATV630U22S6X meet?

It is UL 508C listed and complies with IEC 61800-3 (EMC), IEC 61800-5-1 (safety), IEC 61000-3-12 (harmonic currents with external choke), IEC 60721-3 (environmental), and IEC 61508 / IEC 13849-1 (functional safety).
