Schneider Electric ATV630U30M3

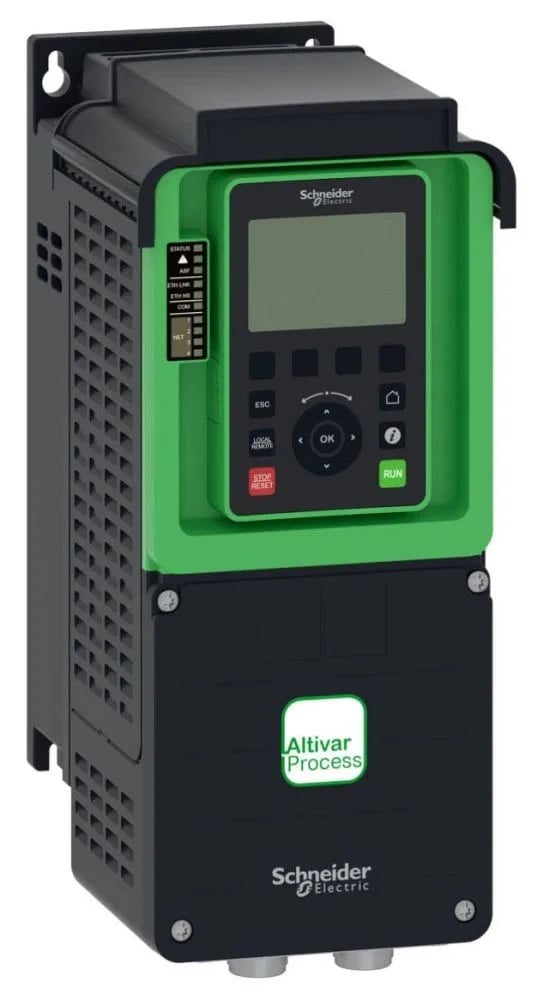

ATV630U30M3 Altivar Process VFD, 200-240V, 3hp HD

MPNATV630U30M3
Active

ATV630U30M3, Altivar Process ATV600 variable speed drive, 200-240 V, 13.7 A output, 3 HP heavy duty, CE marked, Standard variant, without EMC filter.

$567.69Ref. price · indicative, final on quote
Schneider Electric ATV630U30M3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV630U30M3 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Line current11.5 A 200 V normal duty) 9.9 A 240 V normal duty) 8.7 A 200 V heavy duty) 7.6 A 240 V heavy duty)
Nominal output current13.7 A
Continuous output current13.7 A 4 kHz normal duty 11.2 A 4 kHz heavy duty
Motor power3 kW normal duty) 2.2 kW heavy duty)
Maximum horse power rating3 hp heavy duty 4 hp normal duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U30M3 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolModbus TCP Ethernet Modbus serial
Mounting modeWall mount
EMC filterWithout EMC filter
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV630U30M3 variable speed drive from the Altivar Process ATV600 range runs on a 200-240 V supply and is rated for 3 hp heavy duty (2.2 kW) or 4 hp normal duty (3 kW). Continuous output current sits at 13.7 A at 4 kHz for normal duty, 11.2 A for heavy duty – that's the thermal ceiling you design to. It's CE marked, standard variant, and shipped without an EMC filter, so plan on adding external filtering if the installation falls under IEC 61800-3 environment 1 category C2.

Mounting and cooling

Wall mount only, vertical within 10°. Forced convection needs 38 m³/h of free air – don't box it in without a fan. At altitudes above 1000 m, derate output current 1% per 100 m up to 4800 m. Shock rated 15 gn, 11 ms; vibration 1.5 mm pk-pk at 2–13 Hz, 1 gn at 13–200 Hz.

Comes with Modbus serial and Modbus TCP/Ethernet onboard. Slot A accepts optional Profibus DP, PROFINET, DeviceNet, CANopen, or Ethernet IP modules. Eight digital inputs, one configurable as a 0-30 kHz pulse input. A built-in PID regulator handles closed-loop control without an external controller.

Frequently asked questions

What compliance documentation is available for this drive?

The drive is CE marked and complies with UL 508C, IEC 61800-3 (environment 1 category C2, environment 2 category C3), IEC 61800-5-1, IEC 61000-3-12, and IEC 60721-3. It includes STO SIL 3 per IEC 61508/IEC 13849-1.
