Schneider Electric ATV630U30N4

Schneider ATV630U30N4 Altivar Process Drive, 380-480 V, 7.2

MPNATV630U30N4
Active

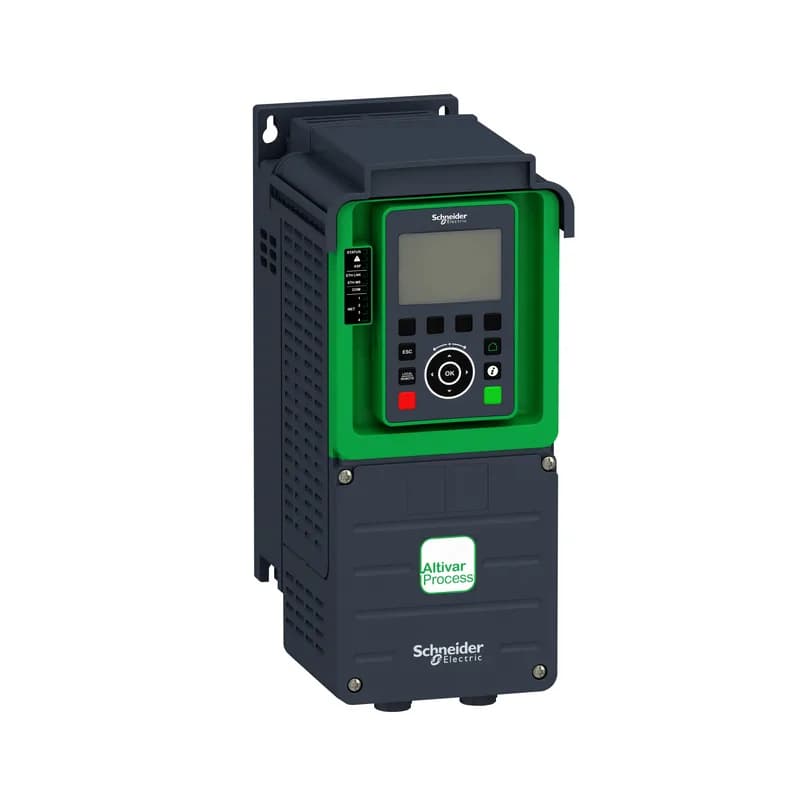

Schneider Electric Altivar Process ATV630 drive, 380-480 V, 7.2 A output, standard version, CE.

$556.00Ref. price · indicative, final on quote
Schneider Electric ATV630U30N4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630U30N4 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current5.8 A 380 V normal duty) 5.1 A 480 V normal duty) 4.5 A 380 V heavy duty) 4 A 480 V heavy duty)
Nominal output current7.2 A
Continuous output current7.2 A 4 kHz normal duty 5.6 A 4 kHz heavy duty
Motor power3 kW normal duty) 2.2 kW heavy duty)
Maximum horse power rating3 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U30N4 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolEthernet Modbus TCP Modbus serial
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV630U30N4 is a standard-variant variable speed drive from the Altivar Process ATV600 series, rated for 380...480 V supply and delivering 7.2 A continuous output current (normal duty at 4 kHz). Motor power is 3 kW normal duty, 2.2 kW heavy duty, with heavy-duty rating at 5.6 A.

Carries CE marking and complies with UL 508C, IEC 61800-3 (environments C2 and C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. The safety function includes STO (safe torque off) to SIL 3, a requirement for many machinery directives.

Mounts vertically in a wall-mount configuration. Cooling is forced convection; expect 54.5 dB noise and about 38 m³/h airflow. The integrated EMC filter covers IEC 61800-3 category C2 for cable runs up to 50 m and C3 for runs up to 150 m — no external filter required for those lengths. Derate the output current by 1% per 100 m altitude above 1000 m, up to 4800 m. Communication ports are Ethernet, Modbus TCP, and Modbus serial onboard. Slot A accepts optional Profibus DP, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen (RJ45, SUB-D 9, screw terminals), Ethernet Powerlink, or BACnet MS/TP modules. Slot A/B also accepts digital/analog I/O extension and relay output modules. Discrete inputs include two configurable as pulse inputs up to 30 kHz.

Frequently asked questions

What compliance standards does the ATV630U30N4 meet?

It is CE marked and complies with UL 508C, IEC 61800-3 (environment categories C2 and C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. Safety function includes STO to SIL 3.

What is the rated motor power for this drive?

3 kW normal duty, 2.2 kW heavy duty. The continuous output current is 7.2 A at normal duty (4 kHz) and 5.6 A at heavy duty.

What EMC filter is integrated?

An integrated EMC filter that achieves IEC 61800-3 category C2 with cable runs up to 50 m and category C3 up to 150 m.

Does the drive support safety functions?

Yes, it includes Safe Torque Off (STO) rated to SIL 3.

MPN
ATV630U30N4
