Schneider Electric ATV630U40N4

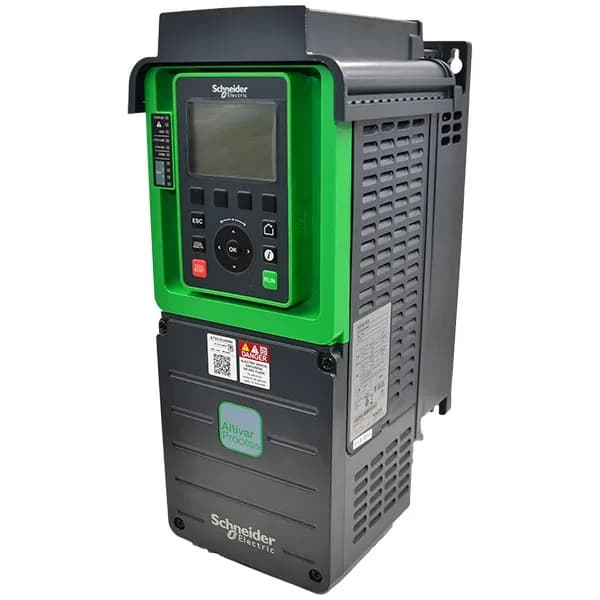

Schneider ATV630U40N4 Altivar Process Drive, 4 kW, 380-480V

MPNATV630U40N4
Active

Schneider Electric Altivar Process ATV630, variable speed drive, 380…480 V, 4 kW normal duty / 3 kW heavy, 9.3 A continuous output, STO SIL3, integrated EMC filter, wall mount.

$622.30Ref. price · indicative, final on quote
Schneider Electric ATV630U40N4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630U40N4 key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current7.6 A 380 V normal duty) 6.7 A 480 V normal duty) 6 A 380 V heavy duty) 5.4 A 480 V heavy duty)
Nominal output current9.3 A
Continuous output current9.3 A 4 kHz normal duty 7.2 A 4 kHz heavy duty
Motor power4 kW normal duty) 3 kW heavy duty)
Maximum horse power rating5 hp normal duty 4 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U40N4 additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 1 UL 508C
IP degree of protectionIP21IEC 61800-5-1 IP21IEC 60529
Communication port protocolEthernet Modbus serial Modbus TCP
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV630U40N4 is a variable speed drive from the Altivar Process ATV600 series, designed to run asynchronous and synchronous motors in process and utility applications. It's rated for a 380…480 V supply and delivers 9.3 A continuous output in normal duty at 4 kHz switching, or 7.2 A in heavy duty – that's 4 kW normal / 3 kW heavy motor power. Out here on the lube route, that kind of headroom means the drive can handle a slightly overloaded pump without tripping, as long as the duty cycle stays within the heavy-duty envelope.

Heavy vs normal duty – what that means for sourcing

The difference between normal duty (9.3 A at 4 kHz) and heavy duty (7.2 A at 4 kHz) isn't just a spec sheet number – it's the practical limit for continuous operation under a constant torque load. If you're freezing a BOM for a conveyor with a steady load, the heavy-duty current is your real-world ceiling. The normal-duty figure assumes a more forgiving load profile, like a fan or centrifugal pump. For procurement, if the motor nameplate FLA sits between 7.2 and 9.3 A, you need to confirm the duty class before committing the order.

Integration notes – slots, cooling, and mounting

Wall-mount the unit vertically within ±10°, and allow forced convection to do its job – the drive needs about 38 m³/h of cooling air. Slot A takes communication modules: Profibus DP V1, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen, or BACnet MS/TP. Slot A/B also accepts digital/analog I/O and relay extension cards. For a controls integrator, that means you can pick the fieldbus slice without changing the base drive. The STO safety function is SIL 3 rated, so you can feed safe torque off through a safety PLC without an external relay. Shock rated at 15 gn for 11 ms – tough enough for the route.

Frequently asked questions

What is the ATV630U40N4's marking and variant?

The marking is CE, and the variant is Standard version.

What compliance documentation does this drive carry?

The drive complies with UL 508C, IEC 61800-3 (environment 1 category C2, environment 2 category C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. Full certification is listed on the nameplate.
