Schneider Electric ATV630U55N4ZU

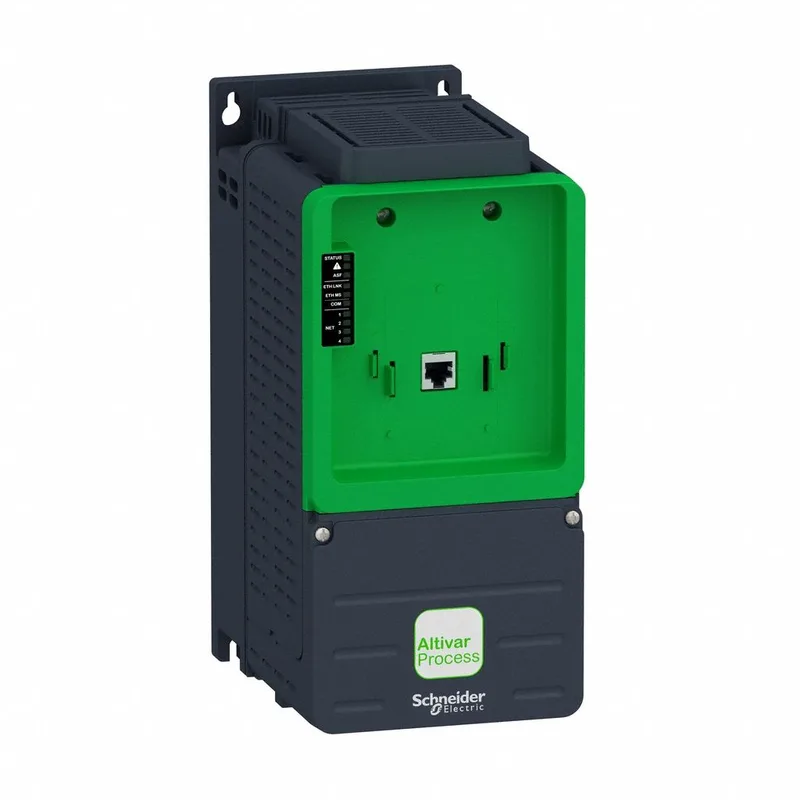

Schneider ATV630U55N4ZU VSD, 5.5 kW Normal Duty

MPNATV630U55N4ZU
Active

Schneider Electric Altivar Process ATV600 standard version, ATV630U55N4ZU, 5.5 kW normal duty / 4 kW heavy duty, 380...480 V supply, IP20, integrated EMC filter, STO SIL3.

$2,033.70Ref. price · indicative, final on quote
Schneider Electric ATV630U55N4ZU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV630U55N4ZU key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current10.4 A 380 V normal duty) 9.1 A 480 V normal duty) 8 A 380 V heavy duty) 7.2 A 480 V heavy duty)
Nominal output current12.7 A
Continuous output current12.7 A 4 kHz normal duty 9.3 A 4 kHz heavy duty
Motor power5.5 kW normal duty) 4 kW heavy duty)
Maximum horse power rating7.5 hp normal duty 5 hp heavy duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV630U55N4ZU additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP degree of protectionIP20IEC 61800-5-1 IP20IEC 60529
Communication port protocolModbus serial Modbus TCP Ethernet
Mounting modeCabinet mount
EMC filterIntegrated 32.8 ft (10 m) IEC 61800-3 category C2 Integrated 164.04 ft (50 m) IEC 61800-3 category C3 With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
MarkingCE
VariantStandard version
CategoryUS1CP4E22205
Noise level54.5 dB
Option cardSlot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink
Maximum THDI<48 % full load IEC 61000-3-12
Assembly styleWith heat sink
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV630
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Volume of cooling air10038.7 Gal/hr(US) (38 m3/h)
Product specific applicationProcess and utilities
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

At a glance: ATV630U55N4ZU

380–480 V three-phase input. Motor rated at 5.5 kW normal duty, 4 kW heavy duty. Line current pulls 10.4 A at 380 V normal duty, 9.1 A at 480 V normal duty. Integrated EMC filter handles IEC 61800-3 C2 up to 10 m cable, C3 up to 50 m with EMC plate. Safety function STO SIL3 is onboard. Standard version — no frills, but the essentials are covered. Continuous output current is 12.7 A at 4 kHz in normal duty, 9.3 A at 4 kHz in heavy duty. Output frequency range 0.1…500 Hz with adjustable PID regulator for process loops. Communication ports: Modbus serial and Modbus TCP/Ethernet on board. Slot A accepts Profibus DP, PROFINET, DeviceNet, CANopen, or Ethernet IP/Modbus TCP option cards. Eight digital inputs, one of them programmable pulse input up to 30 kHz.

Cabinet fit and thermal

Cabinet mount with heatsink, forced convection cooling at 38 m³/h. IP20 enclosure. Vertical mounting ±10°. Ambient conditions: 5–95% RH non-condensing, altitude up to 1000 m without derating, then 1% per 100 m. Noise level 54.5 dB. Cooling air volume is significant — ensure cabinet has adequate ventilation.

CE marked. Certified to UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61508, IEC 13849-1. EMI environment: C2 for first 10 m, C3 for 50 m. Shock resistance 15 gn 11 ms, vibration resistance per IEC 60068-2-6.
