Safety & compliance — one less headache
The drive carries UL 508C, IEC 61800-3 (environments 1 and 2), IEC 61800-5-1, IEC 61508, and IEC 13849-1. That covers most North American and European panel approvals without a second round of paperwork.

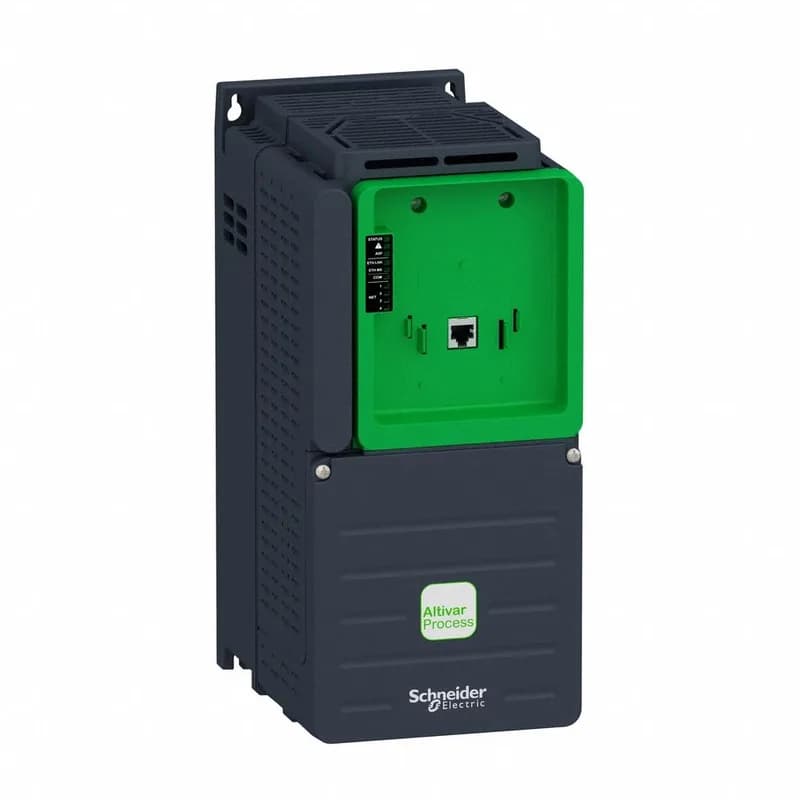

Schneider ATV630U75N4ZU Altivar Process, 7.5 kW, 380-480 V,
MPNATV630U75N4ZU
Active
Schneider Electric Altivar Process ATV630, variable speed drive, 7.5 kW normal duty / 5.5 kW heavy duty, 380-480 V, 16.5 A continuous, IP20, integrated EMC filter (C2/C3), STO SIL 3.
$1,675.00 – $2,167.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Forced convection |
| Range of product | Altivar Process ATV600 |
| Discrete input type | DI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth |
| Product or component type | Variable speed drive |
| Supply voltage | 380...480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Line current | 13.8 A 380 V normal duty) 11.9 A 480 V normal duty) 10.5 A 380 V heavy duty) 9.2 A 480 V heavy duty) |
| Nominal output current | 16.5 A |
| Continuous output current | 16.5 A 4 kHz normal duty 12.7 A 4 kHz heavy duty |
| Motor power | 7.5 kW normal duty) 5.5 kW heavy duty) |
| Maximum horse power rating | 10 hp normal duty 7.5 hp heavy duty |
| Supply frequency | 50...60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Speed drive output frequency | 0.1...500 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| IP degree of protection | IP20IEC 61800-5-1 IP20IEC 60529 |
| Communication port protocol | Ethernet Modbus serial Modbus TCP |
| Mounting mode | Cabinet mount |
| EMC filter | Integrated 32.8 ft (10 m) IEC 61800-3 category C2 Integrated 164.04 ft (50 m) IEC 61800-3 category C3 With EMC plate option |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m |
| Vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | UL 508C IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
| Marking | CE |
| Variant | Standard version |
| Category | US1CP4E22205 |
| Noise level | 56 dB |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
| Maximum THDI | <48 % from 80...100 % of load IEC 61000-3-12 |
| Assembly style | With heat sink |
| Regulation loop | Adjustable PID regulator |
| Safety function | STO (safe torque off) SIL 3 |
| Device short name | ATV630 |
| Operating position | Vertical +/- 10 degree |
| Product destination | Asynchronous motors Synchronous motors |
| Overvoltage category | III |
| Discrete input number | 8 |
| Volume of cooling air | 27210.2 Gal/hr(US) (103 m3/h) |
| Product specific application | Process and utilities |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor) |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
Product details
Frequently asked questions
What marking is listed for ATV630U75N4ZU?
The marking is CE, per the standard version variant.
What compliance documentation does this drive carry?
It carries UL 508C, IEC 61800-3 (environment 1 category C2 and environment 2 category C3), IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, and IEC 13849-1. The EMC filter is integrated and meets those emission limits.
