Schneider ATV650D11N4U Altivar Process 11kW Drive, IP55

MPNATV650D11N4U
Active

Schneider Electric Altivar Process ATV650, ATV650D11N4U, variable speed drive, 11 kW normal duty, 7.5 kW heavy duty, 380-480 V, IP55, integrated EMC filter, current production.

$3,135.00 – $5,960.31Ref. price · indicative, final on quote
Schneider Electric ATV650D11N4U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV650D11N4U key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current17 A 480 V normal duty) 14.1 A 380 V heavy duty) 12.5 A 480 V heavy duty) 19.8 A 380 V normal duty)
Nominal output current23.5 A
Continuous output current16.5 A 4 kHz heavy duty 23.5 A 4 kHz normal duty
Motor power7.5 kW heavy duty) 11 kW normal duty)
Maximum horse power rating10 hp heavy duty 15 hp normal duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV650D11N4U additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 12 UL 508C
IP degree of protectionIP55IEC 60529 IP55IEC 61800-5-1
Communication port protocolModbus TCP Modbus serial Modbus TCP
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree3
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsIEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C
MarkingCE
VariantStandard version
CategoryUS1CP4E22206
Noise level52 dB
Option cardSlot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink Slot A communication module, Profibus DP V1
Maximum THDI<48 % from 80...100 % of load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV650
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Product specific applicationProcess and utilities
Electromagnetic compatibilityRadiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation104...122 °F (40...50 °C) (with derating factor) 5...104 °F (-15...40 °C) (without derating)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

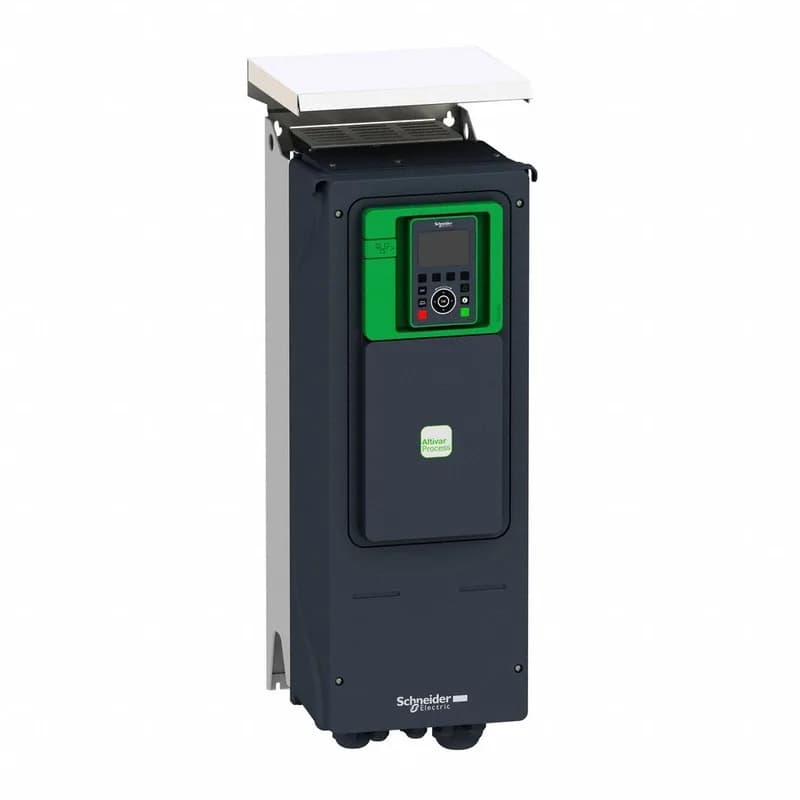

The ATV650D11N4U: Wall-mounted, IP55 enclosure that also meets UL Type 12. Forced convection cooling, noise at 52 dB. Operating position vertical ±10°, ambient humidity 5–95% non-condensing. Shock rated 15 gn, 11 ms; vibration 1 gn 13–200 Hz.

Output and control

Continuous output current 23.5 A at 4 kHz in normal duty, 16.5 A in heavy duty. Integrated adjustable PID regulator for process loops. STO (safe torque off) SIL3 included; no external safety relay needed for that function. Eight discrete inputs (two configurable as 30 kHz pulse inputs). Output frequency range 0.1–500 Hz. Line current at 480 V normal duty 17 A, heavy duty 12.5 A. Total harmonic distortion below 48% from 80–100% load per IEC 61000-3-12.
