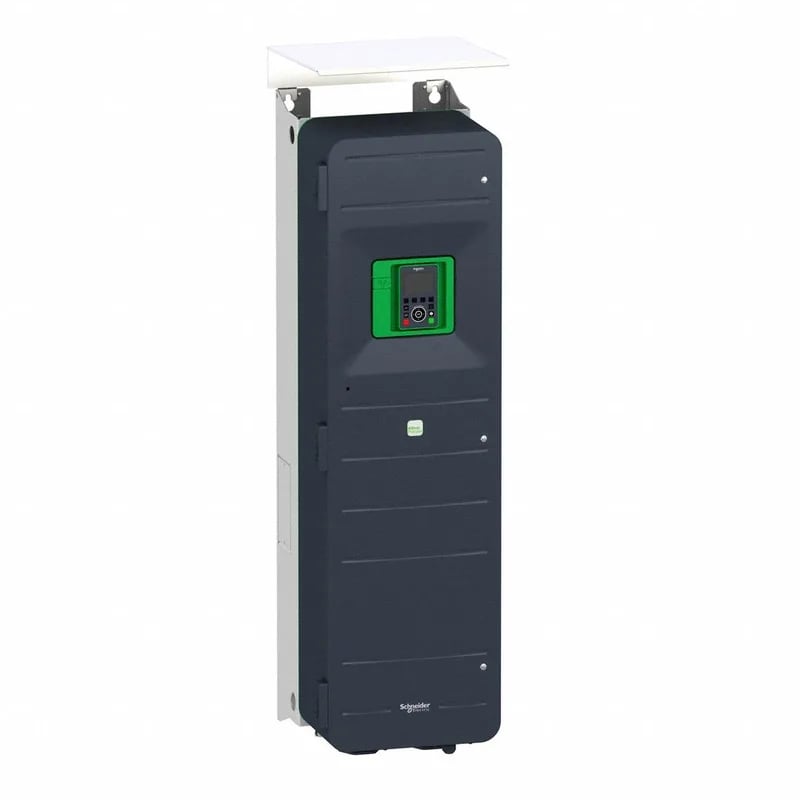

Schneider ATV650D75N4U AC Drive 100HP 480V
MPNATV650D75N4U
Active
SCHNEIDER ELECTRIC Variable Frequency Drive: 480V, 100 hp Max Output Power, 145 A Max Output Current
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Forced convection |
| Range of product | Altivar Process ATV600 |
| Discrete input type | DI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth |
| Product or component type | Variable speed drive |
| Supply voltage | 380...480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Line current | 112.7 A 480 V normal duty) 98.9 A 380 V heavy duty) 86.9 A 480 V heavy duty) 131.3 A 380 V normal duty) |
| Nominal output current | 145.0 A |
| Continuous output current | 106 A 2.5 kHz heavy duty 145 A 2.5 kHz normal duty |
| Motor power | 55 kW heavy duty) 75 kW normal duty) |
| Maximum horse power rating | 75 hp heavy duty 100 hp normal duty |
| Supply frequency | 50...60 Hz - 5...5 % |
All specifications
| Parameter | Value |
|---|---|
| Speed drive output frequency | 0.1...500 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| IP rating | UL type 12 UL 508C |
| IP degree of protection | IP55IEC 60529 IP55IEC 61800-5-1 |
| Communication port protocol | Modbus serial Ethernet |
| Mounting mode | Wall mount |
| EMC filter | Integrated 492.1 ft (150 m) IEC 61800-3 category C3 |
| Pollution degree | 3 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C |
| Marking | CE |
| Variant | Standard version |
| Category | US1CP4E22207 |
| Noise level | 69.9 dB |
| Option card | Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink Slot A communication module, Profibus DP V1 |
| Maximum THDI | <48 % from 80...100 % of load IEC 61000-3-12 |
| Regulation loop | Adjustable PID regulator |
| Safety function | STO (safe torque off) SIL 3 |
| Device short name | ATV650 |
| Operating position | Vertical +/- 10 degree |
| Product destination | Asynchronous motors Synchronous motors |
| Overvoltage category | III |
| Discrete input number | 8 |
| Product specific application | Process and utilities |
| Electromagnetic compatibility | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 104...122 °F (40...50 °C) (with derating factor) 5...104 °F (-15...40 °C) (without derating) |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
