Schneider Electric ATV650U15N4EU

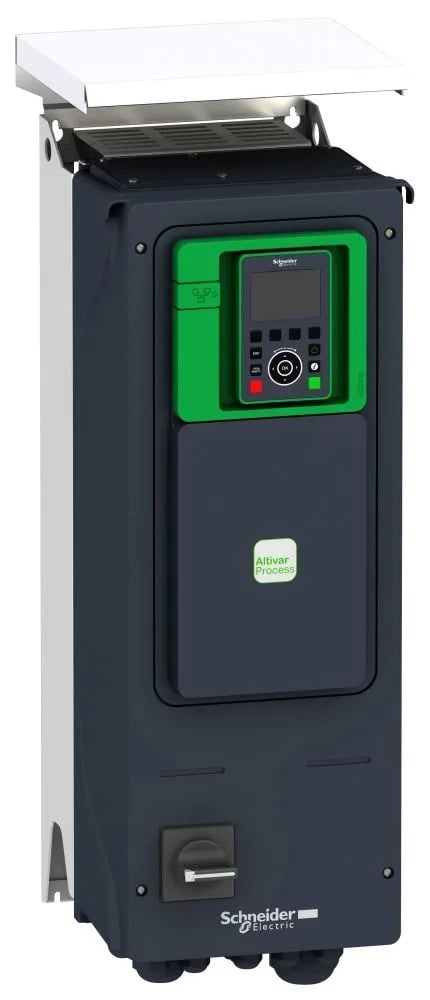

Schneider Electric ATV650U15N4EU Altivar Process Drive, 0.75

MPNATV650U15N4EU
Active

Schneider Electric Altivar Process ATV600 series, ATV650U15N4EU, 0.75 kW heavy duty / 1.5 kW normal duty, 380-480 V, IP55, with disconnect switch.

$1,885.00 – $3,014.59Ref. price · indicative, final on quote
Schneider Electric ATV650U15N4EU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV650U15N4EU key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current2.6 A 480 V normal duty) 1.7 A 380 V heavy duty) 1.5 A 480 V heavy duty) 3 A 380 V normal duty)
Nominal output current4.0 A
Continuous output current2.2 A 4 kHz heavy duty 4 A 4 kHz normal duty
Motor power0.75 kW heavy duty) 1.5 kW normal duty)
Maximum horse power rating1 hp heavy duty 2 hp normal duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV650U15N4EU additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 12 UL 508C
IP degree of protectionIP55IEC 60529 IP55IEC 61800-5-1
Communication port protocolModbus serial Modbus TCP
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree3
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsIEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 IEC 61800-3
MarkingCE
VariantWith disconnect switch
CategoryUS1CP4E22205
Noise level52 dB
Option cardSlot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink Slot A communication module, Profibus DP V1
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV650
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Product specific applicationProcess and utilities
Electromagnetic compatibilityRadiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation104...122 °F (40...50 °C) (with derating factor) 5...104 °F (-15...40 °C) (without derating)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Sourcing Reality – Active Production, No LTB Pressure

This drive includes a factory-integrated disconnect switch. The variant code in the order number confirms this.

Compliance and Documentation – What You'll Need for the File

This drive carries a dense set of IEC and EN standards: IEC 61800-3 for EMC environments 1 and 2 (category C2 and C3), IEC 61800-5-1 for safety, IEC 61508 / 13849-1 for functional safety, plus IEC 60721-3 for climatic conditions. The integrated EMC filter meets radiated and conducted limits for category C2 up to 50 m cable, and C3 up to 150 m – that's a real advantage in panel layout because you often skip the external input filter. For documentation pack, you'll want the EC Declaration of Conformity covering all the listed standards; the distributor should provide it without a fight. Pollution degree 3 (conductive pollution) means the drive is designed for industrial environments but still benefits from clean air; if your installation sees humidity above 95% RH or conductive dust, you should supplement with panel ventilation and conformal coating on terminals.

Mounting and Environment – Some Real Constraints

Wall mount only, vertical within ±10°. Shock resistance 15 gn for 11 ms, vibration 1 gn up to 200 Hz – solid for pump/fan duty but not meant for direct engine mounting on a genset skid. Noise level 52 dB – you'll hear it in a quiet control room. Supply frequency tolerance is -5 to +5% of 50/60 Hz.

Frequently asked questions

What are the key compliance documents for this drive?

The drive is CE marked and complies with IEC 61800-3 (environment 1 category C2, environment 2 category C3), IEC 61800-5-1, IEC 61508, IEC 13849-1, and IEC 60721-3. The distributor should provide an EC Declaration of Conformity covering all listed standards. Additional RoHS and REACH documentation is available from the manufacturer upon request.

Does this drive include a disconnect switch?

Yes. The variant identifier in the order code (ATV650U15N4EU, with the 'U' indicating disconnect switch) confirms that a factory-integrated disconnect switch is included. This allows a local lockout for safe maintenance without an external isolation device.

What is the heavy-duty power rating?

Under heavy duty (constant torque) the drive is rated for 0.75 kW at 2.2 A continuous output current with a 4 kHz switching frequency. Normal duty (variable torque) allows 1.5 kW at 4.0 A.
