Schneider Electric ATV650U22N4EU

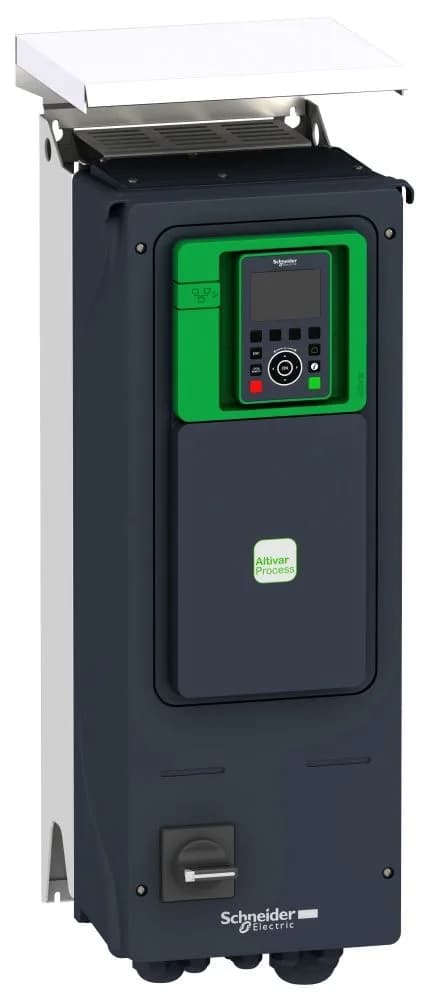

ATV650U22N4EU Altivar Process Drive, 2.2kW, IP55

MPNATV650U22N4EU
Active

Altivar Process ATV650 series, variable speed drive, 380-480 V, 2.2 kW normal duty, 5.6 A output, IP55, integrated disconnect switch.

$2,060.00 – $2,531.50Ref. price · indicative, final on quote
Schneider Electric ATV650U22N4EU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV650U22N4EU key specifications
ParameterValue
Type of coolingForced convection
Range of productAltivar Process ATV600
Discrete input typeDI7, DI8 programmable as pulse input 0...30 kHz, 24 V DC 1 MOhm 500 V DC for 1 minute to earth
Product or component typeVariable speed drive
Supply voltage380...480 V
Relative symmetric mains voltage tolerance10 %
Line current3.8 A 480 V normal duty) 3.1 A 380 V heavy duty) 2.9 A 480 V heavy duty) 4.3 A 380 V normal duty)
Nominal output current5.6 A
Continuous output current4 A 4 kHz heavy duty 5.6 A 4 kHz normal duty
Motor power1.5 kW heavy duty) 2.2 kW normal duty)
Maximum horse power rating2 hp heavy duty 3 hp normal duty
Supply frequency50...60 Hz - 5...5 %

All specifications

ATV650U22N4EU additional specifications
ParameterValue
Speed drive output frequency0.1...500 Hz
Relative symmetric network frequency tolerance5 %
IP ratingUL type 12 UL 508C
IP degree of protectionIP55IEC 60529 IP55IEC 61800-5-1
Communication port protocolEthernet Modbus TCP
Mounting modeWall mount
EMC filterIntegrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Pollution degree3
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsIEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 IEC 61800-3
MarkingCE
VariantWith disconnect switch
CategoryUS1CP4E22205
Noise level52 dB
Option cardSlot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink Slot A communication module, Profibus DP V1
Maximum THDI<48 % full load IEC 61000-3-12
Regulation loopAdjustable PID regulator
Safety functionSTO (safe torque off) SIL 3
Device short nameATV650
Operating positionVertical +/- 10 degree
Product destinationAsynchronous motors Synchronous motors
Overvoltage categoryIII
Discrete input number8
Product specific applicationProcess and utilities
Electromagnetic compatibilityRadiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation104...122 °F (40...50 °C) (with derating factor) 5...104 °F (-15...40 °C) (without derating)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

The ATV650U22N4EU is a current-production Altivar Process ATV650 variable speed drive rated for 2.2 kW normal duty (1.5 kW heavy duty) on a 380–480 V three-phase supply. Its continuous output current is 5.6 A normal duty (4 A heavy duty) at a 4 kHz switching frequency. The drive covers both asynchronous and synchronous motors. This variant includes an integrated disconnect switch, saving panel space and wiring time. The IP55 enclosure (UL type 12) and wall-mount design suit it for washdown areas and outdoor cabinets where dust and hose-directed water are present.

Onboard EMC filter supports motor cable lengths up to 50 m under IEC 61800-3 category C2 and up to 150 m under category C3. Safety torque off (STO) is built in at SIL 3, meeting IEC 61800-5-2. No external safety relay is needed for controlled stop in most automation cells. The drive also carries standard EMC immunity levels per IEC 61000-4 (level 3 for radiated/conducted, level 4 for fast transient).

Communication is via onboard Ethernet Modbus TCP. Slot A accepts option cards for PROFINET, DeviceNet, EtherNet/IP, CANopen, or Profibus DP. Two slots (A and B) allow a relay extension or I/O expansion alongside a fieldbus card. The terminal block provides 8 digital inputs, with two configurable as high-speed pulse inputs up to 30 kHz. Mount vertically within ±10°. Derate current above 1000 m altitude (1 % per 100 m). Forced convection cooling — leave clearance around the ventilation grilles.

Frequently asked questions

What is the integrated disconnect switch variant?

This order code includes a built-in disconnect switch, eliminating the need for a separate panel-mounted disconnect during installation.

What EMC cable lengths does the drive support without an external filter?

The integrated filter covers motor cables up to 50 m under category C2 and up to 150 m under category C3.

What safety function does the drive include?

Safe Torque Off (STO) rated at SIL 3 per IEC 61800-5-2 is integrated, enabling a controlled stop without external safety hardware.
