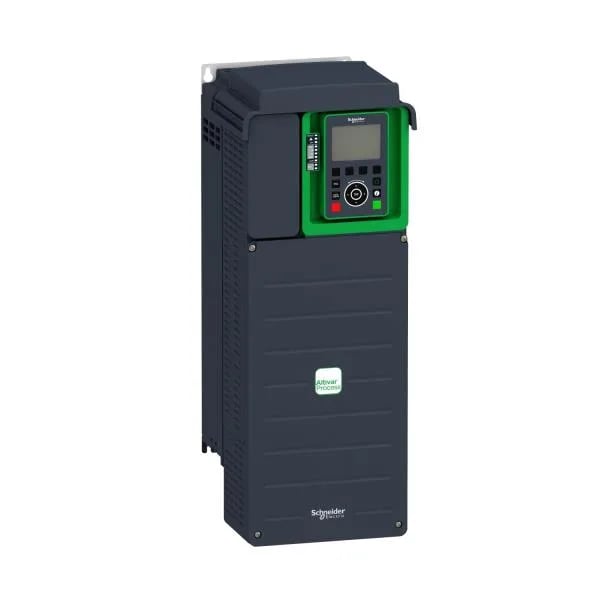

Schneider Electric ATV930D11M3

Schneider ATV930D11M3 Altivar Process Drive, 11 kW ND, 3-pha

MPNATV930D11M3
Active

Schneider Altivar Process ATV900, ATV930D11M3, variable speed drive, 11 kW normal duty, 7.5 kW heavy duty, 200-240 V 3-phase, braking chopper, IP21.

$1,291.59Ref. price · indicative, final on quote
Schneider Electric ATV930D11M3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

ATV930D11M3 key specifications
ParameterValue
Range of productAltivar Process ATV900
Type of polarizationNo impedance
Product or component typeVariable speed drive
Supply voltage200...240 V
Relative symmetric mains voltage tolerance10 %
Nominal output current46.8 A
Continuous output current46.8 A 4 kHz normal duty 32.7 A 4 kHz heavy duty
Motor power11.0 kW normal duty 7.5 kW heavy duty
Relative symmetric network frequency tolerance5 %
Phases3 phase
IP ratingUL type 1
IP degree of protectionIP21

All specifications

ATV930D11M3 additional specifications
ParameterValue
Communication port protocolModbus TCP Modbus serial EtherNet/IP
Mounting modeWall mount
Electrical connectionControl screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 10...16 mm² AWG 8...AWG 6 DC bus screw terminal 10...16 mm² AWG 8...AWG 6 Motor screw terminal 16 mm² AWG 6
EMC filterIntegrated With EMC plate option
Pollution degree2
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3
Operating altitude1000...4800 m with current derating 1 % per 100 m
Vibration resistance1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
StandardsUL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
SupplyExternal supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth
MarkingCE
VariantStandard version With braking chopper
CategoryUS1CP4E22276
Data format8 bits, configurable odd, even or no parity
Noise level59.5 dB
Maximum THDI<48 % from 80...100 % of load IEC 61000-3-12
Exchange modeHalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Option moduleSlot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Assembly styleEnclosed
Regulation loopAdjustable PID regulator
Transmission rate10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s
Device applicationIndustrial Application
Operating positionVertical +/- 10 degree
Number of addresses1...247
Product destinationSynchronous motors Asynchronous motors
Overvoltage categoryIII
Volume of cooling air56798.008 Gal/hr(US) (215 m3/h)
Environmental characteristicChemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3
Product specific applicationProcess for industrial
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Ambient air transport temperature-40...158 °F (-40...70 °C)
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor)
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz

Product details

Sourcing and compliance paperwork

Compliance documentation covers UL 508C and multiple IEC standards including 61800-5-1 and 61800-3. The US category code US1CP4E22276 appears on the nameplate, which helps customs clearance for shipments into the US. The CE marking is on the drive itself, and the standards list covers most industrial applications across North America and Europe.

Mounting and communication options

Wall-mount form factor with IP21 / UL Type 1 protection suits indoor panel installations. Forced-air cooling requires 215 m3/h (56798.008 Gal/hr(US)) minimum airflow — ensure the enclosure has adequate ventilation or a fan. Operating position vertical +/- 10 degree. Communication is handled via Modbus TCP, EtherNet/IP, and serial Modbus on the base unit. Slot A accepts a communication module for PROFIBUS, PROFINET, EtherCAT, or CANopen, and there are additional slots for digital/analog I/O extension or encoder feedback modules. The backplane supplies 24 V DC internally for digital inputs and STO (21-27 V), with a separate 10.5 V DC for a potentiometer reference. Control wiring uses screw terminals handling 0.5 to 1.5 mm² (AWG 20-16). Power terminals on the line, DC bus, and motor side accept up to 16 mm² (AWG 6). Strip lengths follow standard practice; no special crimping tools needed beyond the usual for this gauge.

Frequently asked questions

What phase and voltage does ATV930D11M3 support?

It is a 3-phase drive rated for a supply voltage of 200 to 240 V.

What internal power supplies does the drive provide?

It provides an external 24 V DC supply for digital inputs (19-30 V range), an internal 10.5 V DC supply for a reference potentiometer (1 to 10 kΩ), and an internal 24 V DC supply for digital inputs and STO (21-27 V).

What compliance certifications does ATV930D11M3 carry?

The drive is UL 508C and IEC 61800-3 / IEC 61800-5-1 certified, among other IEC standards. It also carries CE marking and the US category code US1CP4E22276.
