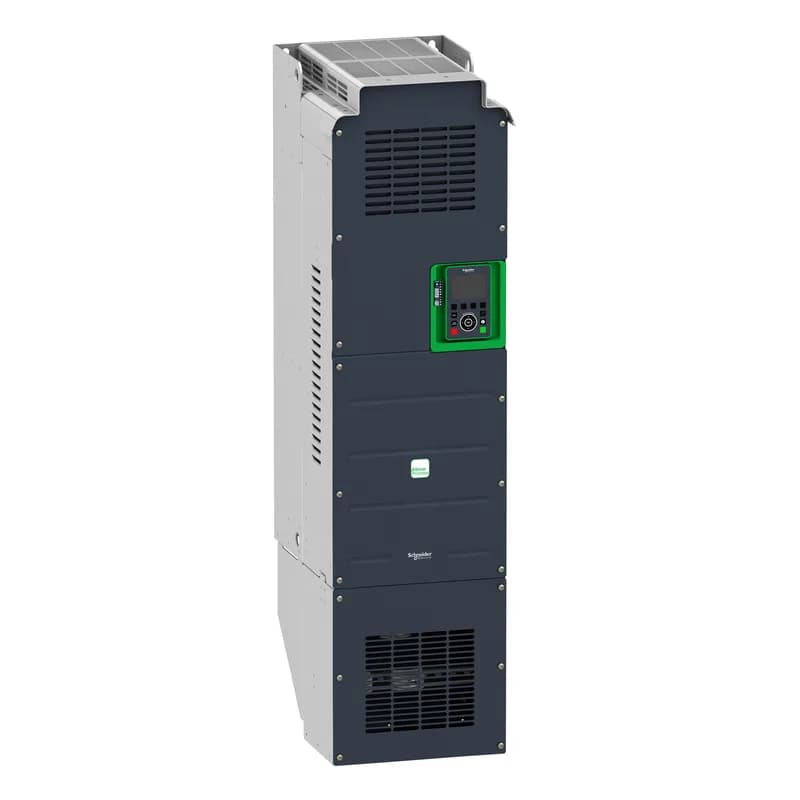

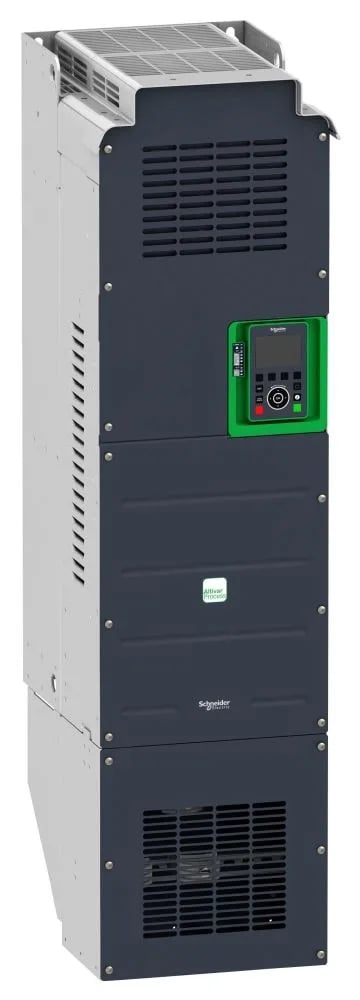

Schneider ATV930D55M3C Square D Daisy Chain Conn. — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | Altivar Process ATV900 |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Supply voltage | 200...240 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Nominal output current | 211.0 A |
| Continuous output current | 211 A 2.5 kHz normal duty 176 A 2.5 kHz heavy duty |
| Motor power | 55.0 kW normal duty 45.0 kW heavy duty |
| Relative symmetric network frequency tolerance | 5 % |
| Phases | 3 phase |
| IP rating | UL type 1 |
| IP degree of protection | IP21 |
| Parameter | Value |
|---|---|
| Communication port protocol | Modbus TCP Modbus serial EtherNet/IP |
| Mounting mode | Wall mount |
| Electrical connection | Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil Motor screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil DC bus screw terminal 2 x 70...3 x 120 mm² AWG 2/0...300 kcmil |
| EMC filter | Integrated With EMC plate option |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m |
| Vibration resistance | 1.5 mm peak to peak (f= 2...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Standards | UL 508C IEC 61800-3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
| Supply | External supply for digital inputs 24 V DC 19...30 V), Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, Internal supply for digital inputs and STO 24 V DC 21...27 V), 1 MOhm 500 V DC for 1 minute to earth |
| Marking | CE |
| Variant | Without braking chopper Standard version |
| Category | US1CP4E22277 |
| Data format | 8 bits, configurable odd, even or no parity |
| Noise level | 69.9 dB |
| Maximum THDI | <48 % full load IEC 61000-3-12 |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Option module | Slot A communication module Profibus DP V1 Slot A communication module PROFINET Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink |
| Assembly style | Enclosed |
| Regulation loop | Adjustable PID regulator |
| Transmission rate | 10, 100 Mbits 4.8 kbps 9600 bit/s 19200 bit/s |
| Device application | Industrial Application |
| Operating position | Vertical +/- 10 degree |
| Number of addresses | 1...247 |
| Product destination | Synchronous motors Asynchronous motors |
| Overvoltage category | III |
| Volume of cooling air | 158506.07 Gal/hr(US) (600 m3/h) |
| Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3 Dust pollution resistance class 3S3 IEC 60721-3-3 |
| Product specific application | Process for industrial |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Ambient air transport temperature | -40...158 °F (-40...70 °C) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...122 °F (-15...50 °C) (without derating) 122...140 °F (50...60 °C) (with derating factor) |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3 |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
The ATV930D55M3C is a Schneider Altivar Process ATV900 drive rated 55.0 kW normal duty and 45.0 kW heavy duty on a 3-phase 200 V supply, built for industrial motor control with integrated Modbus TCP and EtherNet/IP. It carries CE marking and complies with UL 508C and IEC 61800 series standards; the IP21 enclosure suits clean indoor environments.
